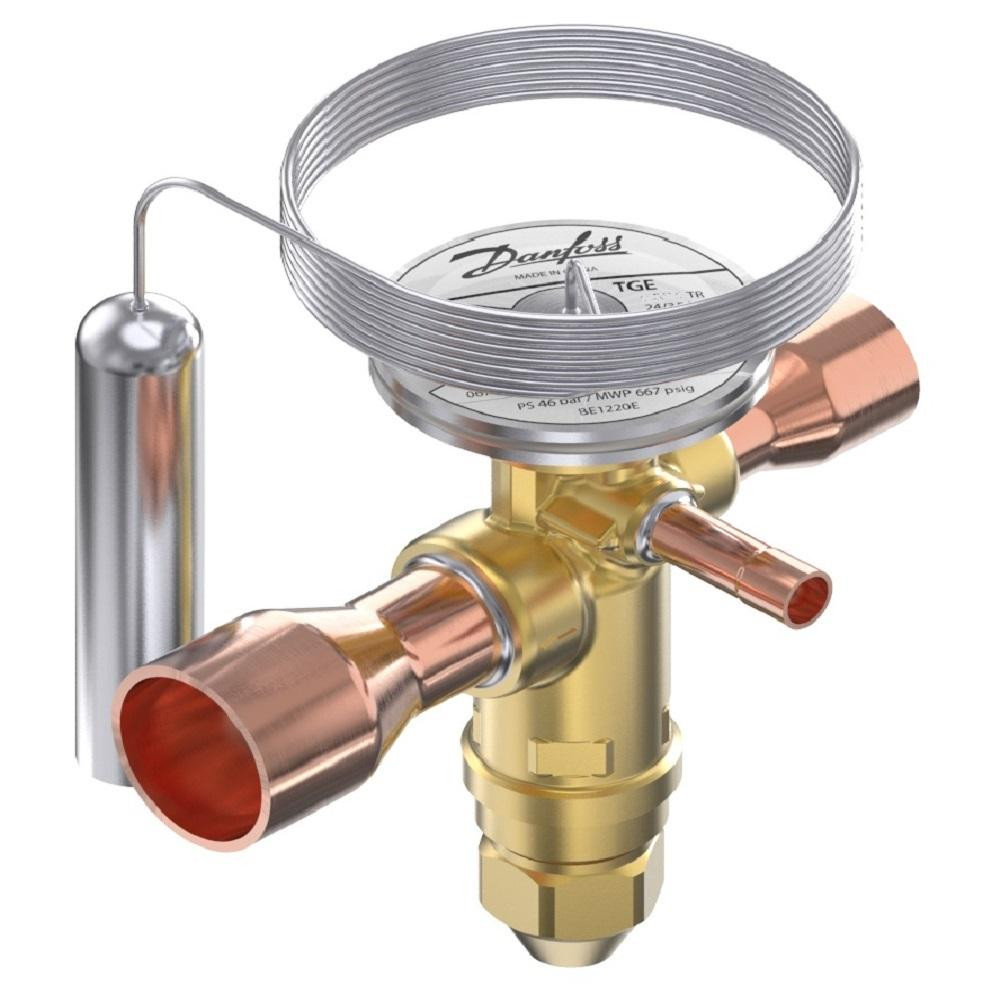

Danfoss 067N6162 13TR Thermostatic expansion valve, TGE, R404A,R507A, 7/8x1 1/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -40 to 50 F, replaces 067N6160
$145.95
Danfoss 067N6162 13TR Thermostatic expansion valve, TGE, R404A,R507A, 7/8x1 1/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -40 to 50 F, replaces 067N6160
SKU
G067N6162
Danfoss 067N6162 13TR Thermostatic expansion valve, TGE, R404A,R507A, 7/8x1 1/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -40 to 50 F, replaces 067N6160
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +210F
Replaces: EBSSE-13, OSE-12, HFES-13S, TRAE-12S, 067N6162
Weight : 1.1 LBR
Volume : 0.04196506 FTQ
Model : 067N6162
UPC-EAN : 5702428143493
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +210F
Replaces: EBSSE-13, OSE-12, HFES-13S, TRAE-12S, 067N6162
Weight : 1.1 LBR
Volume : 0.04196506 FTQ
Model : 067N6162
UPC-EAN : 5702428143493
G067N6162
New
Data sheet
- Product Feature
- Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
- Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
- Maximum Operating Temperature +210F
- Replaces: EBSSE-13, OSE-12, HFES-13S, TRAE-12S, 067N6162
- Straightway flow. Adjustable superheat setting. UL Certified
- Weight
- 1.1 LBR
- Volume
- 0.04196506 FTQ
- Model
- 067N6162
- UPC-EAN
- 5702428143493
