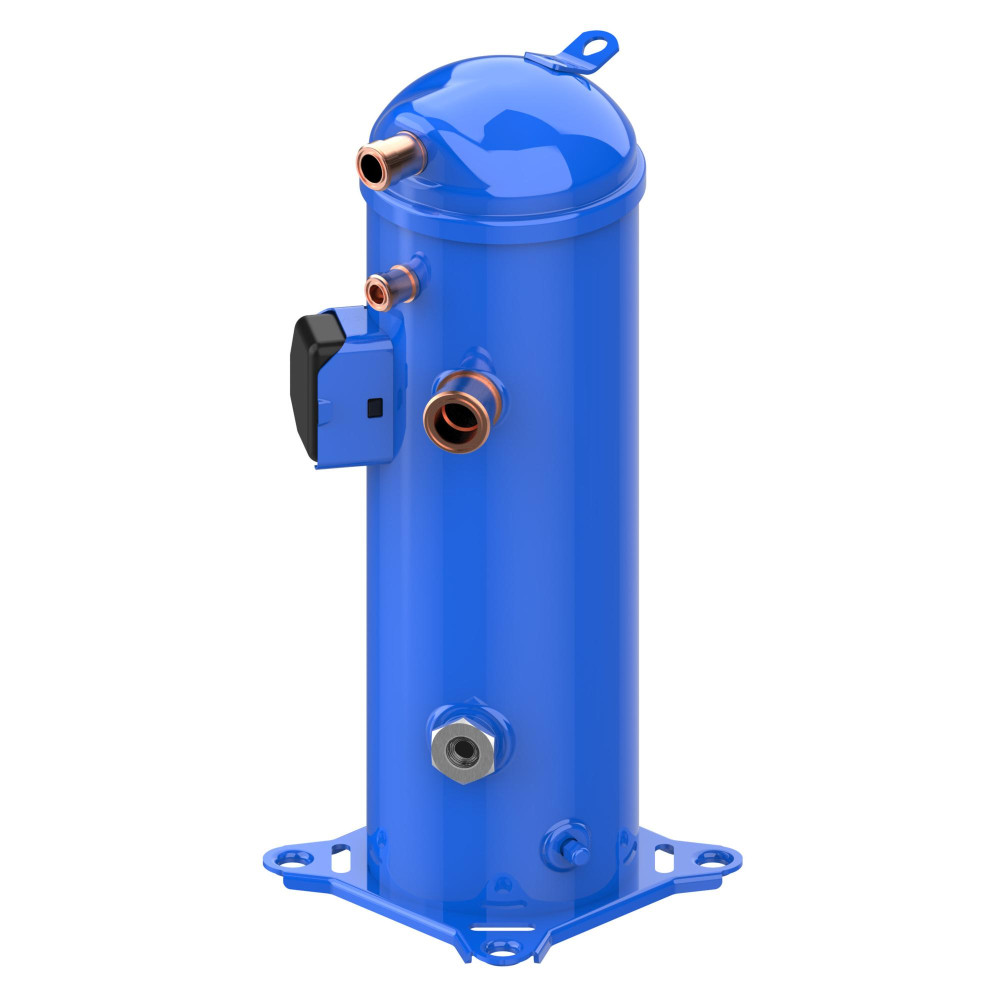

Danfoss LLZ034T2LQ9C 10 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9553, 121L9552, 121L9061
$2,683.70
Price per Each
Price per Each
Danfoss LLZ034T2LQ9C 10 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9553, 121L9552, 121L9061
SKU
G0315.LLZ034T2
Danfoss LLZ034T2LQ9C 10 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9553, 121L9552, 121L9061
Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9552
Weight : 120.0 LBR
Model : 121L9553
Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9552
Weight : 120.0 LBR
Model : 121L9553
G0315.LLZ034T2
New
Data sheet
- Product Feature
- Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
- LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
- Multiple Refrigerant Applications. Replaces various models 121L9552
- The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
- Use: Designed for Commercial Refrigeration Applications
- Weight
- 120.0 LBR
- Model
- 121L9553
