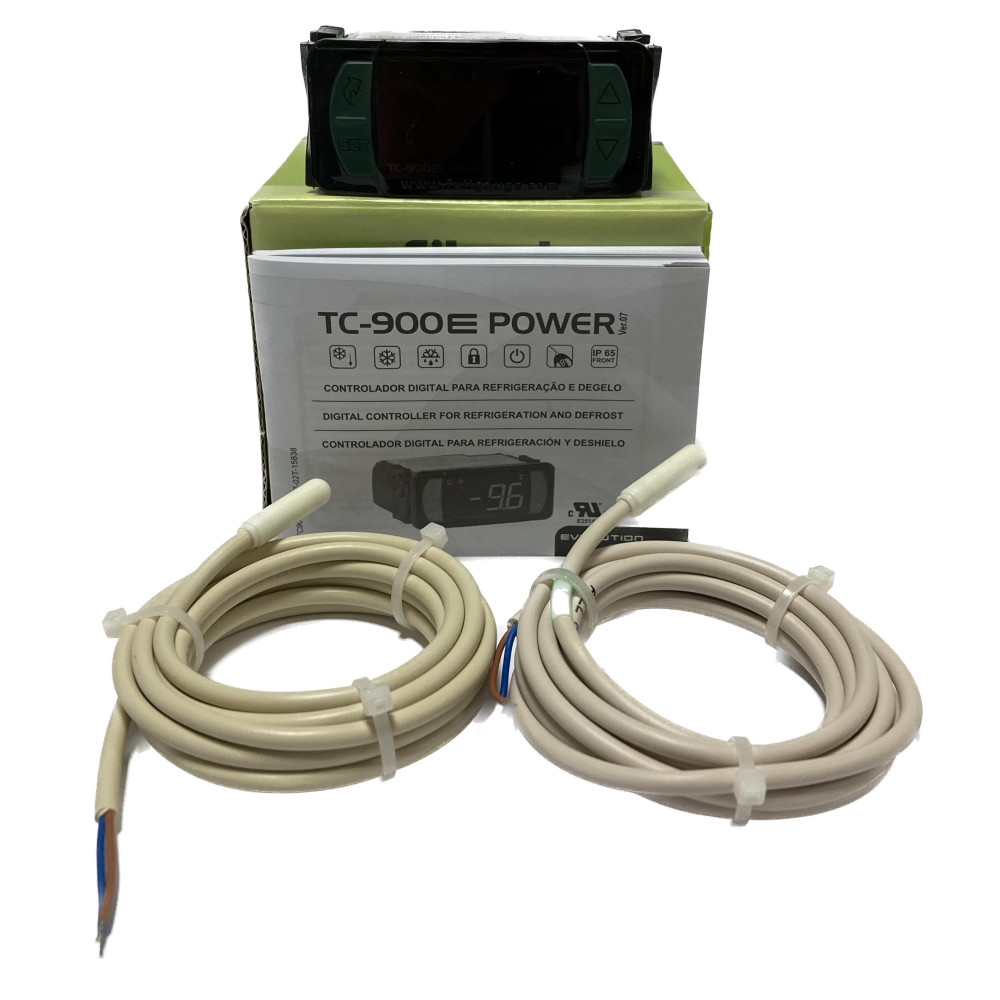

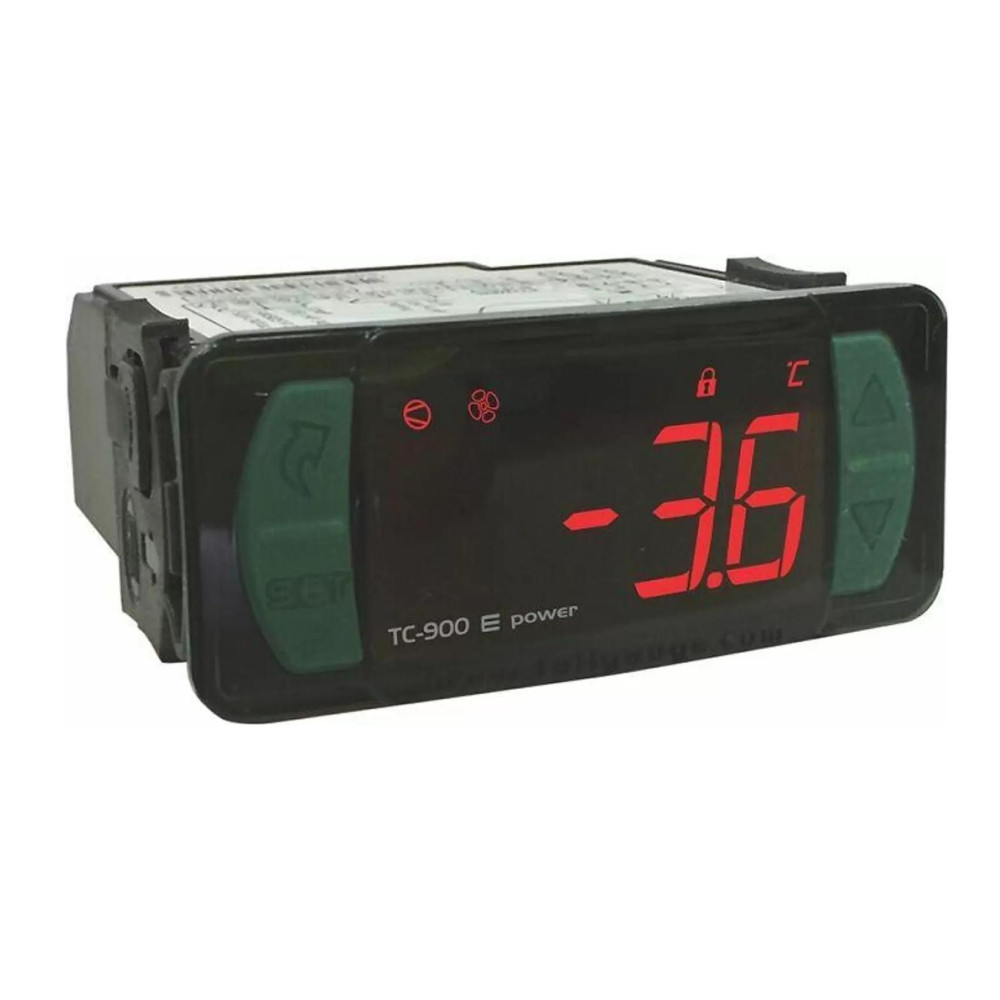

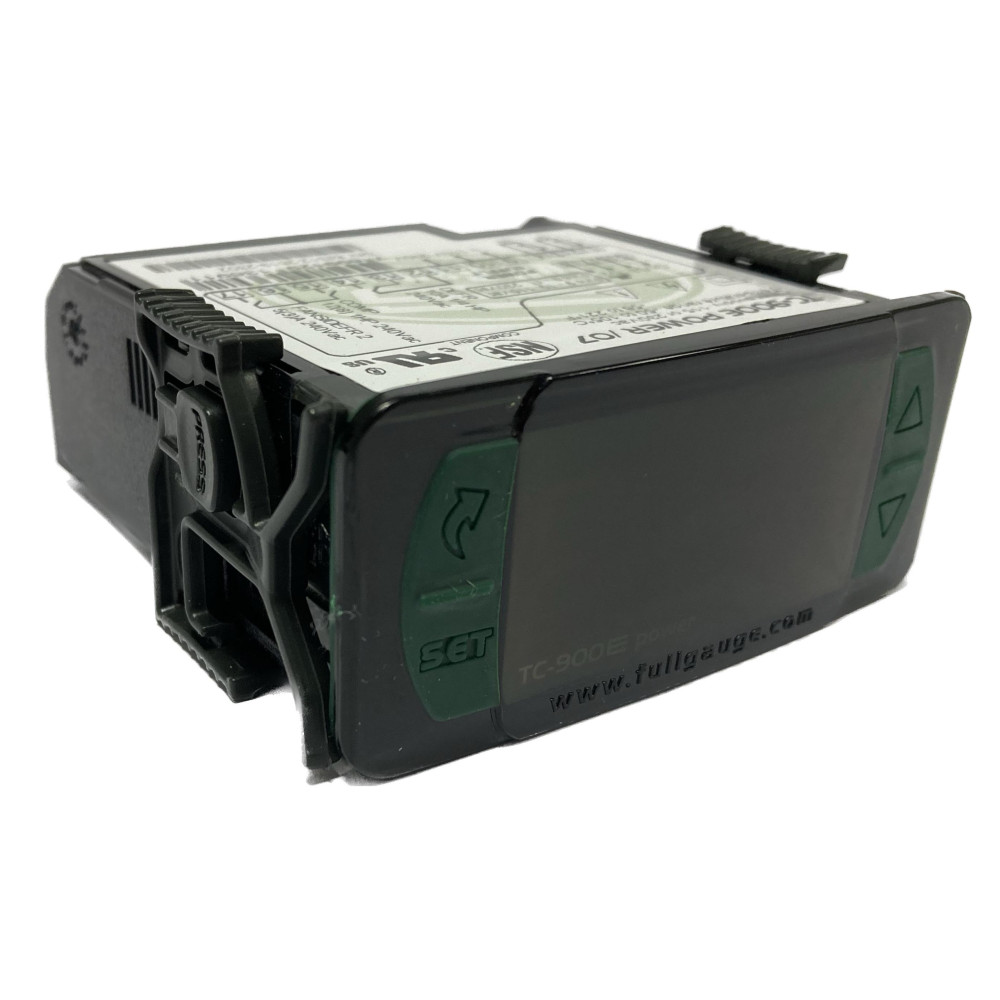

Full Gauge TC-900E Power Electronic Freeze Control 2 Sensors, 3 Outlets, 1 Digital Inlet, Internal Buzzer 110V/220V
Full Gauge TC-900E Power Electronic Freeze Control 2 Sensors, 3 Outlets, 1 Digital Inlet, Internal Buzzer 110V/220V
Application: walk-in and display freezers

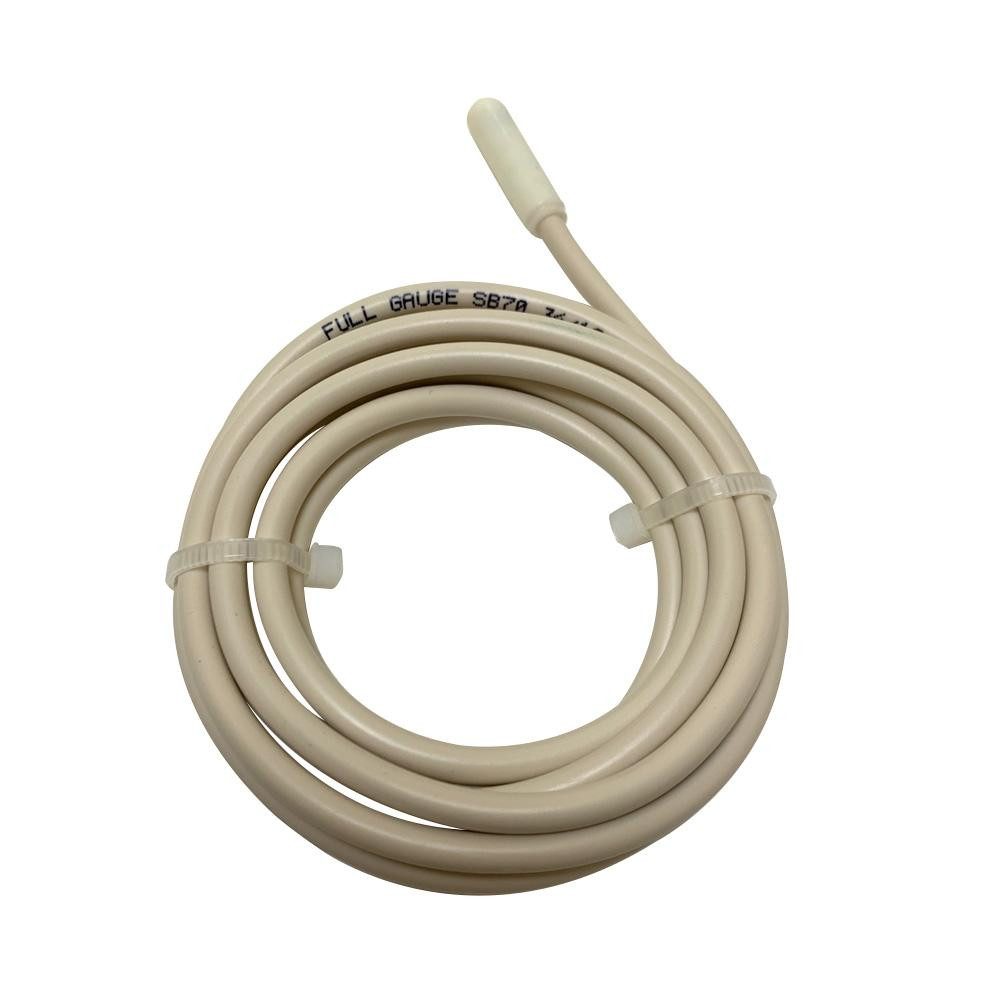

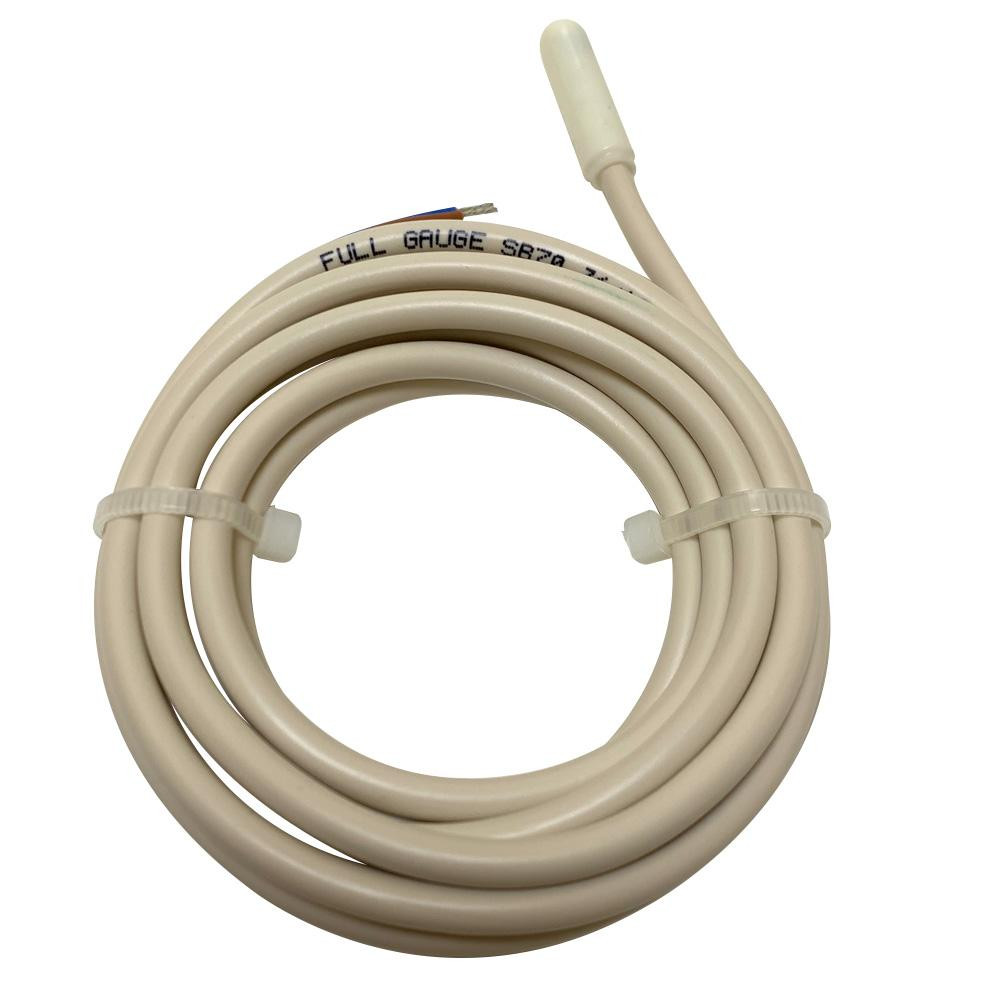

For Frozen Goods, It Automates The Defrosting Process According To The Needs Of The Facility (Intelligent Defrosting). It Operates With Two Sensors, One For Room Temperature And The Other, Fastened To The Evaporator, That Controls Defrosti
The Room Temperature Control Has A Normal Setpoint And An Economy Setpoint, In Addition To The Fast Freezing Functionali
It Features Up To Two Digital Inputs. One Of These Inputs May Be Configured As Sensor 3 To Monitor The Condenser Tempera
Its 16-Amp Relay Output Can Control Compressors Of Up To 1 Hp And The Defrost Output Has A Current Capacity Of 10 Amp. T
Volume : 0.024 FTQ
Weight : 0.9 LBR
Model : TC-900E Power
UPC-EAN : 7899129135464
DIGITAL CONTROLLER FOR REFRIGERATION AND DEFROST
For frozen products, it automates the defrost processes according to the need of installation (smart defrost). The ambient temperature control has a normal setpoint and an economic setpoint, apart from the fast freezing function and alarm functions indicating open door. Its output relay directly controls compressors of up to 1HPand its defrost output has a current capacity of 10A. It also features a digital filter, intended to simulate a mass increase in the ambient sensor (S1), thus increasing its response time (thermal inertia) and avoiding unnecessary drives of the compressor. It also includes a smart key, lock system and a control functions shutdown mode. To drive inductive loads (motors and pumps) of up to 2HP, use the TC-900e2HP. Product complies with ULInc. (United States and Canada) and NSF (United States).

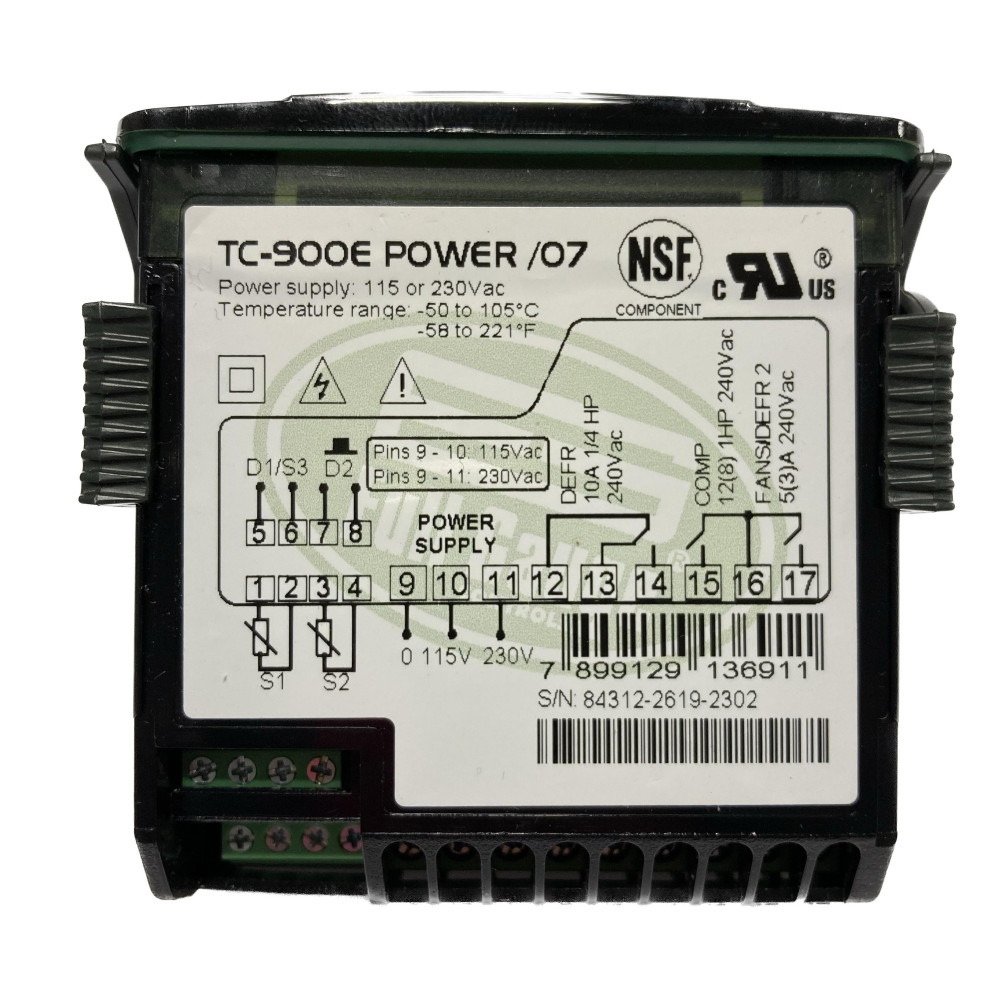

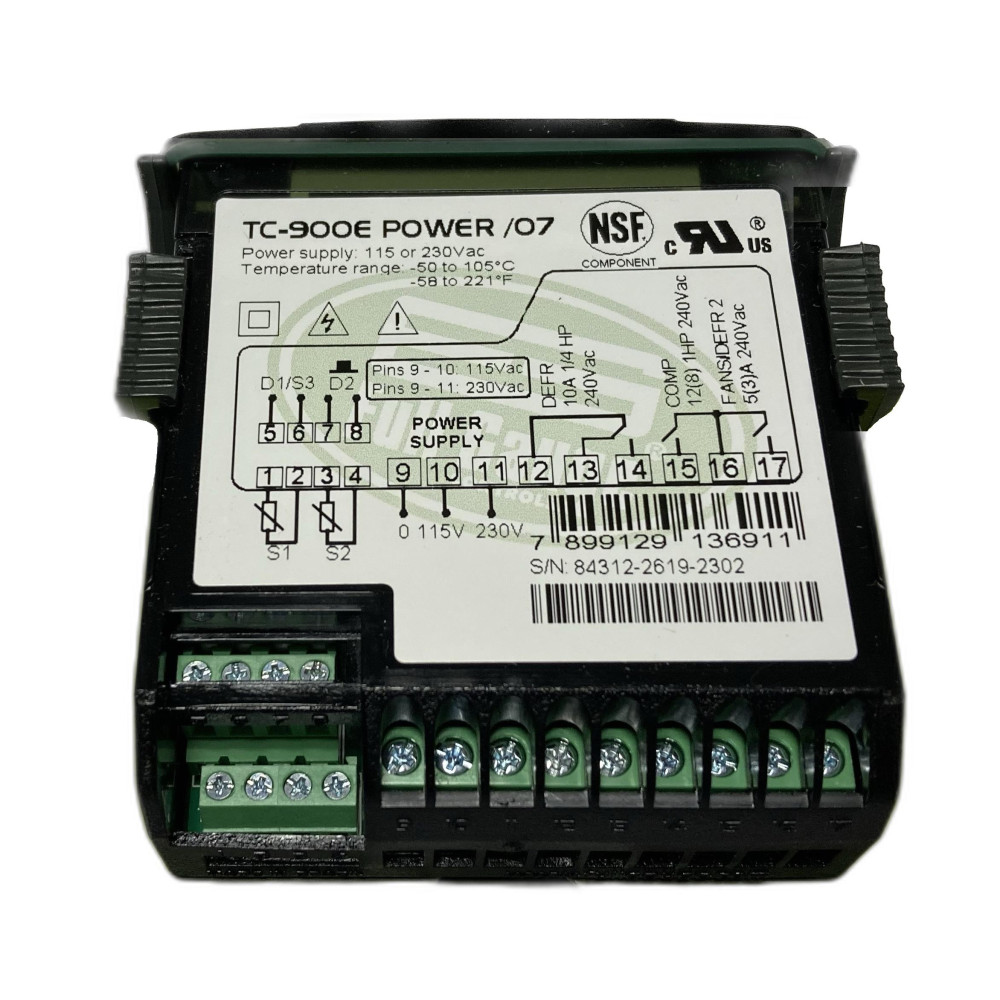

Technical Specifications:
Power supply: 115 or 230 Vac ±10% (50/60 Hz)
Control temperature: -58F to 221F (-50C to 105C)
Operating temperature: 32F to 122F (0C to 50C)
Operating humidity: 10 to 85% RH (without condensation)
Load current (outputs):
COMP: 12(8)A / 240Vac 1HP
DEFR: 10A / 240Vac 2400W
FANS: 5(3)A / 240Vac
Data sheet
- Product Feature
- Application: walk-in and display freezers
- For Frozen Goods, It Automates The Defrosting Process According To The Needs Of The Facility (Intelligent Defrosting). It Operates With Two Sensors, One For Room Temperature And The Other, Fastened To The Evaporator, That Controls Defrosti
- It Features Up To Two Digital Inputs. One Of These Inputs May Be Configured As Sensor 3 To Monitor The Condenser Tempera
- Its 16-Amp Relay Output Can Control Compressors Of Up To 1 Hp And The Defrost Output Has A Current Capacity Of 10 Amp. T
- The Room Temperature Control Has A Normal Setpoint And An Economy Setpoint, In Addition To The Fast Freezing Functionali
- Weight
- 0.9 LBR
- Volume
- 0.024 FTQ
- Model
- TC-900E Power
- UPC-EAN
- 7899129135464
