US Motors T34S2A 0.75 Hp, 208-230/460 V, 60 Hz, 1 Ph, 1725 rpm, 4 poles, 1 shaft, 1 speed, TEFC, Reversible
$373.00
Price per Each
Price per Each
US Motors T34S2A 0.75 Hp, 208-230/460 V, 60 Hz, 1 Ph, 1725 rpm, 4 poles, 1 shaft, 1 speed, TEFC, Reversible
SKU
GT34S2A
US Motors T34S2A 0.75 Hp, 208-230/460 V, 60 Hz, 1 Ph, 1725 rpm, 4 poles, 1 shaft, 1 speed, TEFC, Reversible
Model: P063FWT4375015B
Rolled Steel Frame. Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Shaft Slinger On Pulley End. 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
Sine Wave Power. Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Weight : 35.0 LBR
Model : T34S2A
Model: P063FWT4375015B
Rolled Steel Frame. Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Shaft Slinger On Pulley End. 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
Sine Wave Power. Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Weight : 35.0 LBR
Model : T34S2A
GT34S2A
New

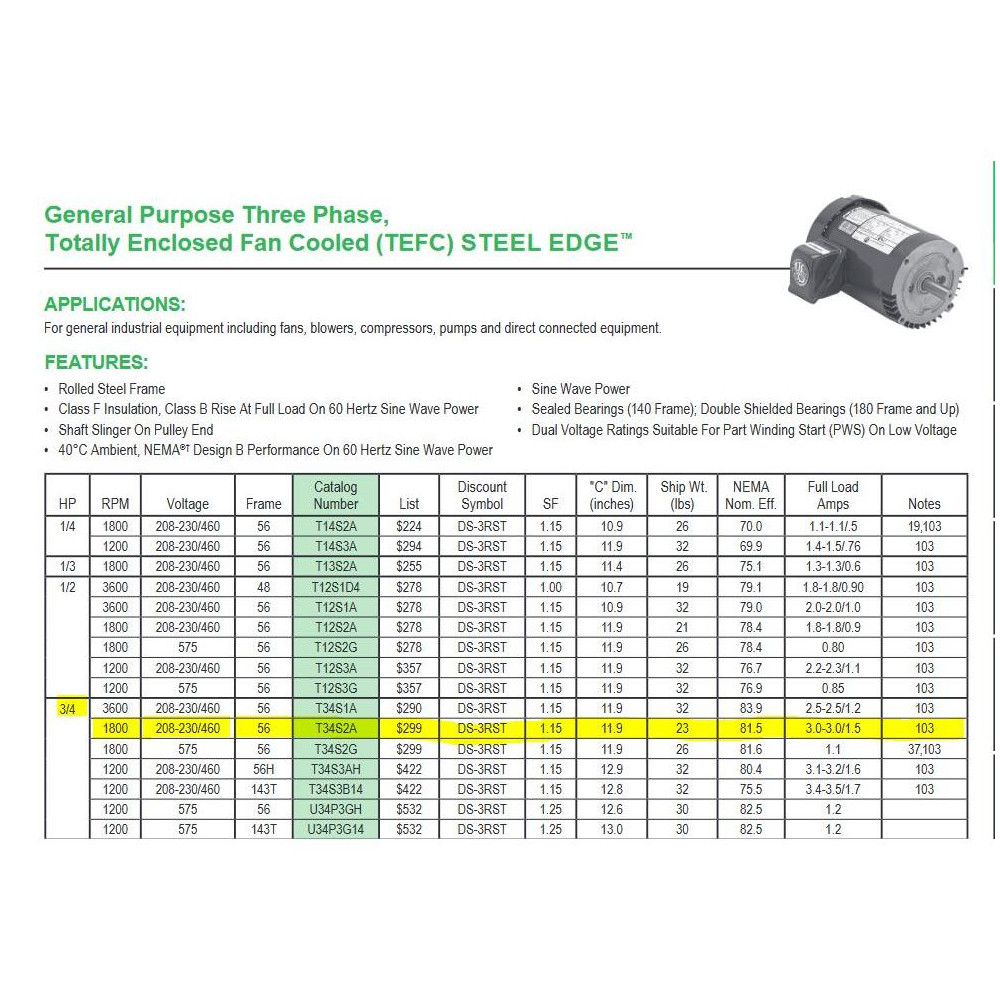

Data sheet
- Product Feature
- Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
- Model: P063FWT4375015B
- Rolled Steel Frame. Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
- Shaft Slinger On Pulley End. 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
- Sine Wave Power. Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
- Weight
- 35.0 LBR
- Model
- T34S2A
