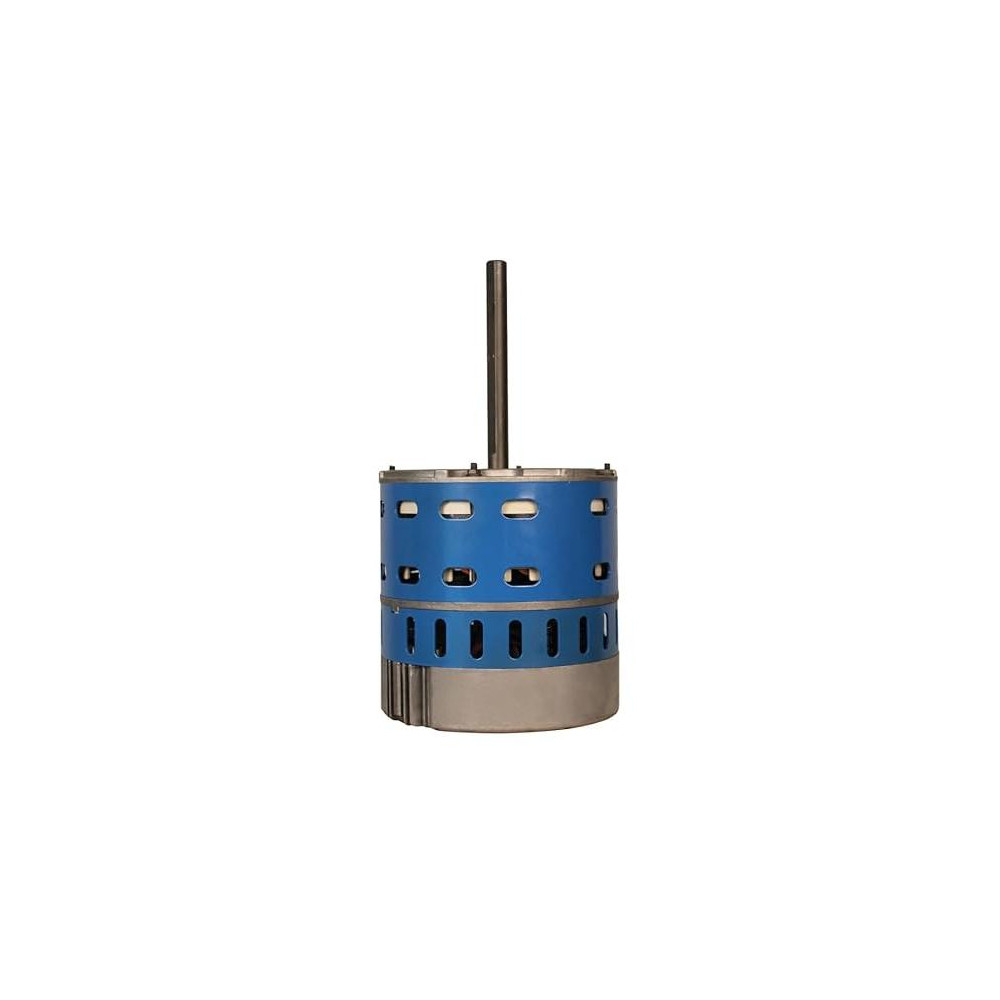

MARS 10857 Blower Fan Motor Multi-Horsepower 1/2 -1 HP ECM Replacement, 115, 230 VAC, 5.5 in, Frame 48, Reversible Rotation, Direct Drive, Variable Speed, Constant Torque
zure connects directly to OEM harnesses; additional module or adapter is not required
Replaces 16 Pin OEM Variable Speed ECM, PWM, 2.0, 2.3, 2.5 EON; and Evergreen VS, Rescue EZ16 Replaces Many 4 Pin OEM Variable Speed ECM 3.0; and Evergreen VS Replaces Constant Torque X13, Endura Pro, SelecTech; and Evergreen EM, Rescue EZ13
4 speeds plus 625 RPM constant fan mode
High efficiency 85. Multi-horsepower, dual voltage. Belly band mount
Volume : 0.5 FTQ

Weight : 15.0 LBR
Model : 10465

Azure VS 1/2 to 1HP D/D Motor Type ECM Enclosure OAO H.P. (Max.) 1 Voltage 120/240 Multi-Rated H.P. 1/2-1 Speeds 5 Hz 50/60 Rotation REV+FWD RPM Range 1075 Variable NEMA Frame Size 48 Phase Single Standards CUL FLA 11.5/7.0 Mount Belly Band Bearing Ball Shaft Length Inches 4.94 Shaft Dia Inches 1/2 Thermal Protection REDUNDANT Electronic Control CIRCUITS Ambient Deg C 55 NOTE Bluetooth Control - AZURE ECM App Ins. Class B Capacitor Included No Replaces Variable Speed ECM and Constant Torque Motor Type ECM Enclosure OAO H.P. (Max.) 1 Voltage 120/240 Multi-Rated H.P. 1/2-1 Speeds 5 Hz 50/60 Rotation REV+FWD RPM Range 1075 Variable NEMA Frame Size 48 Phase Single Standards CUL FLA 11.5/7.0 Mount Belly Band Bearing Ball Shaft Length Inches 4.94 Shaft Dia Inches 1/2 Thermal Protection REDUNDANT Electronic Control CIRCUITS Ambient Deg C 55 NOTE Bluetooth Control - AZURE ECM App Ins. Class B Capacitor Included No Replaces Variable Speed ECM and Constant Torque
