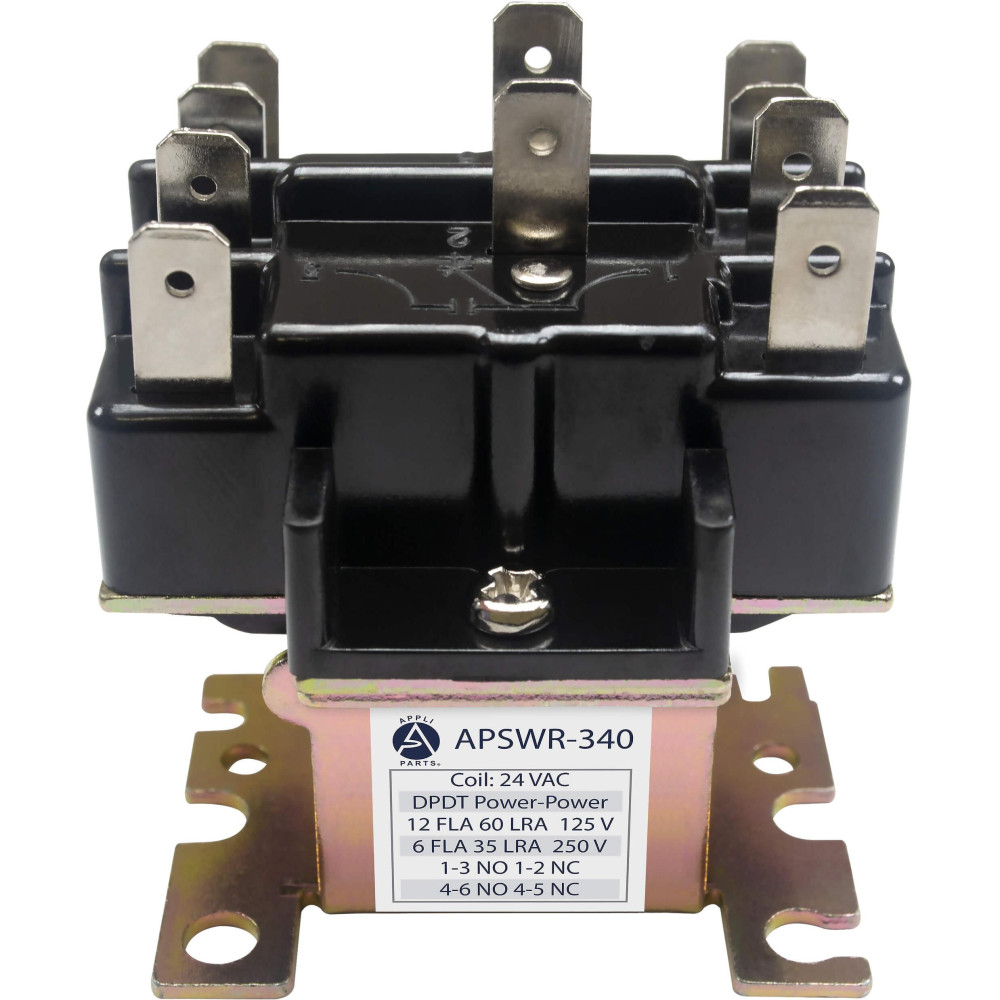

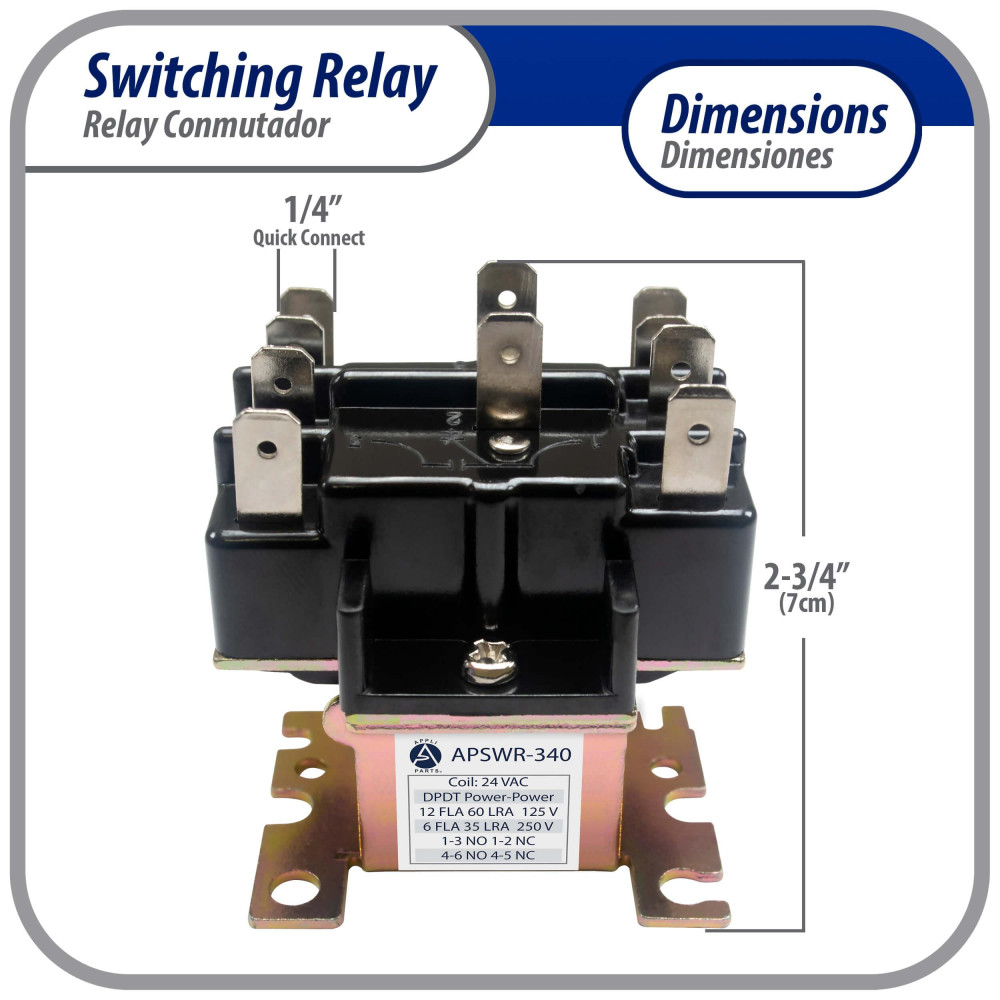

Appli Parts APSWR-340 90-340,24 VAC Coil, General Purpose Switching Relay,DPDT, for HVAC applications and other general electrical installations replaces APSR-340
Appli Parts APSWR-340 90-340,24 VAC Coil, General Purpose Switching Relay,DPDT, for HVAC applications and other general electrical installations replaces APSR-340
Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications

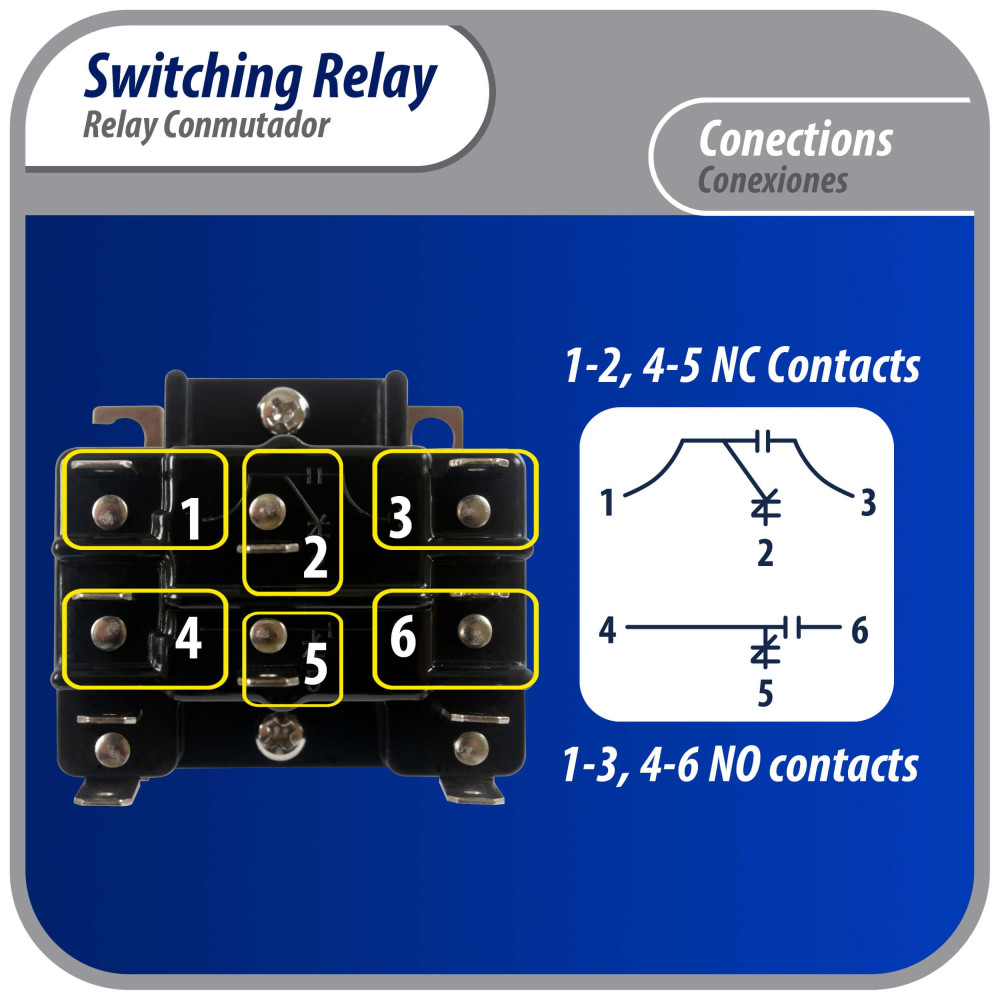

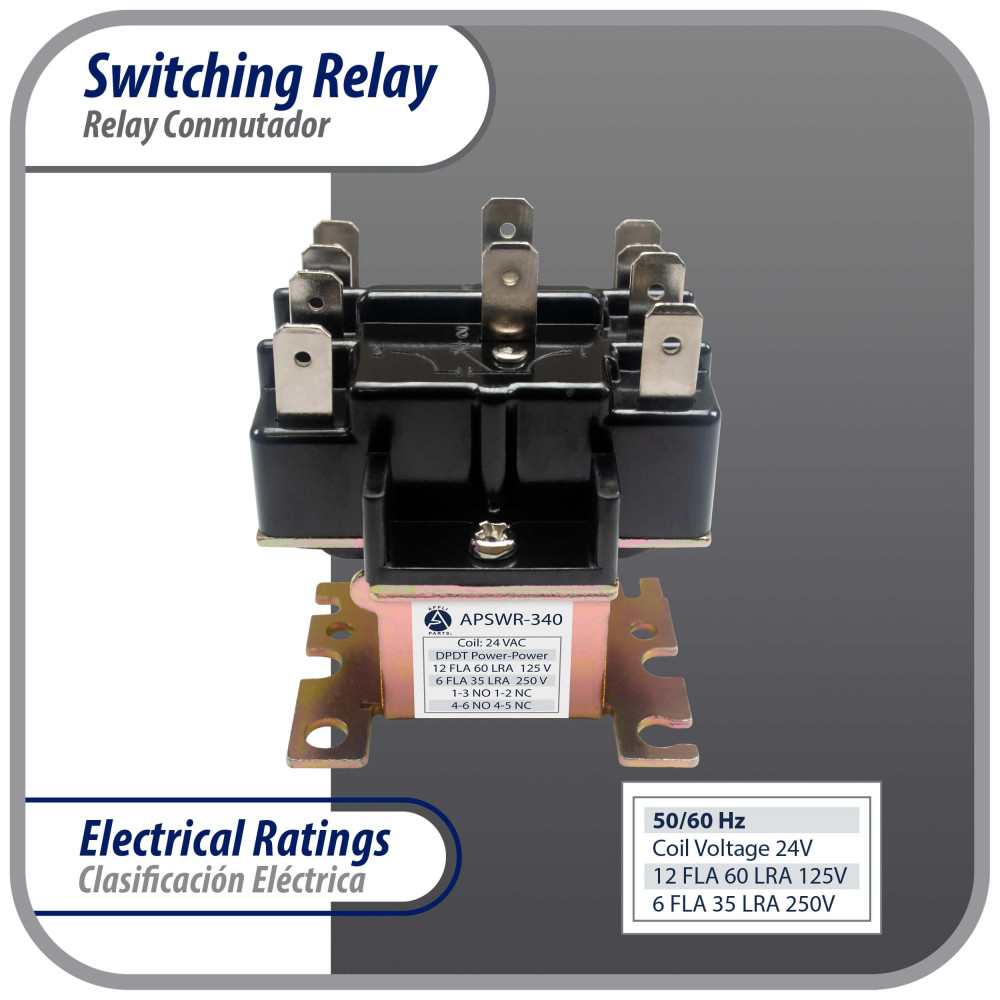

Details: Coil Voltage is 24 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V

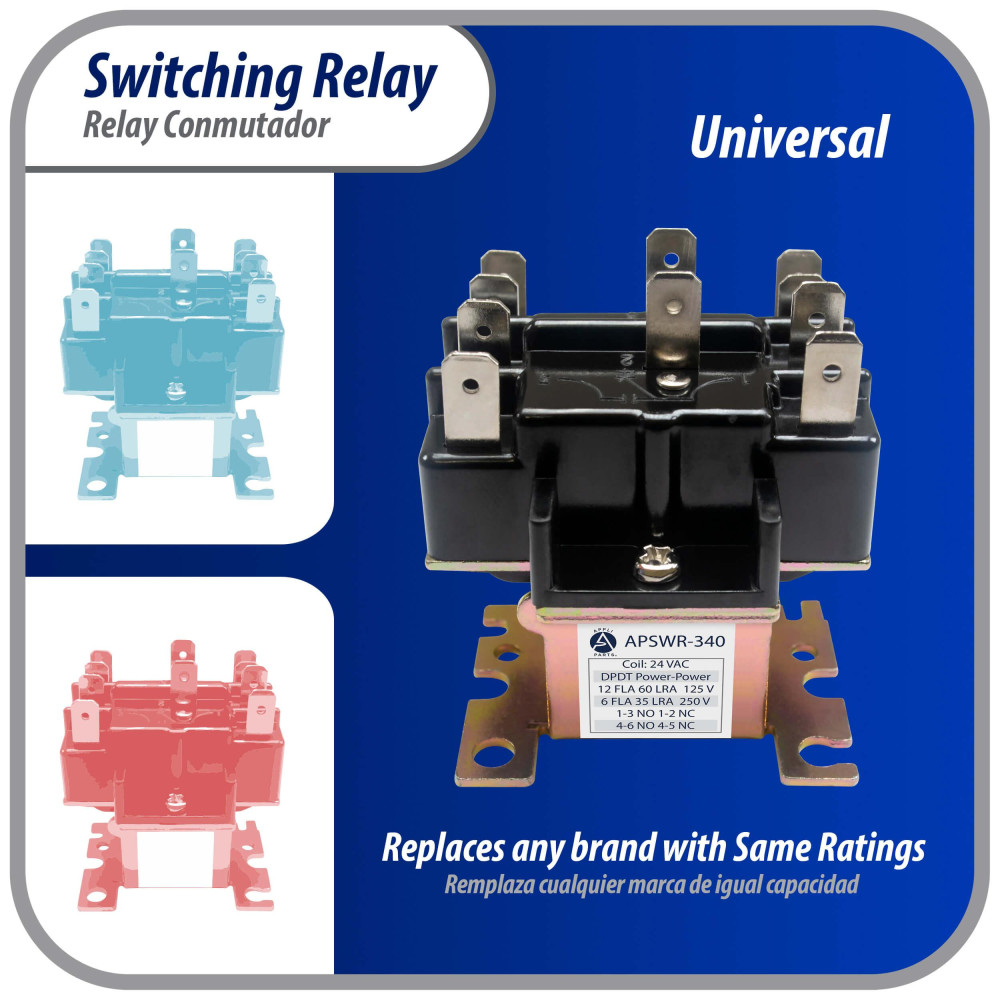

Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed.
Replaces: This product is a direct replacement for 92340, JFR340, RBM 90-340, 90-340, 90340, 90340, R8222D1014, 92340, D-90340, PR340, ZC90340, APSR-340

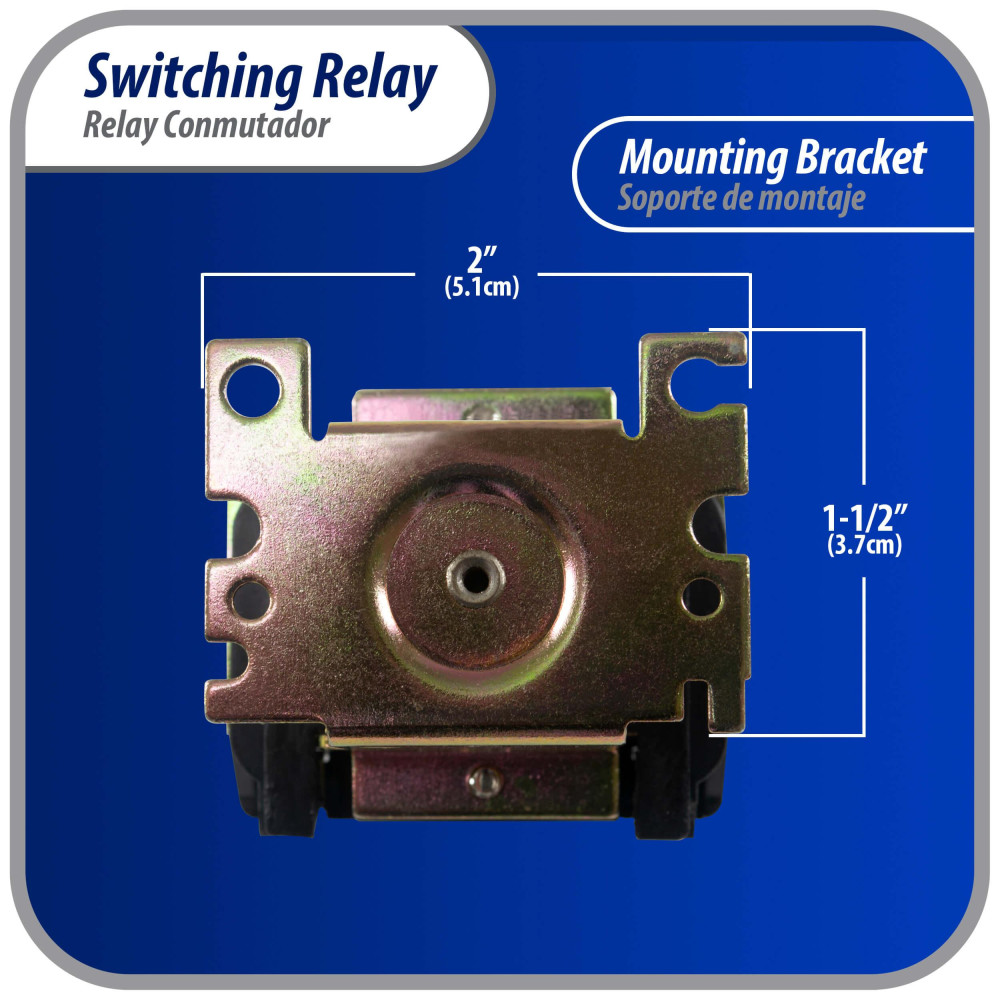

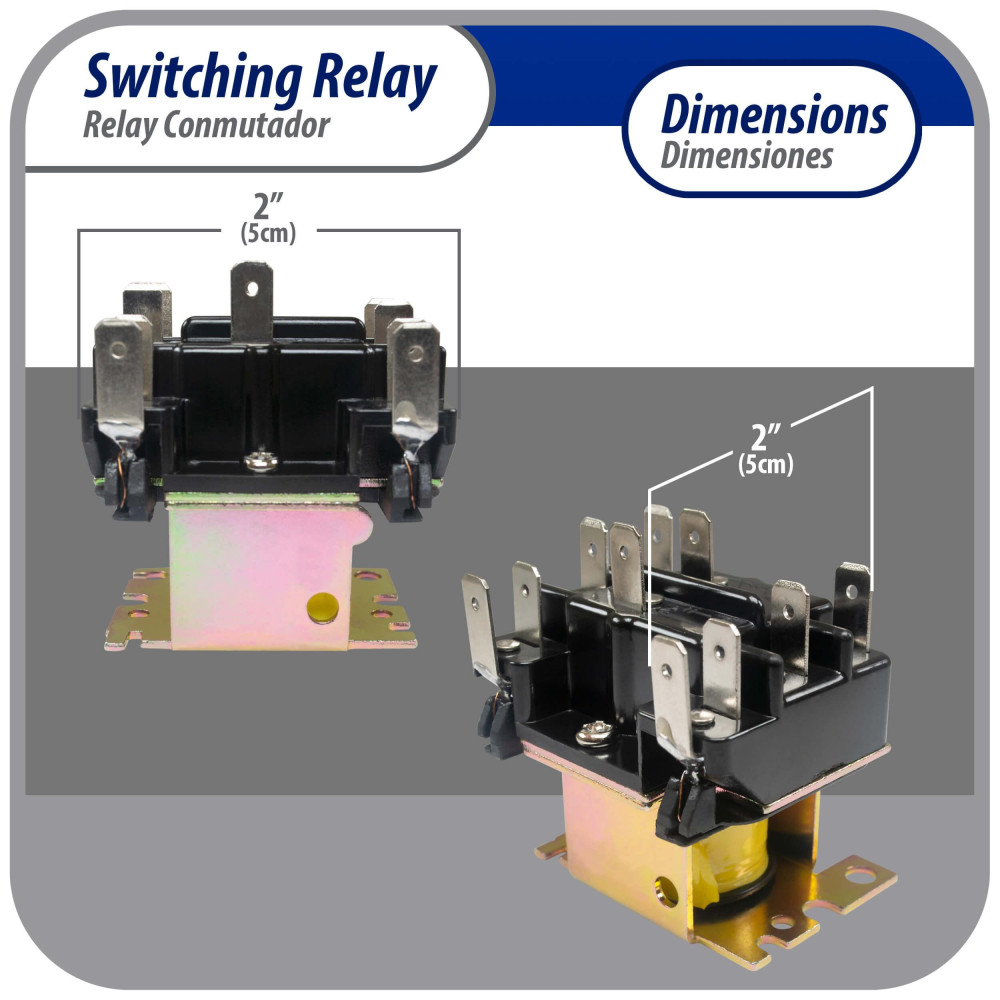

Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Weight : 0.5 LBR
Volume : 0.0086 FTQ
Model : APSR-340 / APSWR-340
UPC-EAN : 814245027834
APFR-340 Power Relay
This product replaces several models and brands not limited to:
92340, JFR340, 90-340, 90-340, 90340, 90340, R8222D1014, 92340, D-90340, PR340, ZC90340, APSR-340
Replaces: 155.76514, 155.76515, 344.58223, 346.270108, 867.587711, 867.587712, 867.587721, 867.587722, 867.587731, 867.587732, 867.587741, 867.587742, 867.587751, 867.587752, 867.741422, 867.741423, 867.741424, 867.741425, 867.741426, 867.741451, 867.741452, 867.741453, 867.741454, 867.741471, 867.741472, 867.741473, 867.741474, 867.741481, 867.741482, 867.741483, 867.741484, 867.741971, 867.74198, 867.74457, 867.74458, 867.76107, 867.761071, 867.761072, 867.761073, 867.761074, 867.76108, 867.761081, 867.761082, 867.761083, 867.761084, 867.76195, 867.761951, 867.76196, 867.761961, 867.76197, 867.761971, 867.76202, 867.76203, 867.76204, 867.762041, 867.76205, 867.762131, 867.76216, 867.76217, 867.76218, 867.762181, 867.76219, 867.762191, 867.76235, 867.762351, 867.76236, 867.762361, 867.76237, 867.76238, 867.76242, 867.76243, 867.76244, 867.762554, 867.762564, 867.762573, 867.762593, 867.76262, 867.762621, 867.76263, 867.762631, 867.76264, 867.762641, 867.76267, 867.76268, 867.762681, 867.76269, 867.762691, 867.76275, 867.76276, 867.76277, 867.762823, 867.762833, 867.76284, 867.76285, 867.76292, 867.762921, 867.762922, 867.76293, 867.762931, 867.762932, 867.76294, 867.762941, 867.762942, 867.76295, 867.762951, 867.762952, 867.763251, 867.763261, 867.76331, 867.76332, 867.763321, 867.763322, 867.763323, 867.763324, 867.76333, 867.763331, 867.763332, 867.763333, 867.763334, 867.76334, 867.763341, 867.763342, 867.763343, 867.763344, 867.76335, 867.763351, 867.763352, 867.76336, 867.763361, 867.763362, 867.763452, 867.763462, 867.763472, 867.76352, 867.763521, 867.76353, 867.763531, 867.76354, 867.763541, 867.76355, 867.763551, 867.76362, 867.763622, 867.76363, 867.763633, 867.76364, 867.763643, 867.76365, 867.76366, 867.763671, 867.76389, 867.763923, 867.763924, 867.763933, 867.763943, 867.763953, 867.76396, 867.76397, 867.763971, 867.76399, 867.76428, 867.76432, 867.764321, 867.76433, 867.764331, 867.764332, 867.76434, 867.764341, 867.76435, 867.764351, 867.76527, 867.76528, 867.76535, 867.76536, 867.76537, 867.76542, 867.76543, 867.76544, 867.76545, 867.765921, 867.765922, 867.765931, 867.765941, 867.765951, 867.765952, 867.76607, 867.76608, 867.76702, 867.76703, 867.76704, 867.767041, 867.76705, 867.767051, 867.76706, 867.767061, 867.76711, 867.767111, 867.767113, 867.76712, 867.767121, 867.767122, 867.76713, 867.767131, 867.767132, 867.76714, 867.767141, 867.767142, 867.76715, 867.767151, 867.767152, 867.76726, 867.76727, 867.76728, 867.76729, 867.767291, 867.767821, 867.767822, 867.767831, 867.767832, 867.767841, 867.767842, 867.767851, 867.767852, 867.767861, 867.767862, 867.76807, 867.76808, 867.76809, 867.768172, 867.768242, 867.768282, 867.76831, 867.768361, 867.768371, 867.768381, 867.768391, 867.76845, 867.768451, 867.768453, 867.76846, 867.768461, 867.768463, 867.76847, 867.768471, 867.768473, 867.76848, 867.768481, 867.768483, 867.76881, 867.76882, 867.768825, 867.76883, 867.76884, 867.769051, 867.769061, 867.769062, 867.769071, 867.769072, 867.769081, 867.76916, 867.769166, 867.769168, 867.769169, 867.76917, 867.769176, 867.769178, 867.769179, 867.76918, 867.769181, 867.769183, 867.769184, 867.76919, 867.769191, 867.769193, 867.769361, 867.769371, 867.769381, 867.769391, 867.76941, 867.76942, 867.76943, 867.76944, 867.76945, 867.76946, 867.76947, 867.76948, 867.76949, 867.769501, 867.769503, 867.769504, 867.76951, 867.769511, 867.769513, 867.769514, 867.76952, 867.769521, 867.769523, 867.769524, 867.769525, 867.76953, 867.769531, 867.769533, 867.769534, 867.76954, 867.769541, 867.769543, 867.76967, 867.77255, 867.77256, 867.77257, 867.77259, 867.77262, 867.772621, 867.77263, 867.772631, 867.77264, 867.772641, 867.77266, 867.77283, 867.77285, 867.77293, 867.772931, 867.773261, 867.77393, 867.77433, 867.774331, 867.77528, 867.775281, 867.775282, 867.77543, 867.775431, 867.77545, 867.775451, 867.775931, 867.775951, 867.775952, 867.77608, 867.777831, 867.777832, 867.777833, 867.77784, 867.777841, 867.777842, 867.77861, 867.77863, 867.77864, 867.77865, 867.77866, 867.779051, 867.779061, 867.779062, 867.779071, 867.779072, 867.779081, 867.779381, 867.77941, 867.77942, 867.77943, 867.77944, 867.77951, 867.779511, 867.779513, 867.779514, 867.77952, 867.779521, 867.779523, 867.779524, 867.779525, 867.77953, 867.779531, 867.779533, 867.779534, 867.77954, 867.779541, 867.779543, 867.800001, 867.80006, 867.800061, 867.80007, 867.800071, 867.80008, 867.800081, 867.80009, 867.800091, 867.80045, 867.80046, 867.80047, 867.80048, 867.80049, 867.80055, 867.800551, 867.80056, 867.800561, 867.80057, 867.800571, 867.80058, 867.800581, 867.80059, 867.800591, 867.8009, 867.80091, 867.80092, 867.80093, 867.80094, 867.80095, 867.800952, 867.80101, 867.80102, 867.80103, 867.80104, 867.80105, 867.80111, 867.80112, 867.80113, 867.80114, 867.80115, 867.801202, 867.801212, 867.801222, 867.801232, 867.801242, 867.801411, 867.801421, 867.801611, 867.801621, 867.8029, 867.80291, 867.80292, 867.80293, 867.80294, 867.802952, 867.802972, 867.802982, 867.802992, 867.803002, 867.803012, 867.803022, 867.803032, 867.803042, 867.80455, 867.81388, 867.81389, 867.81391, 867.81392, 867.81393, 867.81394, 867.81395, 867.81396, 867.81397, 867.81398, 867.81399, 867.814011, 867.81402, 867.814021, 867.81403, 867.814031, 867.81404, 867.81411, 867.81412, 867.81413, 867.81414, 867.81415, 867.81416, 867.81417, 867.81418, 867.81419, 867.81421, 867.81422, 867.81438, 867.81444, 867.81445, 867.814453, 867.814455, 867.81446, 867.814465, 867.814468, 867.814473, 867.814476, 867.814484, 867.814486, 867.81461, 867.81462, 867.81463, 867.81464, 867.81491, 867.81492, 867.84601, 867.846021, 867.84603, 867.846041, 867.84605, 867.84606, 867.84607, 867.84701, 867.847021, 867.84703, 867.847041, 867.84705, 867.84706, 867.84707, 21237, 21246, FXC43-105DR-1, FXC43-135C-1, FXX63-112ER-2
Data sheet
- Product Feature
- Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
- Details: Coil Voltage is 24 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V
- Replaces: This product is a direct replacement for 92340, JFR340, RBM 90-340, 90-340, 90340, 90340, R8222D1014, 92340, D-90340, PR340, ZC90340, APSR-340
- Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed.
- Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications
- Weight
- 0.5 LBR
- Volume
- 0.0086 FTQ
- Model
- APSR-340 / APSWR-340
- UPC-EAN
- 814245027834
