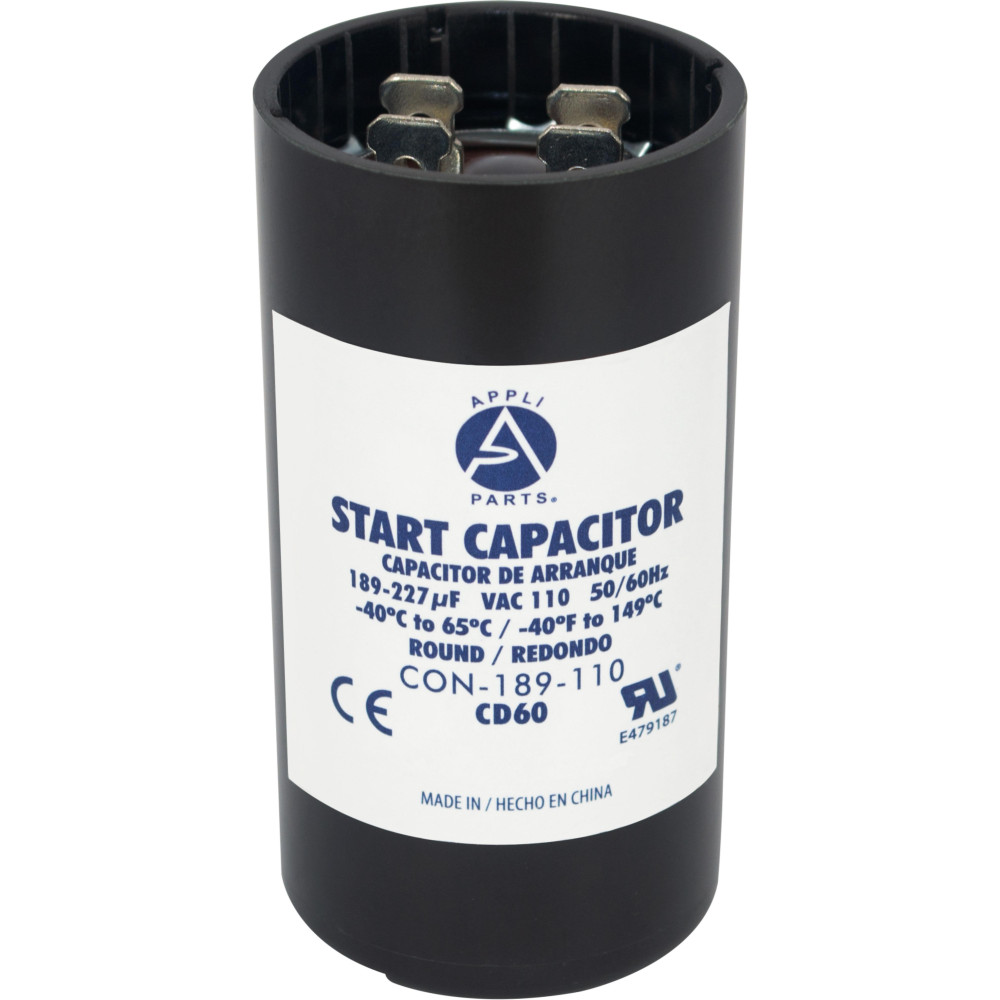

Appli Parts CON-189-110 Motor Start Capacitor 189-227 MFD uF, 110-125 VAC. Universal for Electric Motor Applications, 1.44 in Wide, 2.75 in Height
$21.49
Price per Each
Price per Each
Appli Parts CON-189-110 Motor Start Capacitor 189-227 MFD uF, 110-125 VAC. Universal for Electric Motor Applications, 1.44 in Wide, 2.75 in Height
SKU
G0320.189
Appli Parts CON-189-110 Motor Start Capacitor 189-227 MFD uF, 110-125 VAC. Universal for Electric Motor Applications, 1.44 in Wide, 2.75 in Height

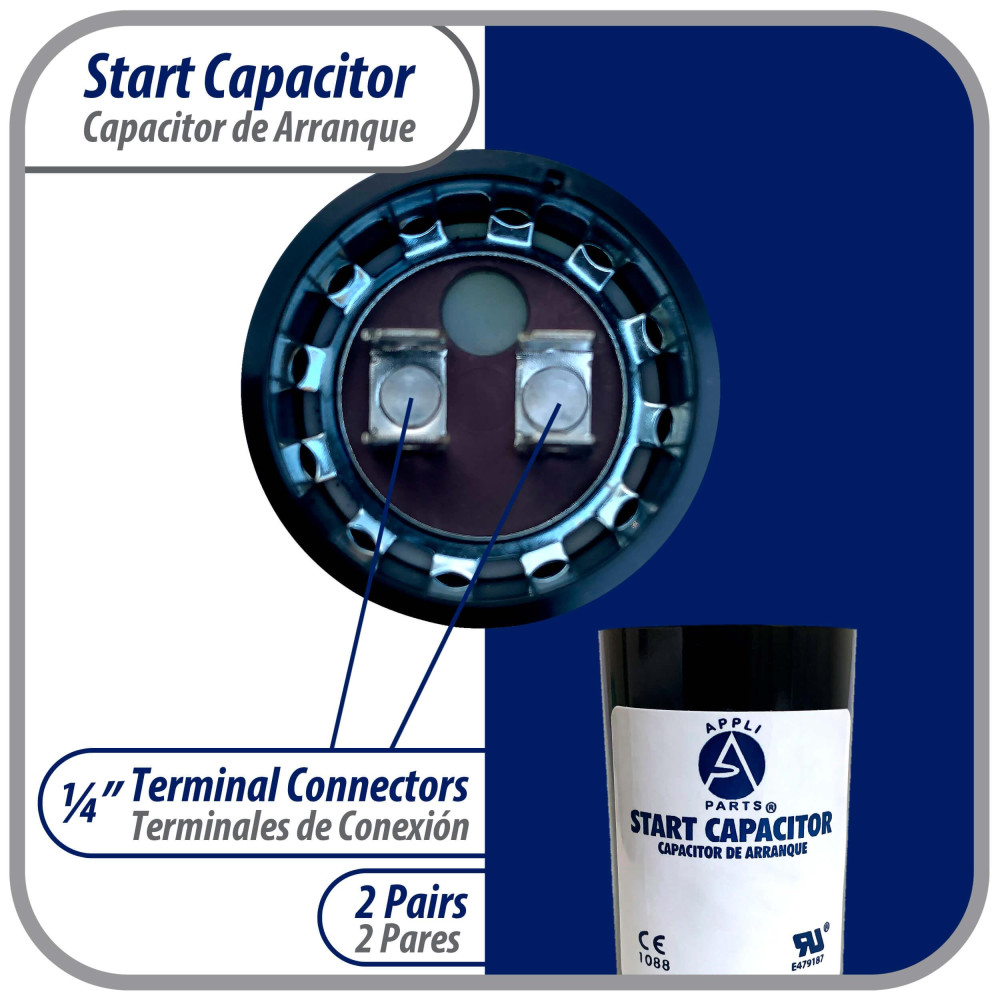

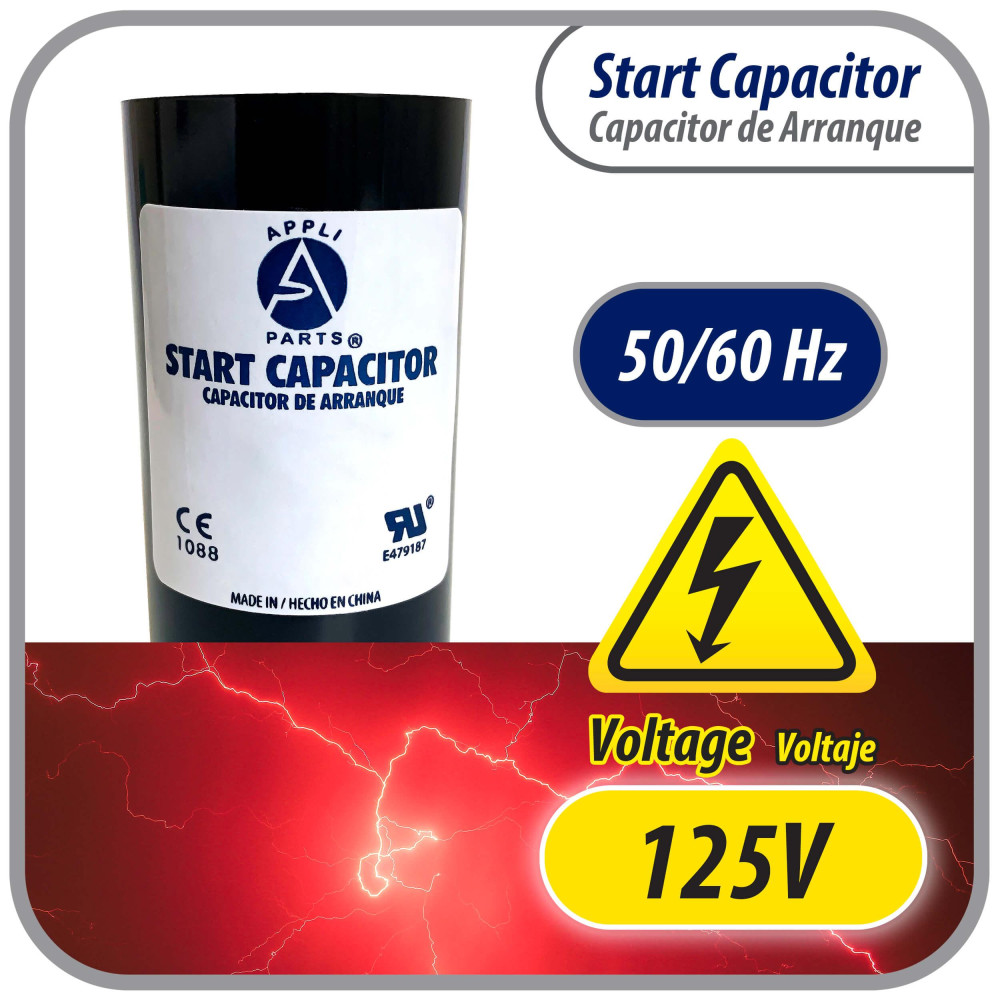

Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 110-125 VAC with 1/4 in Male Quick-connect. Replaces 2MDR5 CAP-189-110 8572717
Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts.

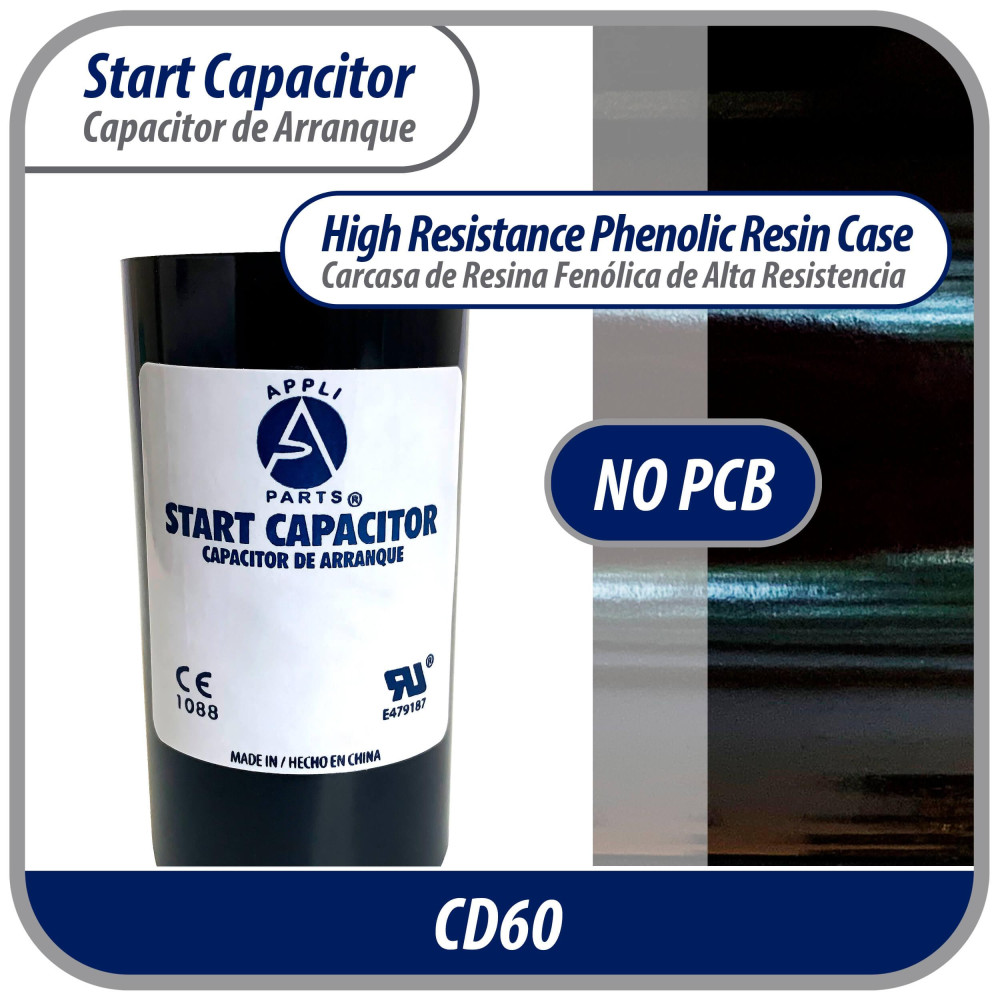

High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life.

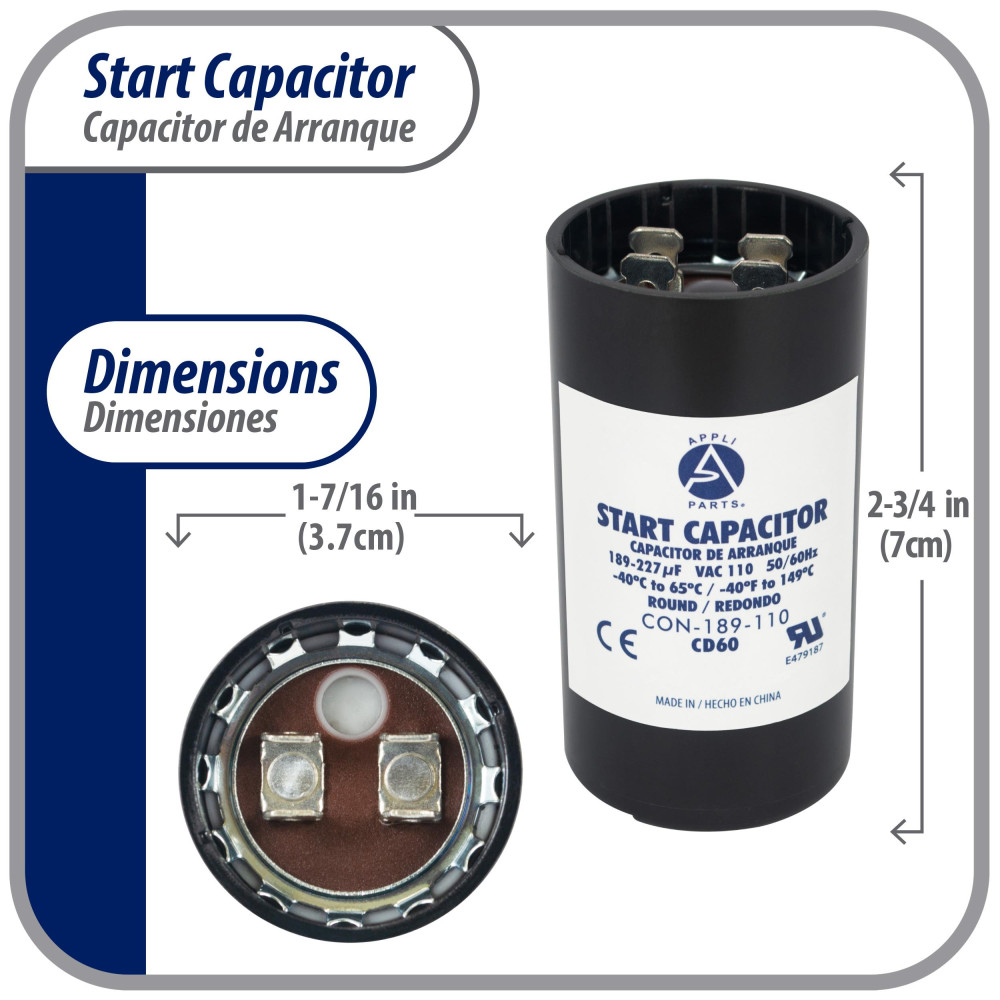

Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 2.75 in Height

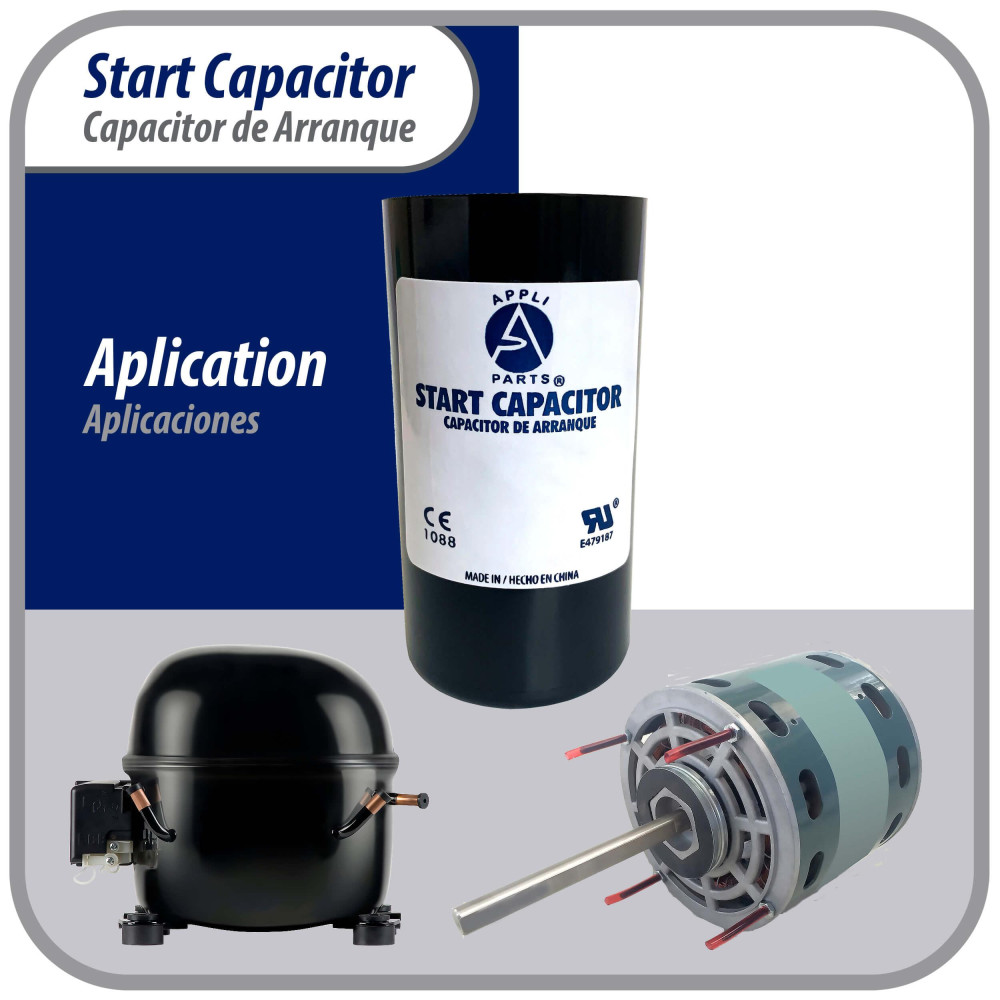

Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.
Weight : 0.6 LBR
Volume : 0.004 FTQ
Model : CON-189-110
UPC-EAN : 814245023225
Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 110-125 VAC with 1/4 in Male Quick-connect. Replaces 2MDR5 CAP-189-110 8572717
Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts.
High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life.
Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 2.75 in Height
Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.
Weight : 0.6 LBR
Volume : 0.004 FTQ
Model : CON-189-110
UPC-EAN : 814245023225
This product replaces several models and brands not limited to:
279667 357021 357201 3948448 3949169 661606 8572717 8572719 W10161696 W10244889 482156 189-227MFD 235-9929-05A AP6013434 PS11746660
Works for following models:
110.24642300 110.28803890 110.82870120 110.82873120 110.82980120 110.88752792 110.88752793 110.88752796 110.92273100 110.92274100
G0320.189
New
Data sheet
- Product Feature
- Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.
- Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts.
- High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life.
- Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 2.75 in Height
- Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 110-125 VAC with 1/4 in Male Quick-connect. Replaces 2MDR5 CAP-189-110 8572717
- Weight
- 0.6 LBR
- Volume
- 0.004 FTQ
- Model
- CON-189-110
- UPC-EAN
- 814245023225
