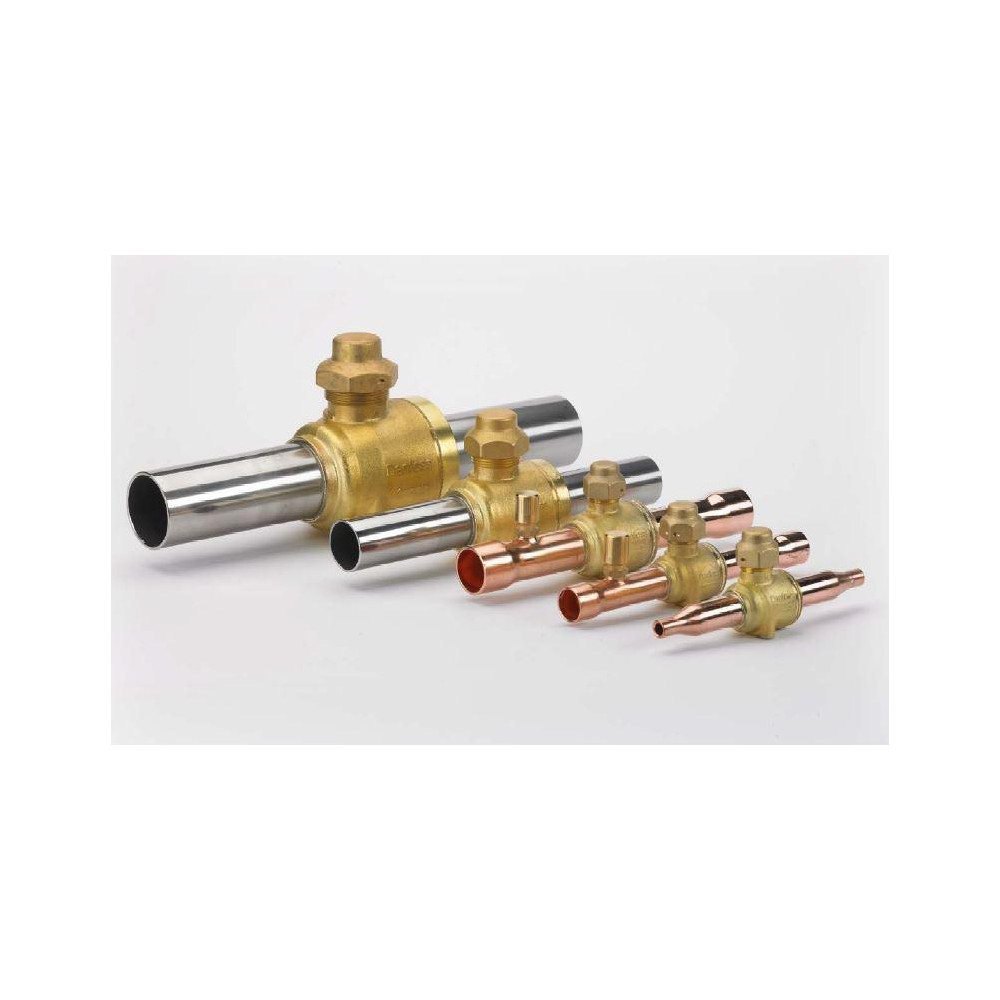

Danfoss 009L7406 Shut Off Ball Valve 28mm Butt Weld GBCH 28s, R744, CO2, MWP 1305psi WT -40F to 212F Replaces 009G7406

$156.87
Price per Each

Danfoss 009L7406 Shut Off Ball Valve 28mm Butt Weld GBCH 28s, R744, CO2, MWP 1305psi WT -40F to 212F Replaces 009G7406
The valves are specifically designed for intrinsic standstill security, meaning that the valves can withstand pressures normally arising when the refrigeration system is shut off
1/4 turn from fully open to fully closed. GBCH for R744 is designed for: GBCH 6s - 28s : 90 bar / 1305 psig GBCH 35s - 42s: 75 bar / 1085 psig MWP
Rotation stops at fully open and fully closed positions. Indicator on spindle top shows if the valve is open or closed
Double O-ring stem seal design. Precision laser welded construction.Burst-proof spindle design. Valve seal of low friction, tight-sealing modified PTFE Teflon.Drilled and tapped for panel mounting
Replaces CBV09-002, 10150075002, AP17865HP, 6570E/M28, BVM28MP, BV21D028K0000

Weight : 2.5 LBR
Model : 009L7406
UPC-EAN : 5702428515412

SKU G009G7406

Condition New

Data sheet

Product Feature: 1/4 turn from fully open to fully closed. GBCH for R744 is designed for: GBCH 6s - 28s : 90 bar / 1305 psig GBCH 35s - 42s: 75 bar / 1085 psig MWP
Double O-ring stem seal design. Precision laser welded construction.Burst-proof spindle design. Valve seal of low friction, tight-sealing modified PTFE Teflon.Drilled and tapped for panel mounting
Replaces CBV09-002, 10150075002, AP17865HP, 6570E/M28, BVM28MP, BV21D028K0000
Rotation stops at fully open and fully closed positions. Indicator on spindle top shows if the valve is open or closed
The valves are specifically designed for intrinsic standstill security, meaning that the valves can withstand pressures normally arising when the refrigeration system is shut off
Weight: 2.5 LBR
Model: 009L7406
UPC-EAN: 5702428515412
