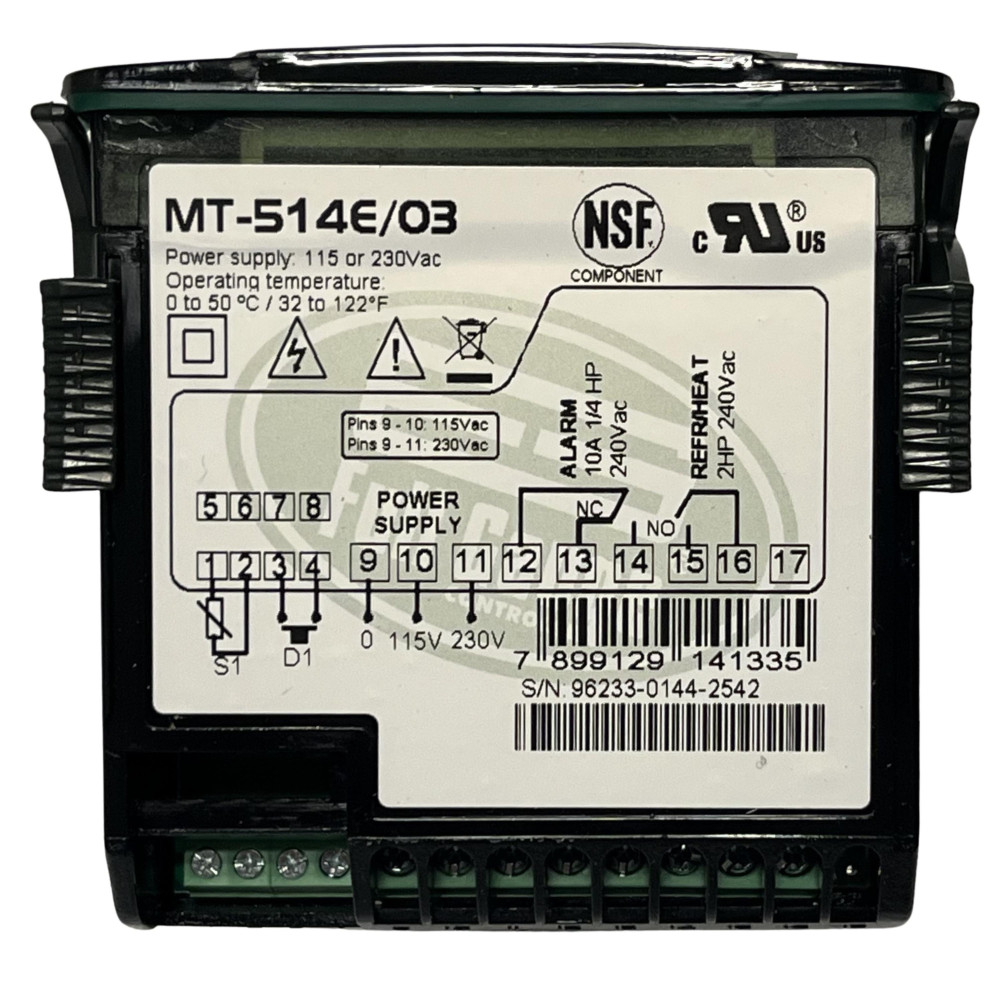

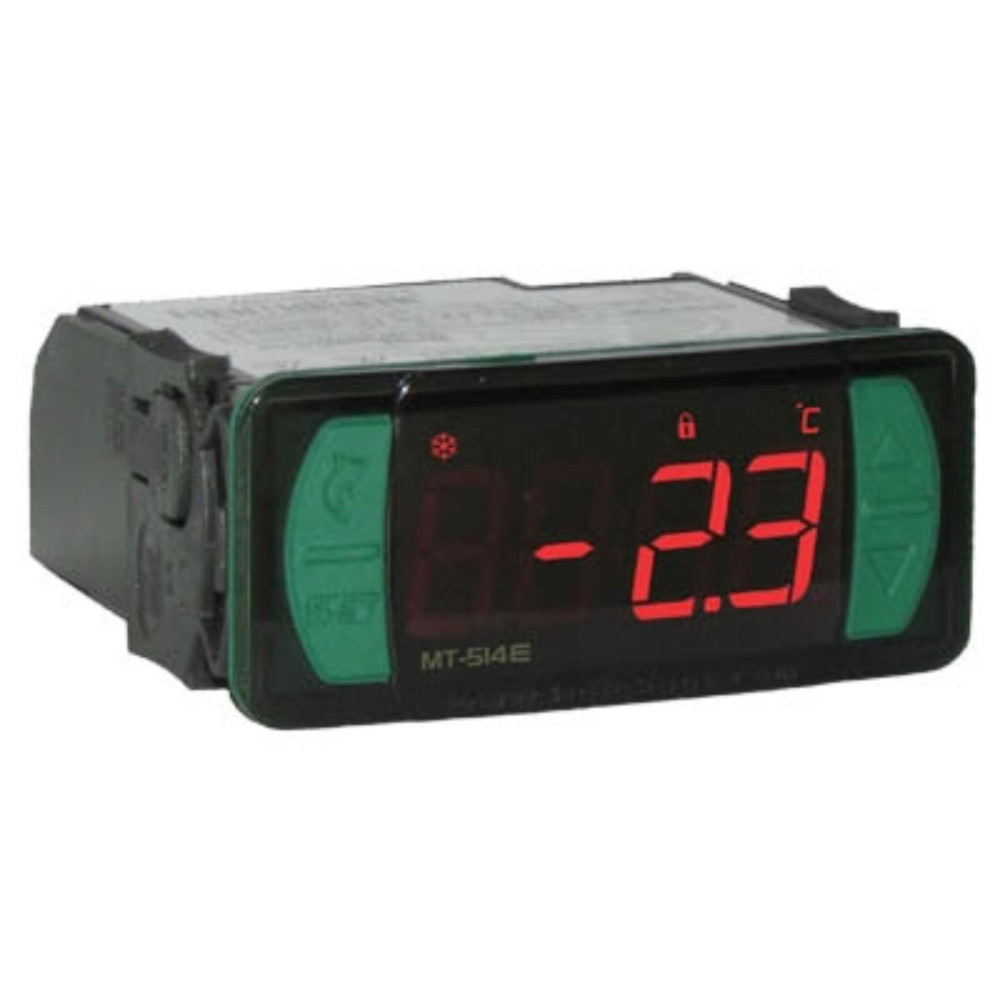

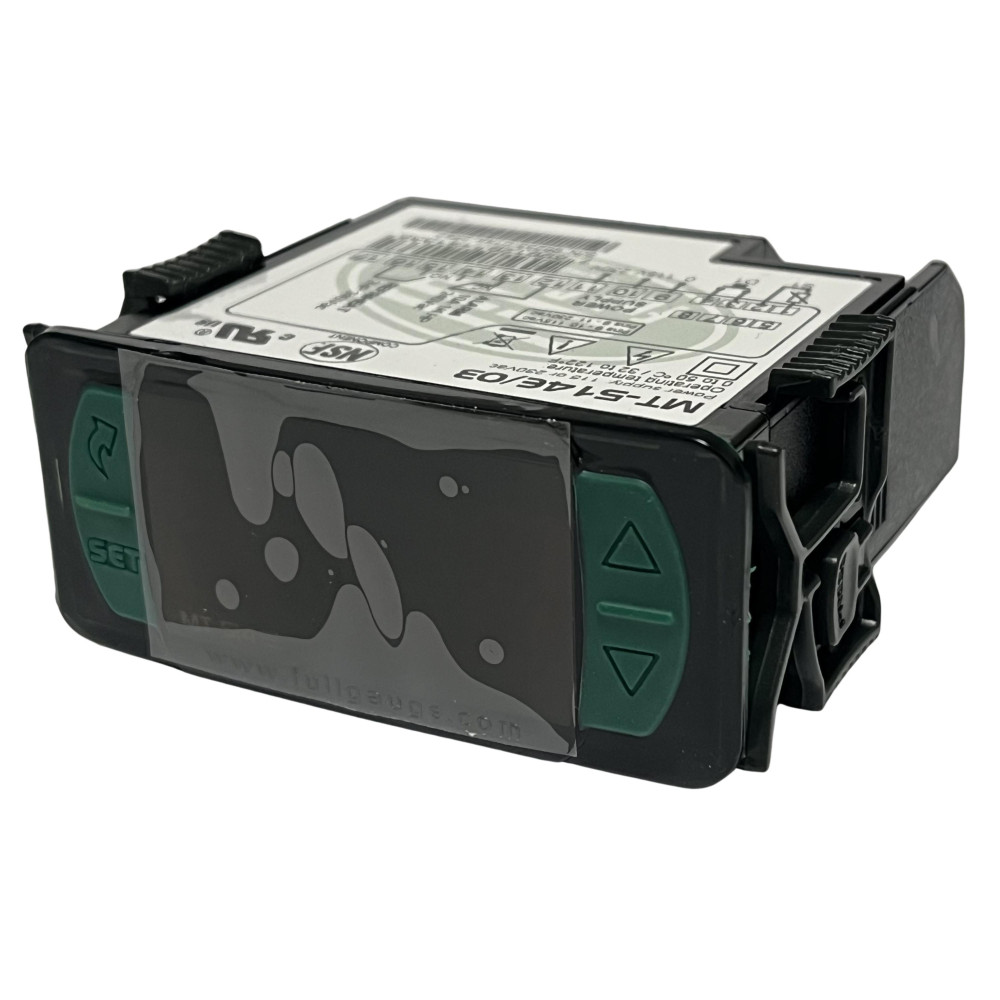

DIGITAL CONTROLLER FOR HEATING OR COOLING WITH DEFROST AND CONFIGURABLE ALARM OUTPUT

The MT-514e is a temperature controller for cooling or heating applications. It has an internal audible alarm (buzzer) and an output for alarm control that can also be configured for electric defrost, hot gas defrost, fan or as a second compressor that will act in parallel with the main one. The minimum and maximum temperature record is displayed at the touch of a single key ; (Flatec). Another available feature is the shutdown of control functions, making it possible for the MT-514e to operate only as a temperature indicator. And through an intelligent function blocking system, it prevents unauthorized persons from changing the control parameters. Product is compliant with ULInc. (United States and Canada). This product is UL and NSF certified, this product is also suitable for installations with R290 and R600a gases. Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display

TECHNICAL SPECIFICATIONS:

Power supply: 115/230 Vac ±10% (50/60 Hz)

Control temperatura: -58F a 221F / -50C a 105C

Operating temperatura: 32F to 122F / 0C to 50C

Current output:

OUT1: 16(12)A 250Vac 2HP

OUT2: 10A / 240Vac 1/4HP

Operating humidity: 10 to 90% UR (non-condensing)

Dimensions (mm): 76 x 34 x 77 mm (WxHxD)

Dimensions of the clipping for fixing of the instrument: 71 +/- 0,5 x 29 +/- 0,5 mm (see item 5)

Audible Alarm

Defrost

Function blocking

Control functions shutdown

Serial Programming

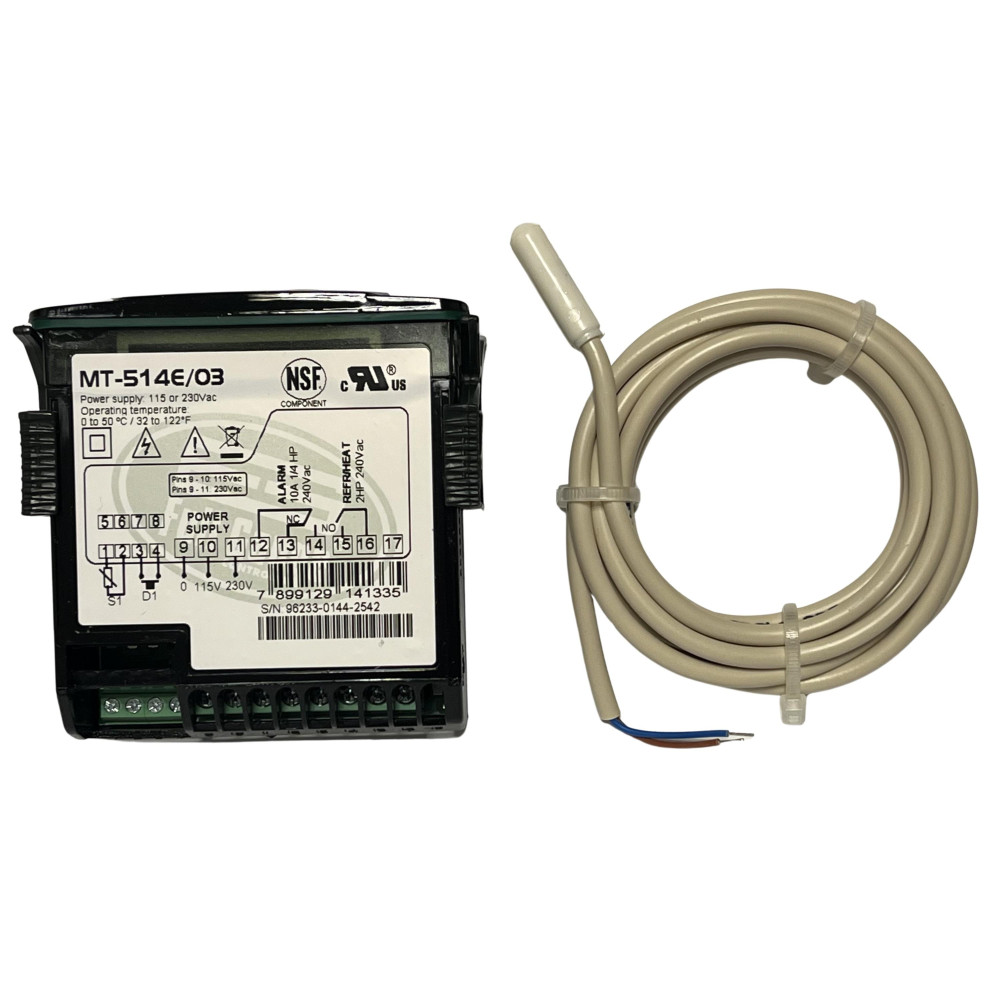

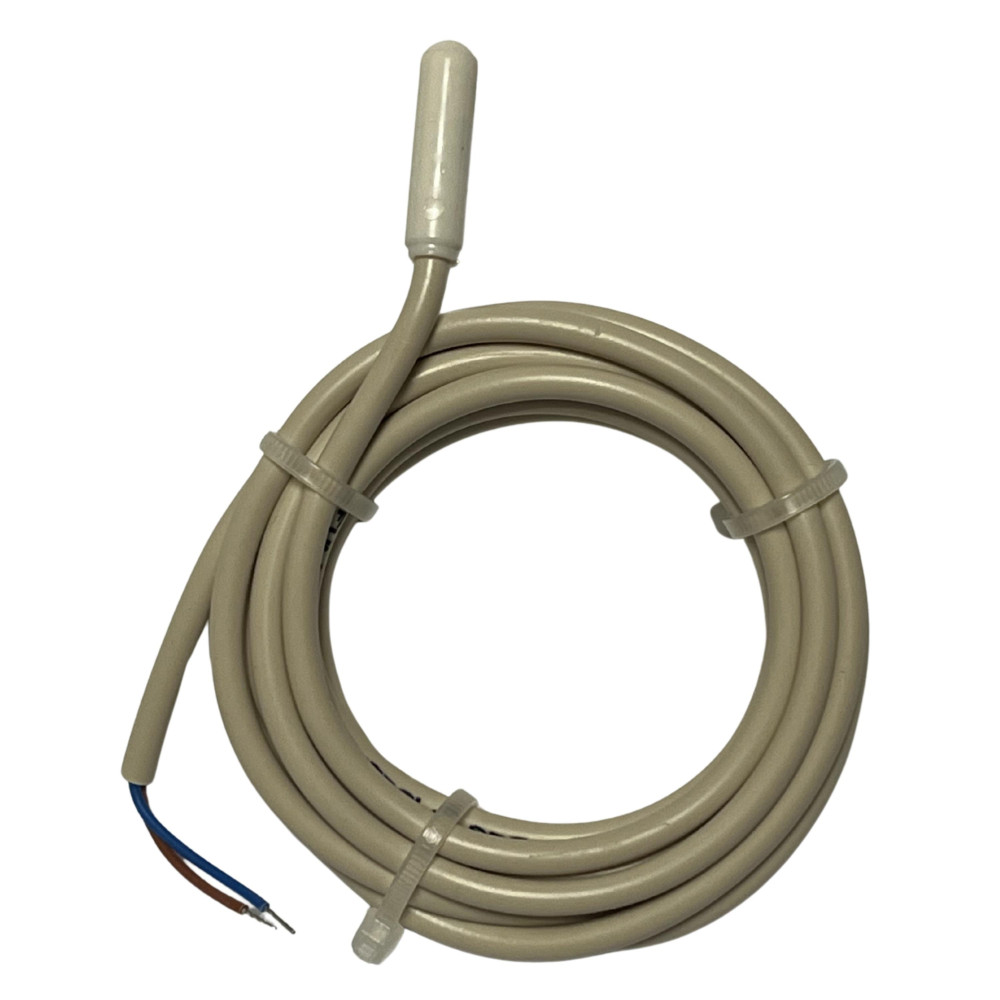

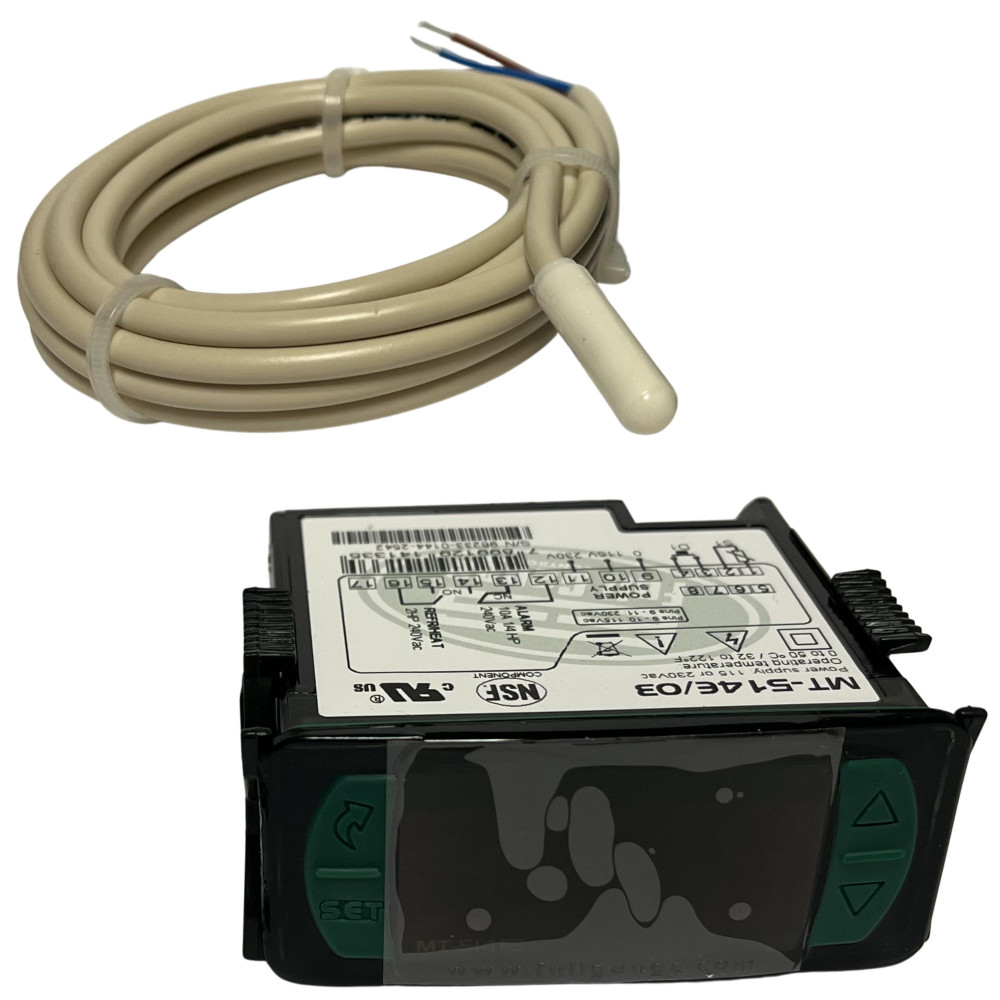

This instrument measures and controls temperatures of up to 200C/392F, using the silicone sensor cable SB59 (sold separately).

Note: The sensor cable lenght can be increased by the user up to 200 meters using PP2 x 24 AWG cable.
