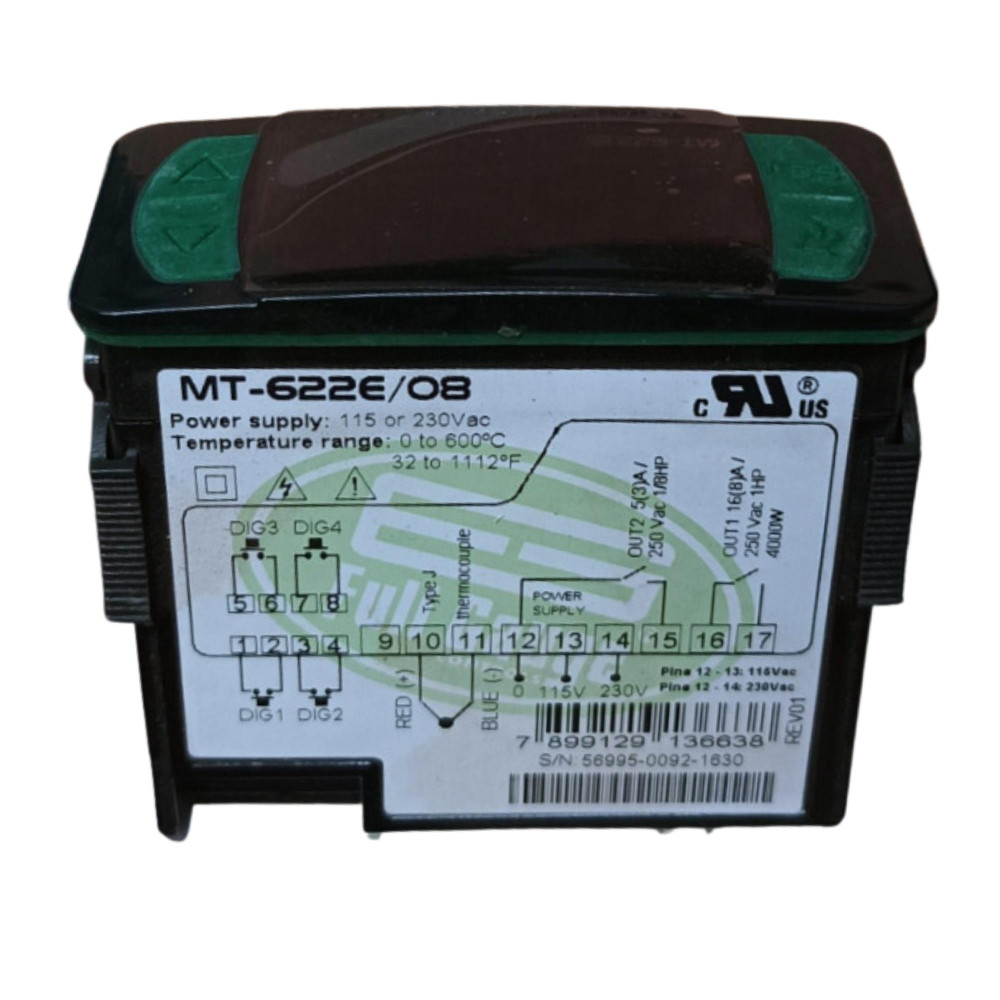

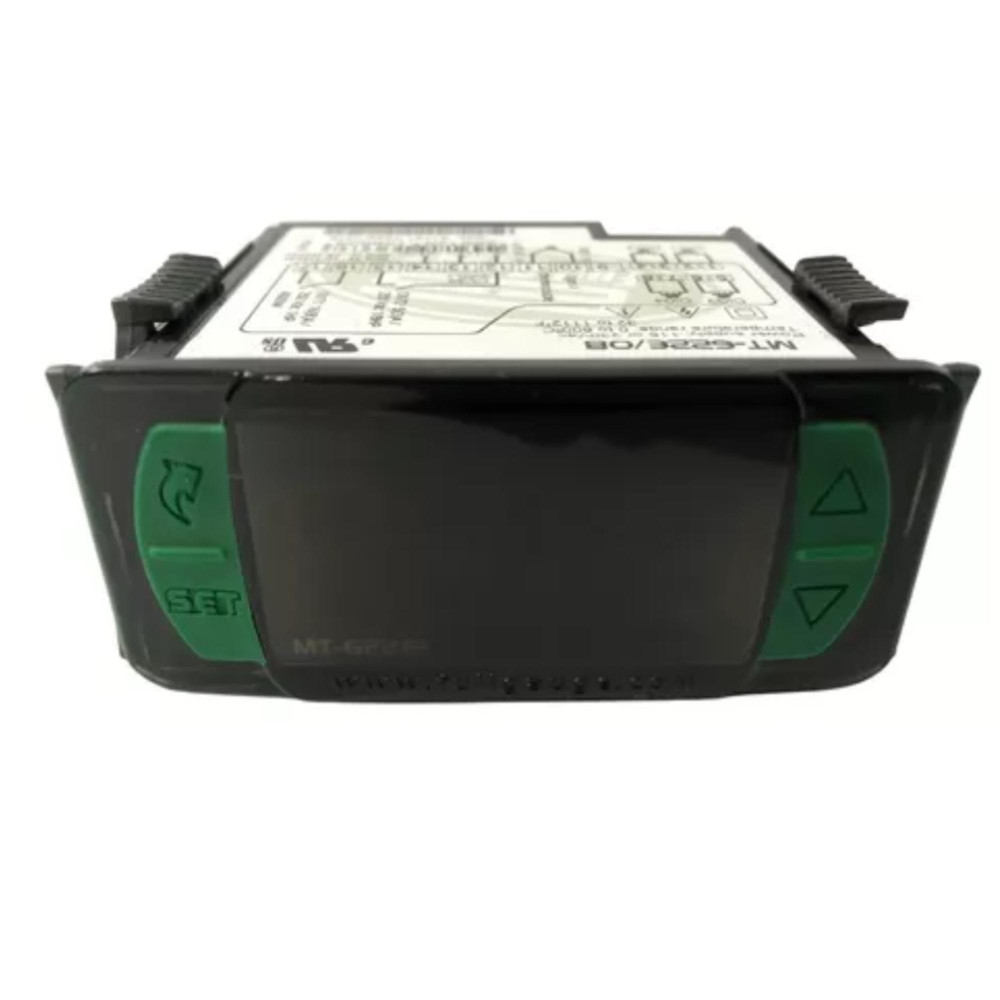

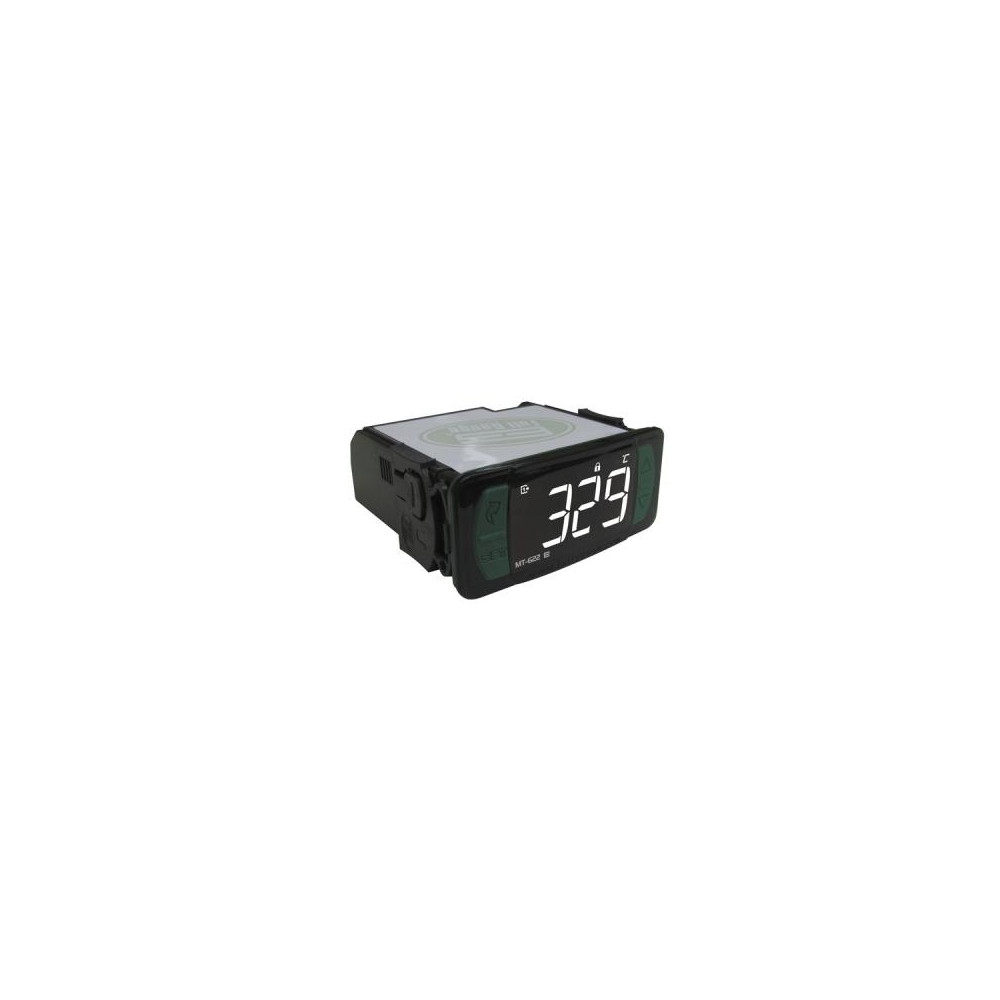

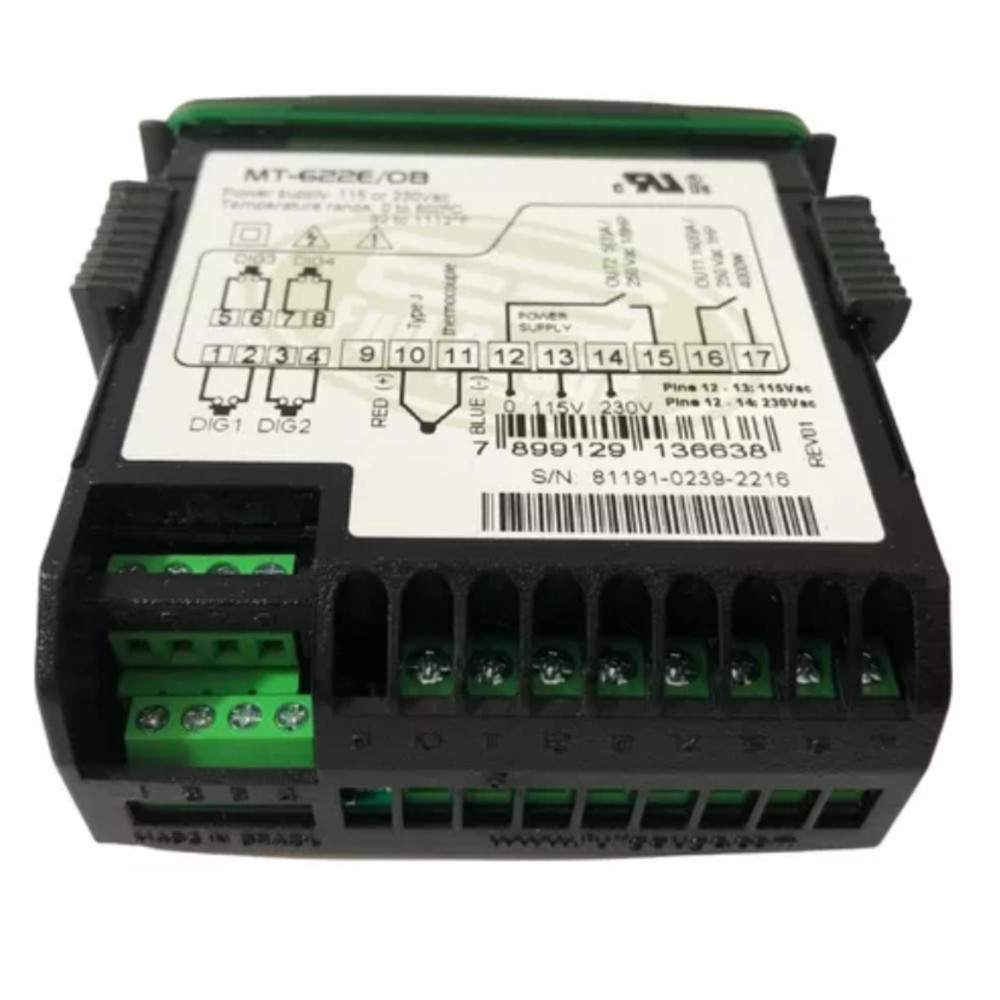

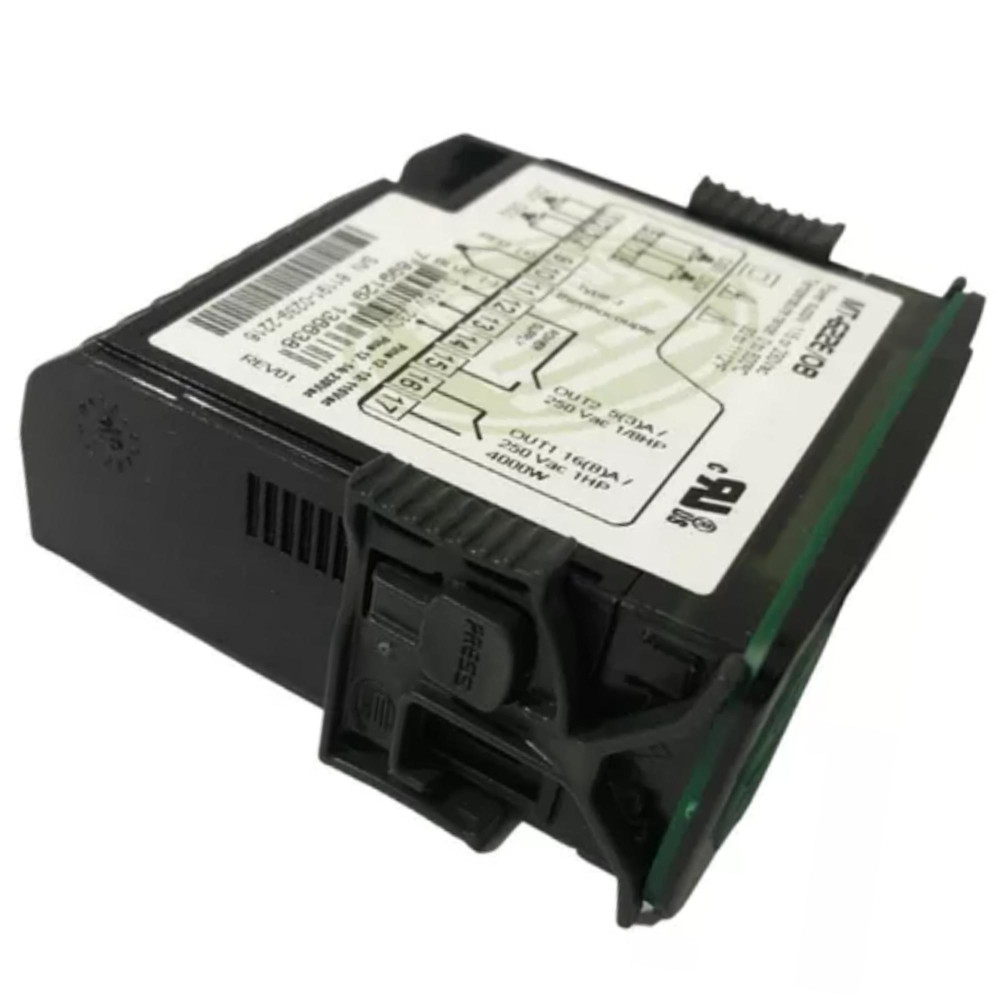

TWO STAGE DIGITAL CONTROLLER WITH ALARM AND CYCLIC TIMER AND PROCESS TIMER

The MT-622E is a temperature controller for heating applications that uses a type J thermocouple as a sensor, measuring from -50C to 600C. It has two control outputs and an internal buzzer. The first output uses a cyclic preheating mode and the second output can work as an alarm, a cyclic timer or an end of process indicator. It has a timer that operates in different modes, activated by digital inputs, that shows the end time of one or two processes. It also has five configurable recipes, that allow to quickly change the values of the temperature setpoint and the hysteresis of the first stage and the process time.

This product is CE and UL certified.

The products of the Evolution line have frontal IP-65 protection, Flatec key for easy access and four digits display.

TECHNICAL SPECIFICATIONS:

Power supply: 115/230 Vac ±10% (50/60 Hz)

Control temperatura: 32F to 1112F / 0C to 600C

Operating temperatura: 32F to 122F / 0C to 50C

Current output:

OUT 1: 16(8)A / 250 Vac 1HP - 4000W

OUT 2: 5(3)A / 250 Vac 1/8HP

Resolution: 1C / 1F

Operating humidity: 10 to 90% UR (non-condensing)

Sensor: J type Thermocouple (sold separately)

Dimensions (mm): 76 x 34 x 77 mm (WxHxD)

Dimensions of the clipping for fixing of the instrument: 71 + /- 0,5 x 29 +/- 0,5 mm (see item 5)

Buzzer

Functions lockdown

Control functions shutdown

Serial programming
