Dryer Control Board Assembly

Replaces the following part numbers no limitied to:WE04X29098, WE04X26818, WE04X28084, WE22X28801

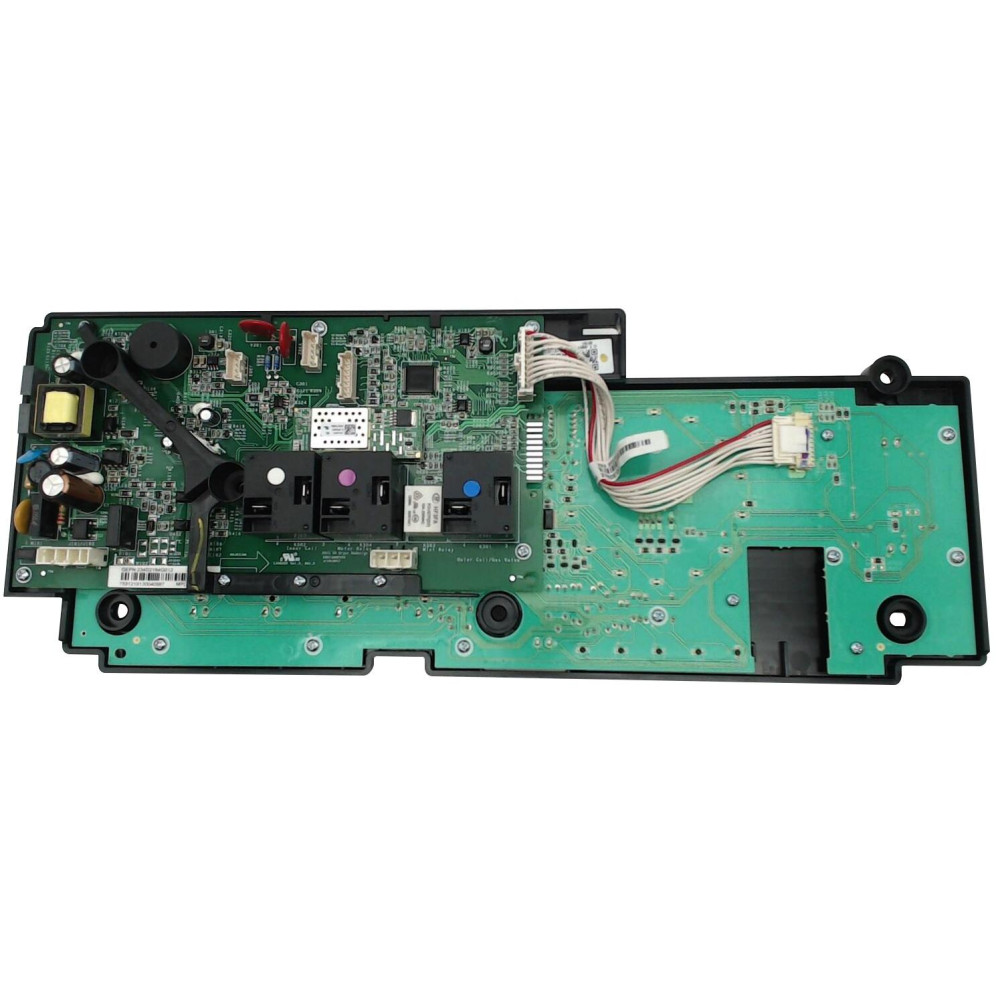

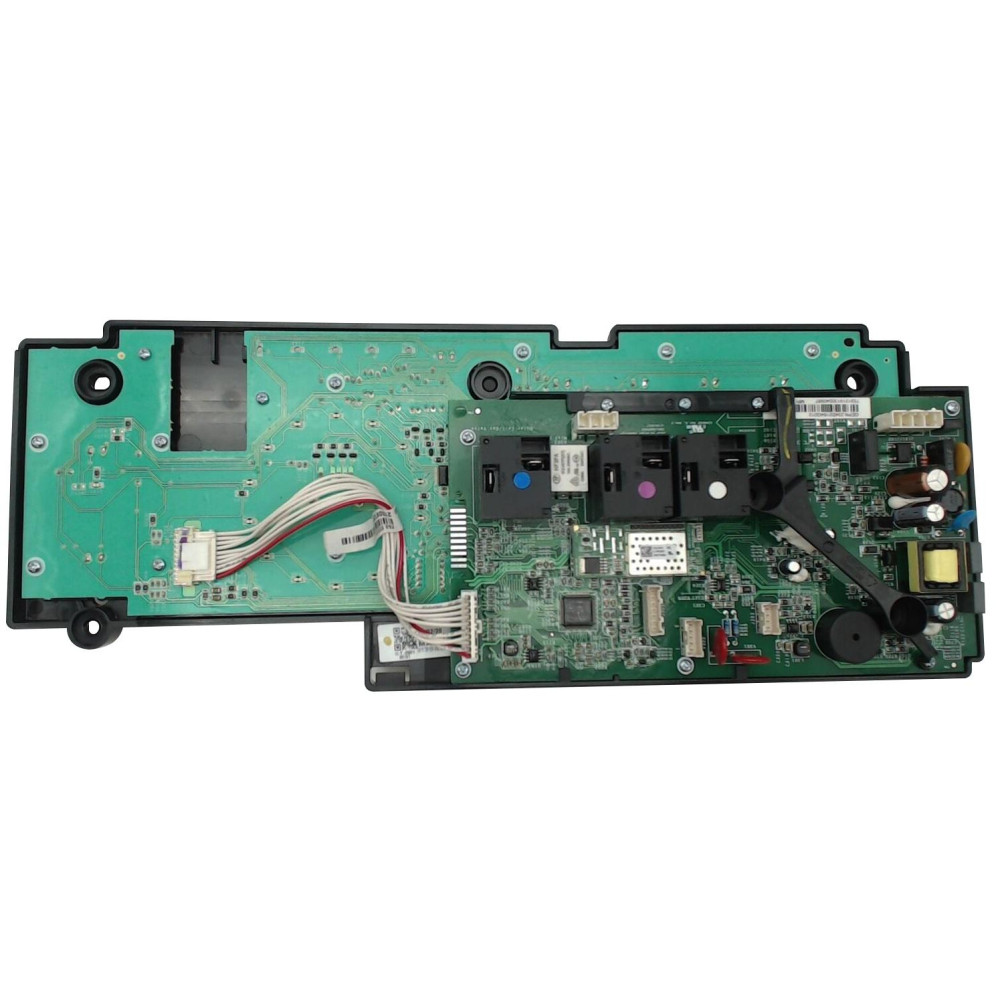

This OEM component serves as the control board designed for washing machines. The control board functions as the primary computer responsible for managing the vital operations of the washing machine. If you notice issues such as the washer failing to spin, rinse, or drain properly, it may be a signal that it's time to consider replacing the control board. The good news is that the process of replacing the control board is quite straightforward. To begin the replacement, ensure that the washing machine is unplugged. Carefully pull the washer out to access the upper rear panel of the appliance. Remove the upper back panel and locate the existing control board. It's a helpful idea to capture the wire orientation using your phone's camera. Proceed to detach the wire harness and individual wires. Reconnect these wires to the new control board in the correct sequence. Snap the control board securely into its original position and then reattach the top panel of the washing machine.
