Ranco 1309007-044 Electronic Temperature Control Full-Featured Electronic Replacement for Electrical-Mechanical Temperature Controls Used in Many Commercial Refrigeration Applications
$45.58
Ranco 1309007-044 Electronic Temperature Control Full-Featured Electronic Replacement for Electrical-Mechanical Temperature Controls Used in Many Commercial Refrigeration Applications
SKU
G1309007-044
Ranco 1309007-044 Electronic Temperature Control Full-Featured Electronic Replacement for Electrical-Mechanical Temperature Controls Used in Many Commercial Refrigeration Applications
With Its Wide Temperature Range, One And Two Stage Capability, Selectable Heating/Cooling Modes And Multi-Voltage Input, The ETC Is Designed To Provide Application Flexibility. Models Available Include 120/208/240V AC And 24V AC
Anti-Short Cycle Compressor Delay For Cooling Applications Wide Temperature Range (-30F To 220F) (-34.4C To 104.4C) Wide Differential Adjustment (1F To 30F) (-17C To -1C)
LCD Read-Out For Sensor Temperature, Control Settings, And Relay Status High Amp Output Relay (FLA 16 Amps 120V AC And 8 Amps 208/240V AC) Single Stage EEPROM Memory Retains Control Settings During Power Outages

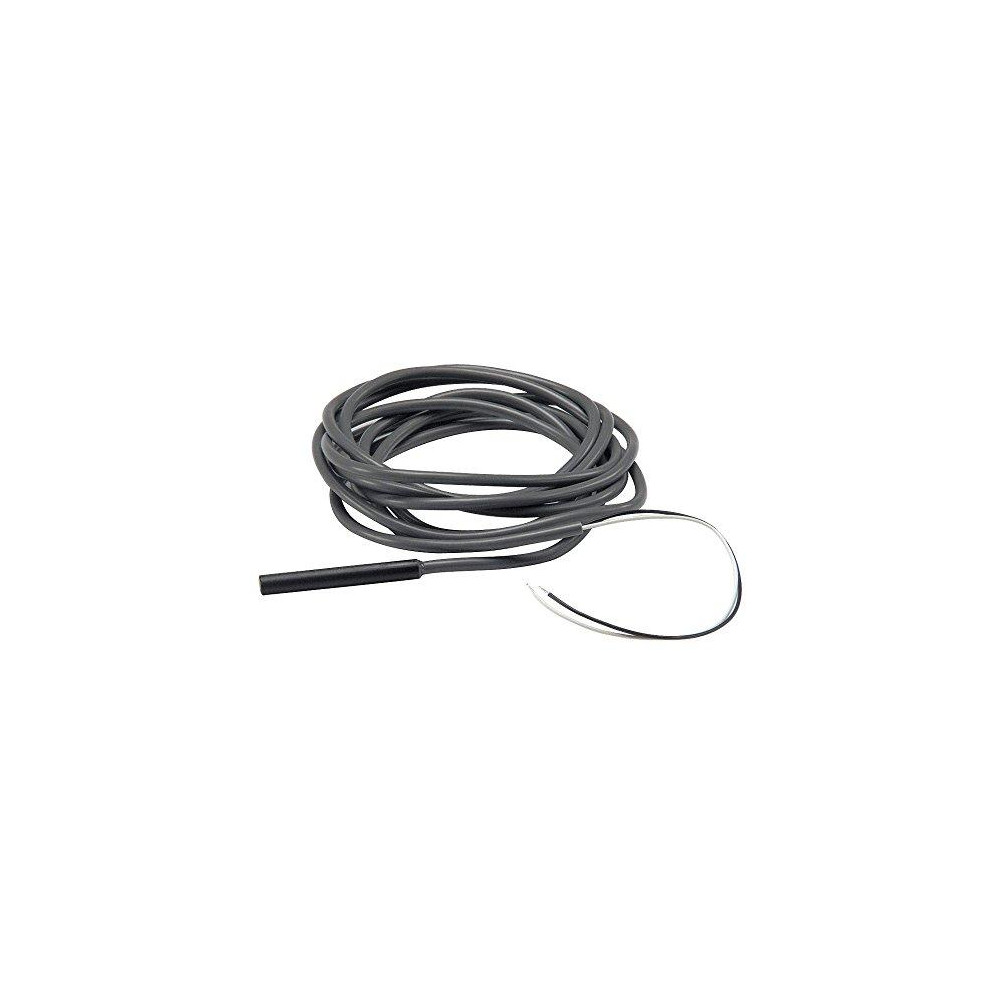

Keypad Lockout To Prevent End-User Alteration Of Settings 8 Foot Lead With Sensor Is Extendable Up To 400 Feet Using 18- Or 22-Gauge Thermostat Wire Easy 4-Step Set-Up Heavy-Duty Relay Is 1HP Rated
Selectable F Or C Heating/Cooling Modes Single And Two Stage Models NEMA 1 Case And Cover NEMA 4X Models Available White Backlight On Display Sensor Rated IP67 For Dust And Water (<1m) Resistance
Weight : 0.2 LBR
Model : 1309007-044
UPC-EAN : 094723142239
With Its Wide Temperature Range, One And Two Stage Capability, Selectable Heating/Cooling Modes And Multi-Voltage Input, The ETC Is Designed To Provide Application Flexibility. Models Available Include 120/208/240V AC And 24V AC
Anti-Short Cycle Compressor Delay For Cooling Applications Wide Temperature Range (-30F To 220F) (-34.4C To 104.4C) Wide Differential Adjustment (1F To 30F) (-17C To -1C)
LCD Read-Out For Sensor Temperature, Control Settings, And Relay Status High Amp Output Relay (FLA 16 Amps 120V AC And 8 Amps 208/240V AC) Single Stage EEPROM Memory Retains Control Settings During Power Outages
Keypad Lockout To Prevent End-User Alteration Of Settings 8 Foot Lead With Sensor Is Extendable Up To 400 Feet Using 18- Or 22-Gauge Thermostat Wire Easy 4-Step Set-Up Heavy-Duty Relay Is 1HP Rated
Selectable F Or C Heating/Cooling Modes Single And Two Stage Models NEMA 1 Case And Cover NEMA 4X Models Available White Backlight On Display Sensor Rated IP67 For Dust And Water (<1m) Resistance
Weight : 0.2 LBR
Model : 1309007-044
UPC-EAN : 094723142239
G1309007-044
119 Items
New
Data sheet
- Product Feature
- Anti-Short Cycle Compressor Delay For Cooling Applications Wide Temperature Range (-30F To 220F) (-34.4C To 104.4C) Wide Differential Adjustment (1F To 30F) (-17C To -1C)
- Keypad Lockout To Prevent End-User Alteration Of Settings 8 Foot Lead With Sensor Is Extendable Up To 400 Feet Using 18- Or 22-Gauge Thermostat Wire Easy 4-Step Set-Up Heavy-Duty Relay Is 1HP Rated
- LCD Read-Out For Sensor Temperature, Control Settings, And Relay Status High Amp Output Relay (FLA 16 Amps 120V AC And 8 Amps 208/240V AC) Single Stage EEPROM Memory Retains Control Settings During Power Outages
- Selectable F Or C Heating/Cooling Modes Single And Two Stage Models NEMA 1 Case And Cover NEMA 4X Models Available White Backlight On Display Sensor Rated IP67 For Dust And Water (<1m) Resistance
- With Its Wide Temperature Range, One And Two Stage Capability, Selectable Heating/Cooling Modes And Multi-Voltage Input, The ETC Is Designed To Provide Application Flexibility. Models Available Include 120/208/240V AC And 24V AC
- Weight
- 0.2 LBR
- Model
- 1309007-044
- UPC-EAN
- 094723142239
