Washing Machine Water Level Switch

A washing machine water level switch is a crucial component that helps regulate the amount of water entering the machine. It ensures that the washer fills with the correct amount of water for the selected load size. Here's an overview of its function and symptoms indicating it may need to be replaced: Function of the Water Level Switch:

Detects Water Level: The switch senses the water level in the washing machines tub.

Regulates Water Intake: Based on the water level detected, it signals the water inlet valve to open or close, allowing the correct amount of water to enter the machine.

Ensures Proper Operation: It helps maintain the balance between the amount of water and the load, which is essential for efficient washing and spinning.

Symptoms Indicating the Water Level Switch Needs Replacement:

Overfilling or Underfilling: If the washing machine consistently fills with too much or too little water, the switch may be malfunctioning.

No Water Fill: The machine does not fill with water at all, despite being turned on and set to start a cycle.

Stops Mid-Cycle: The washing machine may stop unexpectedly during a cycle if the switch isn't accurately detecting water levels.

Continuous Filling: Water continuously fills the machine and does not stop, potentially causing overflow.

Error Codes: Some modern washing machines display error codes related to water level issues, indicating a problem with the switch.

Incorrect Water Level for Load Size: The water level doesn't correspond to the load size setting, leading to either too much or too little water for the amount of laundry.

Non-Spinning or Non-Draining: The washer may not proceed to the spin or drain cycle because it cannot detect the water level correctly.

Diagnosing and Replacing the Water Level Switch:

Visual Inspection: Check for any visible signs of damage or corrosion on the switch and its tubing.

Continuity Test: Use a multimeter to test for continuity. A lack of continuity can indicate a faulty switch.

Pressure Hose: Inspect the pressure hose connected to the switch for any clogs or leaks, as these can also cause water level detection issues.

Replacement: If diagnosed as faulty, replacing the switch involves disconnecting the machine from power, removing the control panel, and installing a new switch according to the manufacturer's instructions.

If you are experiencing any of the above symptoms and suspect the water level switch might be the culprit, it might be time to test and potentially replace it to ensure your washing machine functions correctly.

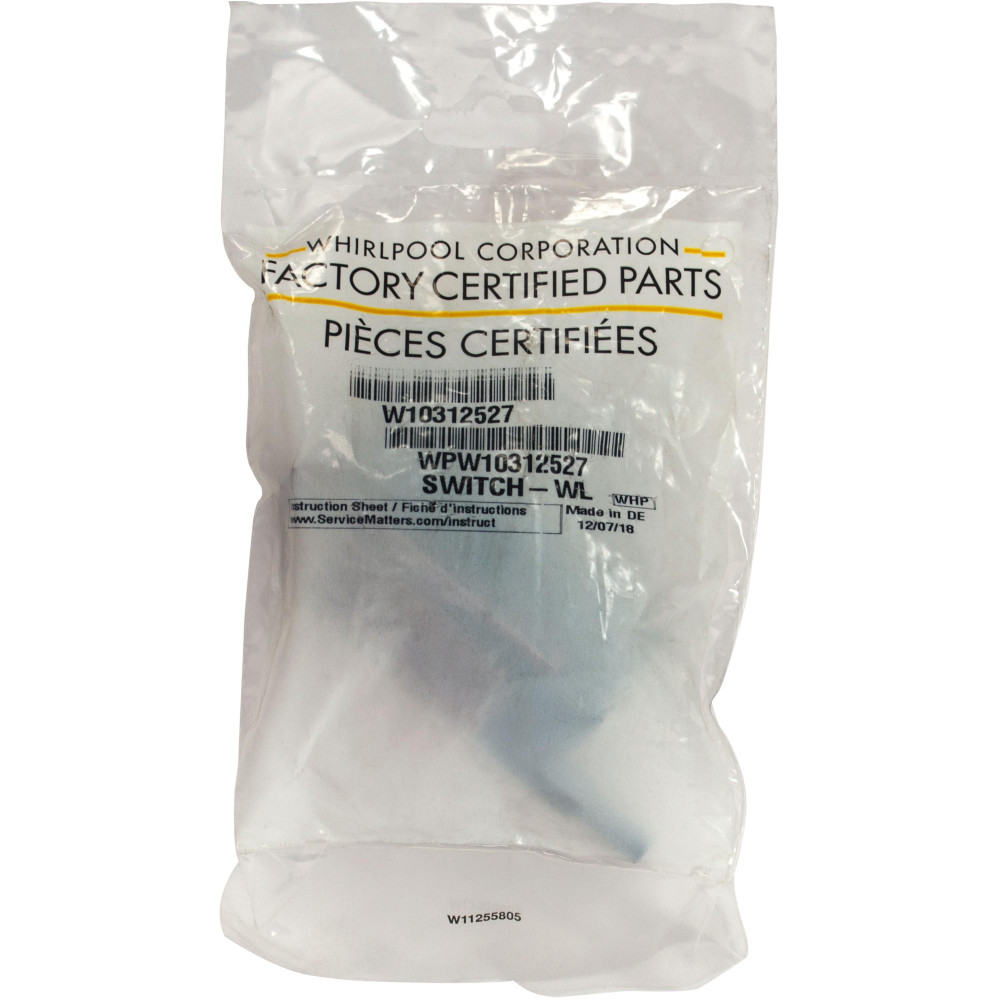

This part various part numbers included but not limited to:WPW10312527, W10312527, 1790072, PS11752588

This part fits various models including but not limited to:7MMHW7000YG0,7MMHW7000YW0,7MWFW95HEYL0,MHW7000XG0,MHW7000XG1,MHW7000XG2,MHW7000XR0,MHW7000XR1,MHW7000XR2,MHW7000XW0,MHW7000XW1,MHW7000XW2,MHW9000YG0,MHW9000YR0,MHW9000YW0,WFW95HEXL0,WFW95HEXL1,WFW95HEXL2,WFW95HEXR0,WFW95HEXR1,WFW95HEXR2,WFW95HEXW0,WFW95HEXW1,WFW95HEXW2,WFW97HEXL0,WFW97HEXL1,WFW97HEXL2,WFW97HEXL3,WFW97HEXR0,WFW97HEXR1,WFW97HEXR2,WFW97HEXR3,WFW97HEXW0,WFW97HEXW1,WFW97HEXW2,WFW97HEXW3
