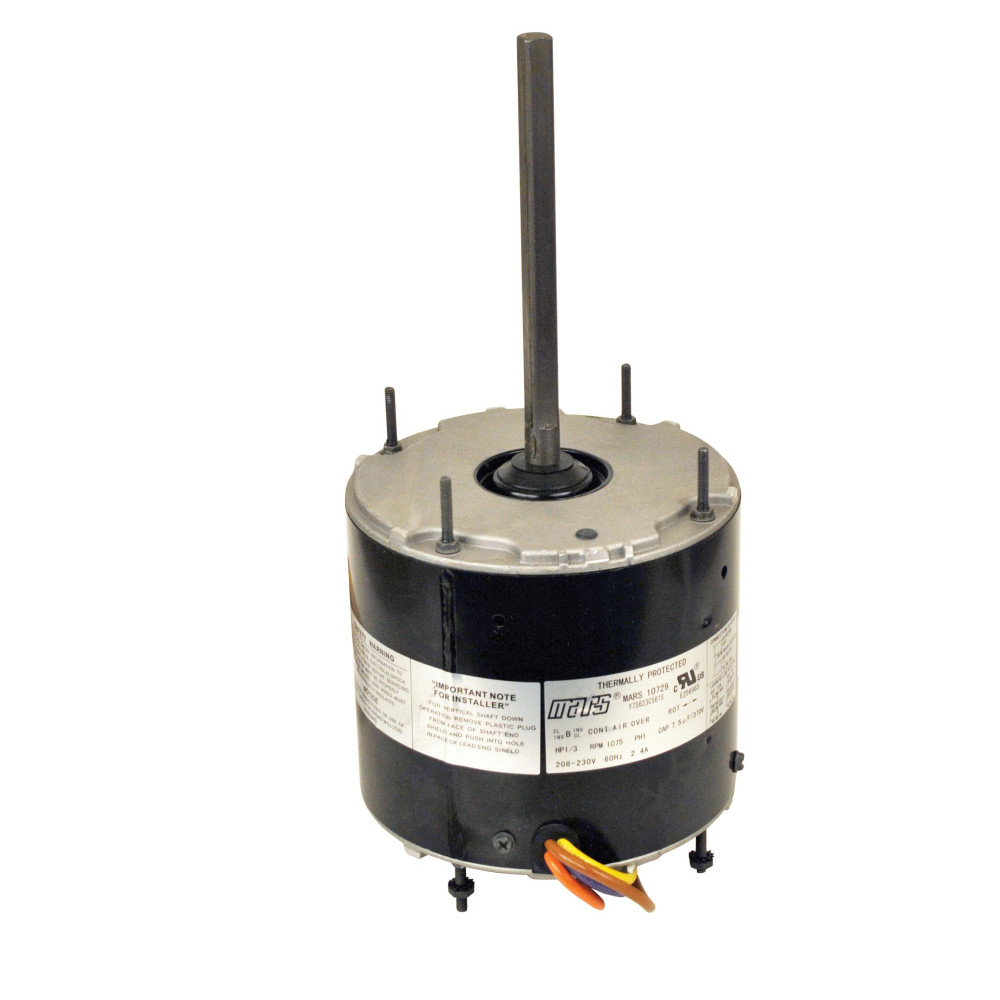

MARS 10731 Outdoor Condenser Fan Motor 3/4HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 10mfd/370VAC Run Capacitor

MARS 10731 Outdoor Condenser Fan Motor 3/4HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 10mfd/370VAC Run Capacitor

$200.77

MARS 10731 Outdoor Condenser Fan Motor 3/4HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 10mfd/370VAC Run Capacitor

SKU
G10731

Out of Stock
MARS 10731 Outdoor Condenser Fan Motor 3/4HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 10mfd/370VAC Run Capacitor
MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Volume : 0.5 FTQ

Weight : 18.0 LBR
Model : 10731
UPC-EAN : 685744107316

Condenser fan motor for Air conditioning outside unit

This product replaces original part numbers and models not limited to:

FSE1076S, 1868, D933, 3731, 01-0164, 43731, 51-42534-19, P257-8731, WG840731, S1-FHM3731, 5KCP39SGT3098, 63131, SE3731

G10731
New

Data sheet

Product Feature
  • All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
  • A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
  • Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
  • MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
  • Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
  • Weight
    18.0 LBR
    Volume
    0.5 FTQ
    Model
    10731
    UPC-EAN
    685744107316
