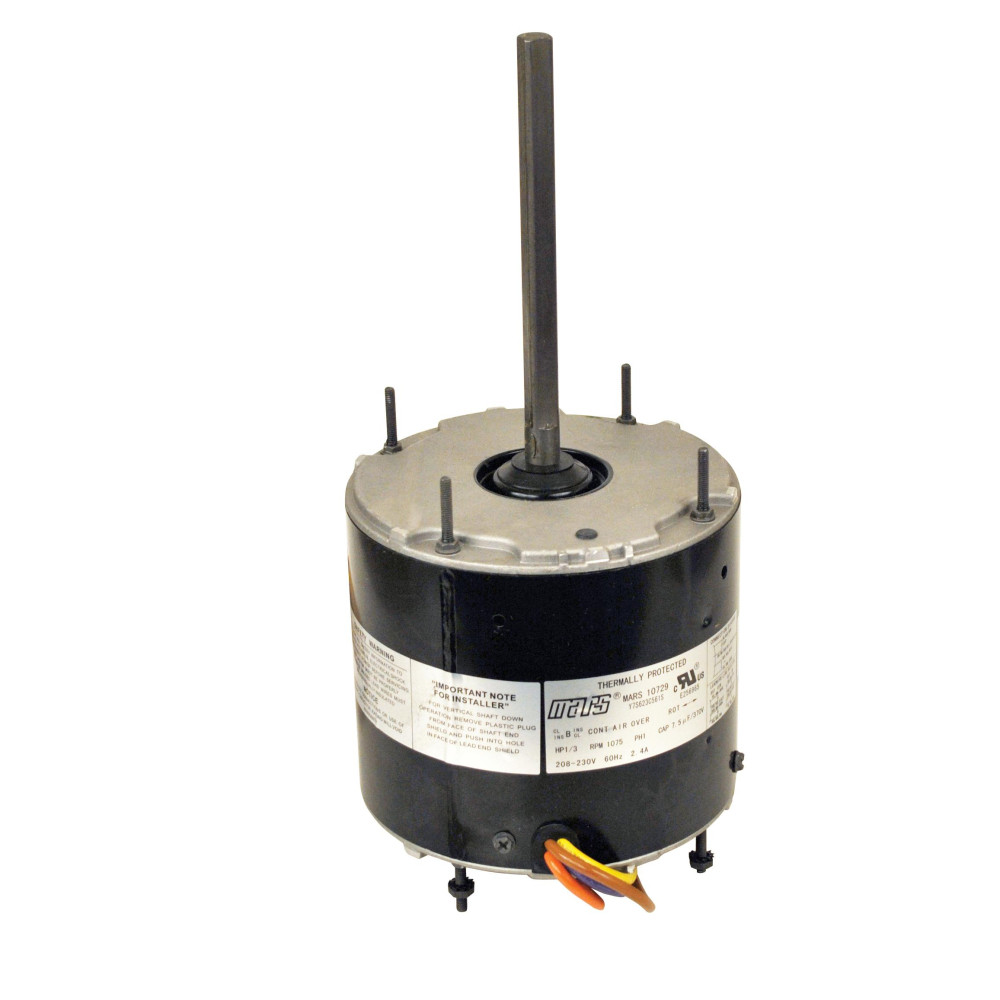

MARS 10729 Outdoor Condenser Fan Motor 1/3HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 7.5mfd/370VAC Run Capacitor
$132.68
MARS 10729 Outdoor Condenser Fan Motor 1/3HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 7.5mfd/370VAC Run Capacitor
SKU
G10729
MARS 10729 Outdoor Condenser Fan Motor 1/3HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 7.5mfd/370VAC Run Capacitor
MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Volume : 0.58 FTQ
Weight : 16.0 LBR
Model : 10729
UPC-EAN : 685744107293
MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Volume : 0.58 FTQ
Weight : 16.0 LBR
Model : 10729
UPC-EAN : 685744107293
G10729
New
Data sheet
- Product Feature
- All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
- A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
- Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
- MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
- Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
- Weight
- 16.0 LBR
- Volume
- 0.58 FTQ
- Model
- 10729
- UPC-EAN
- 685744107293
