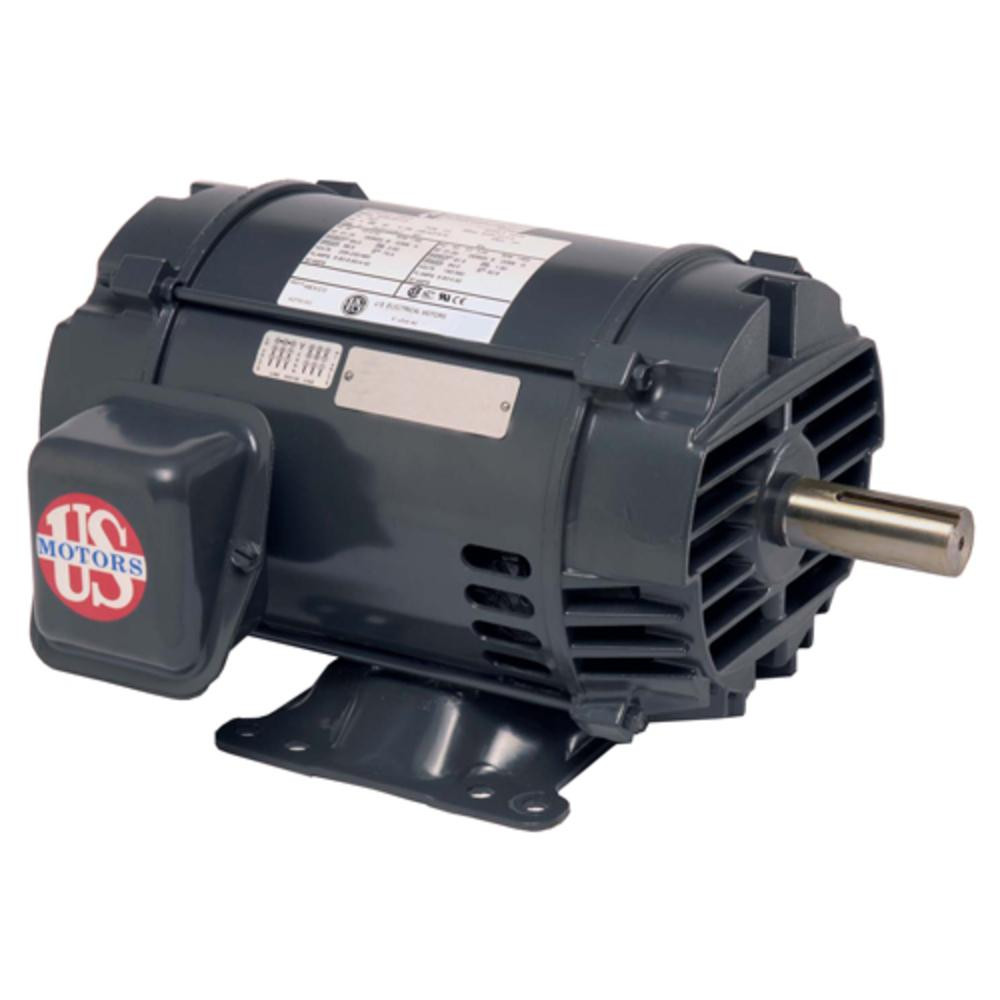

US Motors 5 hp 1760/1750 rpm, 4 poles, 1 shaft, Dp Enclosure, 1 speed, 184frame 208-230 V/460, 60 hz, 3 ph, D5PA2A DC20
US Motors 5 hp 1760/1750 rpm, 4 poles, 1 shaft, Dp Enclosure, 1 speed, 184frame 208-230 V/460, 60 hz, 3 ph, D5PA2A DC20
US Motors 5 hp 1760/1750 rpm, 4 poles, 1 shaft, Dp Enclosure, 1 speed, 184frame 208-230 V/460, 60 hz, 3 ph, D5PA2A DC20

US Motors 5 hp 1760/1750 rpm, 4 poles, 1 shaft, Dp Enclosure, 1 speed, 184frame 208-230 V/460, 60 hz, 3 ph, D5PA2A DC20

$768.26
Price per Each

US Motors 5 hp 1760/1750 rpm, 4 poles, 1 shaft, Dp Enclosure, 1 speed, 184frame 208-230 V/460, 60 hz, 3 ph, D5PA2A DC20

SKU
GD5PA2A

Out-of-Stock
US Motors 5 hp 1760/1750 rpm, 4 poles, 1 shaft, Dp Enclosure, 1 speed, 184frame 208-230 V/460, 60 hz, 3 ph, D5PA2A DC20

Weight : 12.0 LBR
Model : FV44

Specifications

  • Model: Catalog D5PA2A, model FV44
  • Type: Three-phase, open drip-proof
  • Frame: NEMA 184T, foot mount
  • Full load current: 13.7-12.4/6.2 A
  • Service factor: 1.15
  • Poles: 4

Typical uses: centrifugal pumps, cooling tower and air handler fans, blowers and compressors. Confirm the model and the electrical supply before installing.

GD5PA2A
New

Data sheet

Weight
12.0 LBR
Model
FV44
