Appli Parts APAC-22024 Heavy Duty Contactor 2 Poles 20A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Price per Each
Appli Parts APAC-22024 Heavy Duty Contactor 2 Poles 20A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

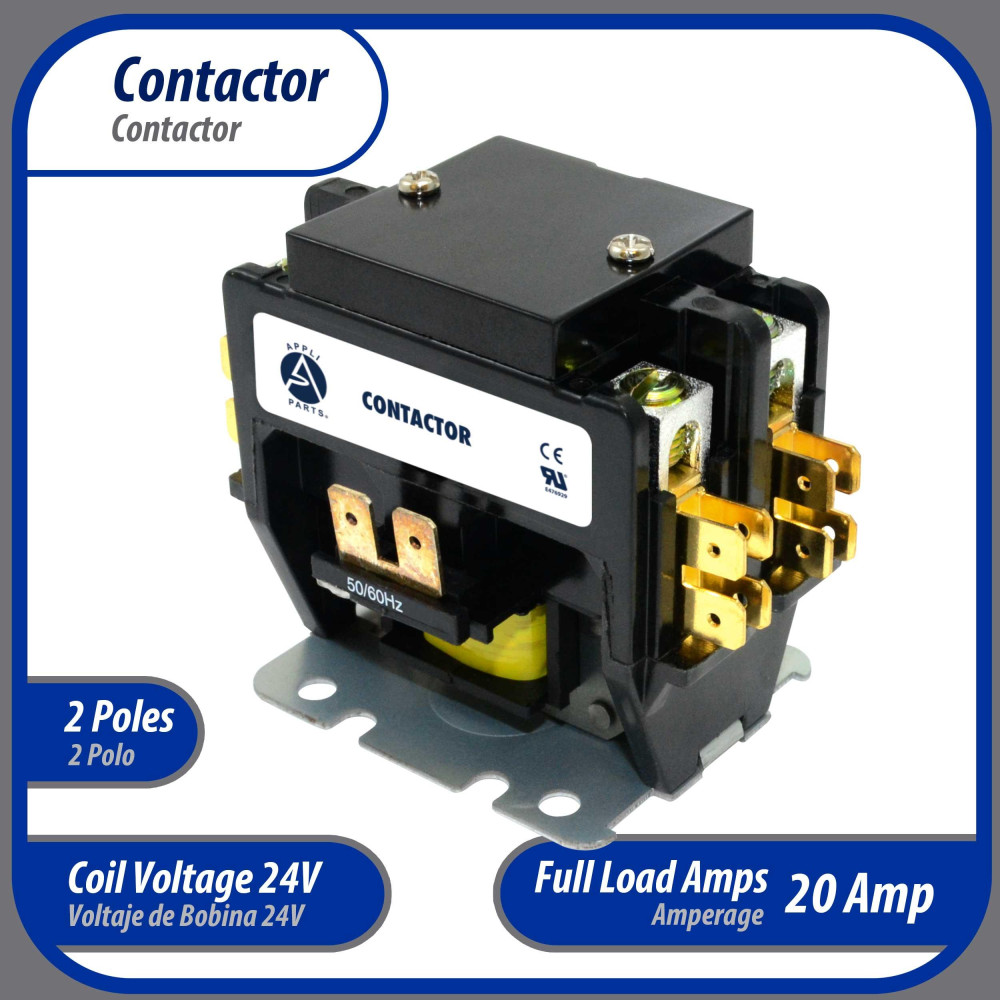

Application: Heavy-duty 2 Poles 20A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 11 Ohm (DC measurement, coil 24V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C220A / 17121 / 17125 / 45CG20AJ / C25BNB220T / HCCY2XQ00AA303 / L41-430 Confirm cross-reference and specifications before replacement.
Weight : 0.66 LBR
Volume : 0.01383011 FTQ
Model : APAC-22024
UPC-EAN : 814245021863
Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929
This product replaces several part numbers, models and brands not limited to:
6GNV3, 6GNZ1, 49C066, C25BNB220T, C220A, DP2020A5022
Fits: B1CH090A50A, B1CH090A58A, B1CH120A25A, B1CH180A50A, B1HN090N13025C, B1HN090N13046C, B2CH120A50A, B2CH180A25A, B2CH180A46A, B2CH180A50A, B2CH180A58A, B3CH090A25A, B3CH090A46B, B3CH120A46B, B4CH090A58A, B4CH120A58A, BA-07C00ATAAA1A, BA-07C00ATATA1A, BA-07C00ATRAA1A, BA-07C00AWAAA1A, BA-07C00AWBAA1A, BA-07C00AWCAA1A, BA-07C00AWRAA1A, BA-07C00BTCAA1A, BA-07C00BTRAA1A, BA-07C00NTAAA1A, BA-07C00NWAAA1A, BA-07C00PWBAA1A, BA-10C00ATAAA1A, BA-10C00ATRAA1A, BA-10C00AWAAA1A, BA-10C00AXAAA1A, BA-10C00BTAAA1A, BA-10C00BTCAA1A, BA-10C00BTRAA1A, BA-10C00NTAAA1A, BA-10C00NTCAA1A, BA-10C00NTDAA1A, BA-10C00NWAAA1A, BA-12C00ATAAA1A, BA-12C00AWAAA1A, BA-12C00AWRAA1A, BA-12C00BTAAA1A, BA-12C00NTAAA1A, BA-15C00ATAAA1A, BA-15C00AWAAA1A, BA-15C00BTAAA1A, BA-15C00BTBAA1A, BA-15C00BWEAA1A, BA-15C00PWAAA1A, BA-15E18ATAAA1A, BA-15E18AWAAA1A, BA-15E18AXAAA1A, BA-15E18BWBAA1A, BA-15E18QWKAA1A, BA-15E36ATAAA1A, BA-15E36AWAAA1A, BA-15E36AWBAA1A, BA-15E36BTAAA1A, BA-15E36BWKAA1A, BA-15E36DWAAA1A, BA-15E36NTAAA1A, BA-15E36QWLAA1A, BA-15E54ATAAA1A, BA-15E54ATBAA1A, BA-15E54BWAAA1A, BA-15E54BWMAA1A, BA-15E54CWAAA1A, BA-15E54NTAAA1A, BA-15E72ATAAA1A, BA-15E72AWAAA1A, BACB-T090AA, BACB-T120AA, BACB-W090AA, BACB-W120AA, BACB-X090AA, BACB-X120AA, BB-05E30AWAAA1A, BB-20C00ATAAA1A, BB-20C00ATDAA1A, BB-20C00AWAAA1A, BB-20C00BWAAA1A, BB-20C00NWAAA1A, BB-20C00PWAAA1A, BB-20E18QWKAA1A, BB-20E36ATAAA1A, BB-20E36AWAAA1A, BB-20E36CWAAA1A, BB-20E36NTAAA1A, BB-20E36QWLAA1A, BB-20E54AWAAA1A, BB-20E54BTAAA1A, BB-20E54QWLAA1A, BB-20E72ATAAA1A, BB-20E72ATBAA1A, BC090E24A7AAE3, BCCB-T090AA, BCCB-T120AA, BCCB-W090AA, BCCB-W120AA, BDCB-X090AA, BDCB-X120AA, BP036E05N2AAA1, BP036E05P2DZZ10001
Data sheet
- Product Feature
- Application: Heavy-duty 2 Poles 20A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C220A / 17121 / 17125 / 45CG20AJ / C25BNB220T / HCCY2XQ00AA303 / L41-430 Confirm cross-reference and specifications before replacement.
- Coil Data: Resistance 11 Ohm (DC measurement, coil 24V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 0.66 LBR
- Volume
- 0.01383011 FTQ
- Model
- APAC-22024
- UPC-EAN
- 814245021863
