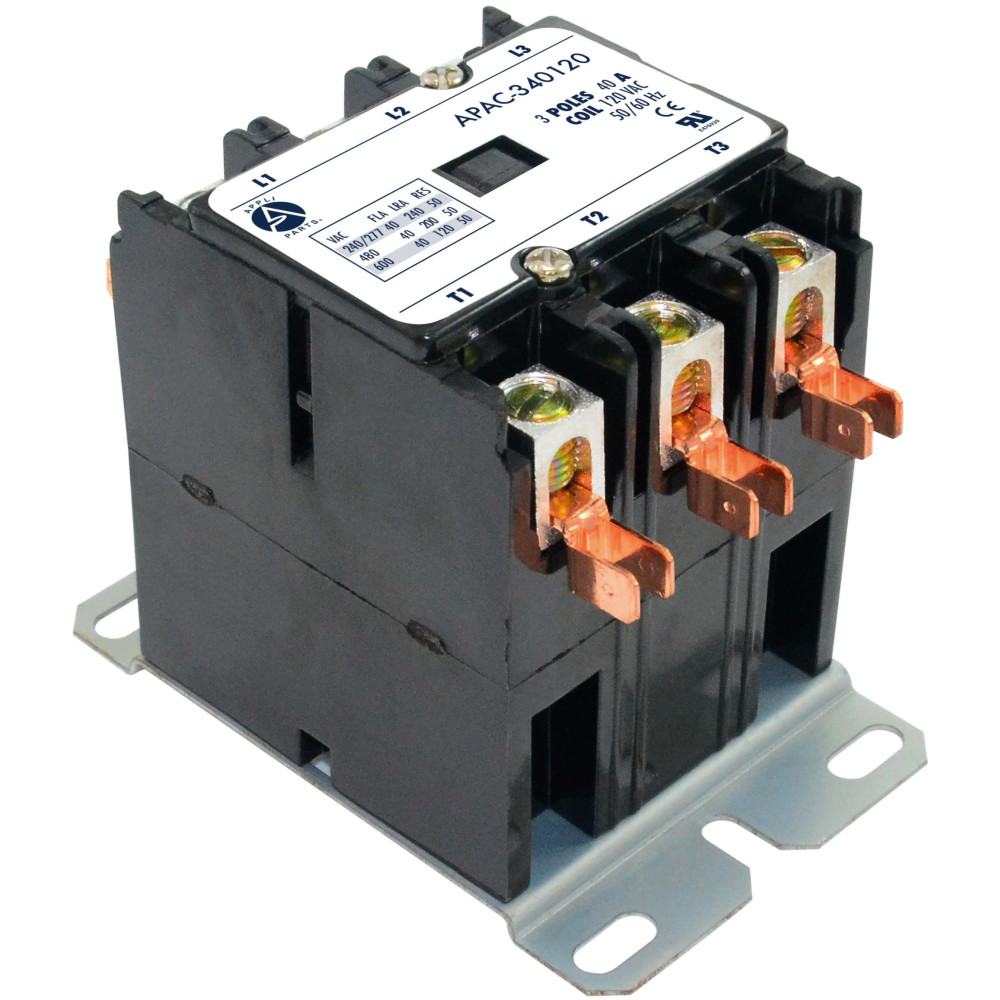

Appli Parts APAC-340120 Heavy Duty Contactor 3 Poles 40A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-340120 Heavy Duty Contactor 3 Poles 40A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$33.17
Price per Each

Appli Parts APAC-340120 Heavy Duty Contactor 3 Poles 40A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 3 Poles 40A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.

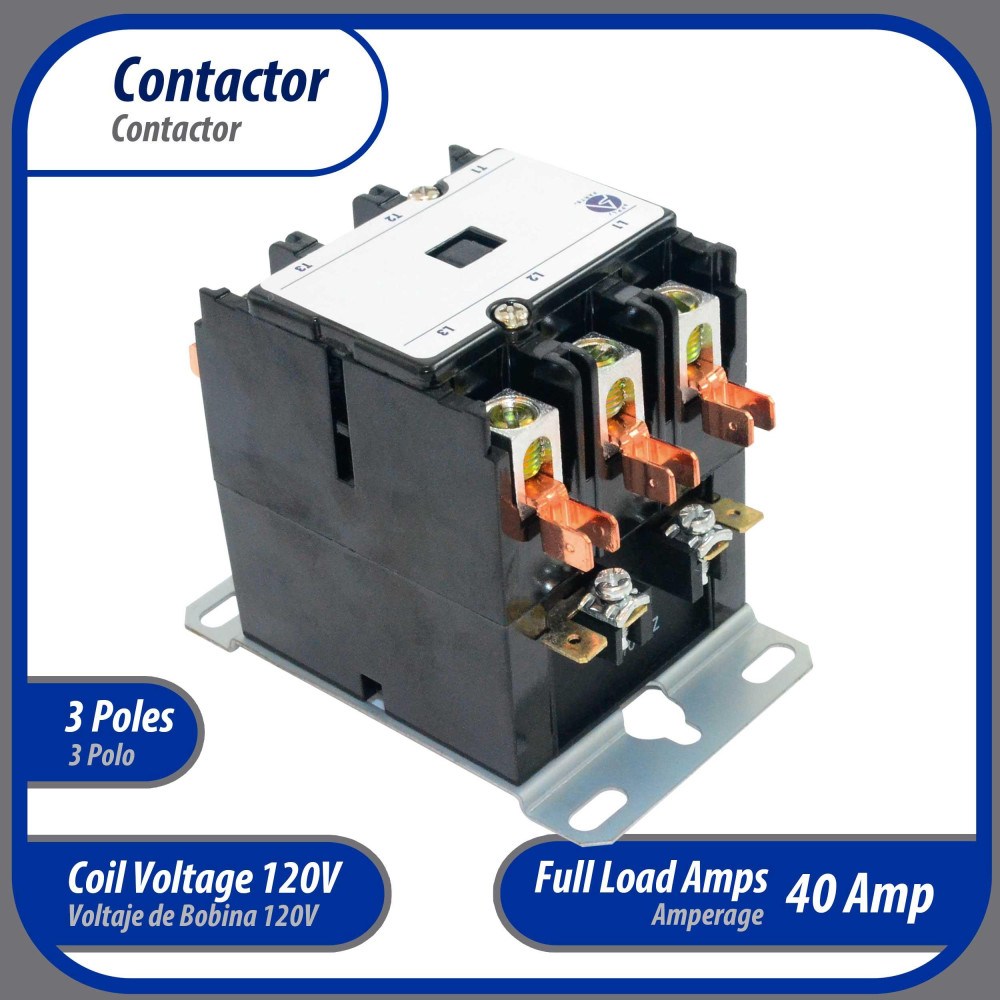

Ratings: 3 Poles 40A full load (FLA). Locked rotor (LRA): 240/277V 240A, 480V 200A, 600V 120A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 180 Ohm (DC measurement, coil 120V). Switching capacity: 50A (resistive load: FLA 40A, LRA: 240/277V at 240A, 480V at 200A, 600V at 120A). Nominal Inrush 65VA at 50Hz / 60VA at 60Hz, Nominal Sealed 7.5VA at 50Hz / 6VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C340B / 17436 / 42CF35AFBCC / 453AD3ABB / C25DNF340A / GDP4031 / HCCY3XT04CJ303 Confirm cross-reference and specifications before replacement.

Weight : 0.98 LBR
Volume : 0.01880787 FTQ
Model : APAC-340120
UPC-EAN : 814245022044

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

01-0128, 5KAL5, 6GNX4, 42CF35AF, 42CF35AFBCC, 49C085, 90-171, 453AD3ABB, 8910DPA43V02, 17436, 61446, C25DND340A, C25DNF340A, C25DNY162T, C340B, CR453AD3ABB, CTR02731, CTR2578, DP2040B1002, EC403120, GDP4031, HCCY3XT04CJ303, P282-0432A, SE3708M, TMX340B2, XTCE040D00A

SKU G0323.4031

Condition New

Data sheet

Product Feature: Application: Heavy-duty 3 Poles 40A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C340B / 17436 / 42CF35AFBCC / 453AD3ABB / C25DNF340A / GDP4031 / HCCY3XT04CJ303 Confirm cross-reference and specifications before replacem
Coil Data: Resistance 180 Ohm (DC measurement, coil 120V). Switching capacity: 50A (resistive load: FLA 40A, LRA: 240/277V at 240A, 480V at 200A, 600V at 120A). Nominal Inrush 65VA at 50Hz / 60VA at 60Hz, Nominal Sealed 7.5VA at 50Hz / 6VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 3 Poles 40A full load (FLA). Locked rotor (LRA): 240/277V 240A, 480V 200A, 600V 120A, UL Certified E476929 for reliable operation and long service life.
Weight: 0.98 LBR
Volume: 0.01880787 FTQ
Model: APAC-340120
UPC-EAN: 814245022044
