Appli Parts APAC-350120 Heavy Duty Contactor 3 Poles 50A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-350120 Heavy Duty Contactor 3 Poles 50A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$59.92
Price per Each

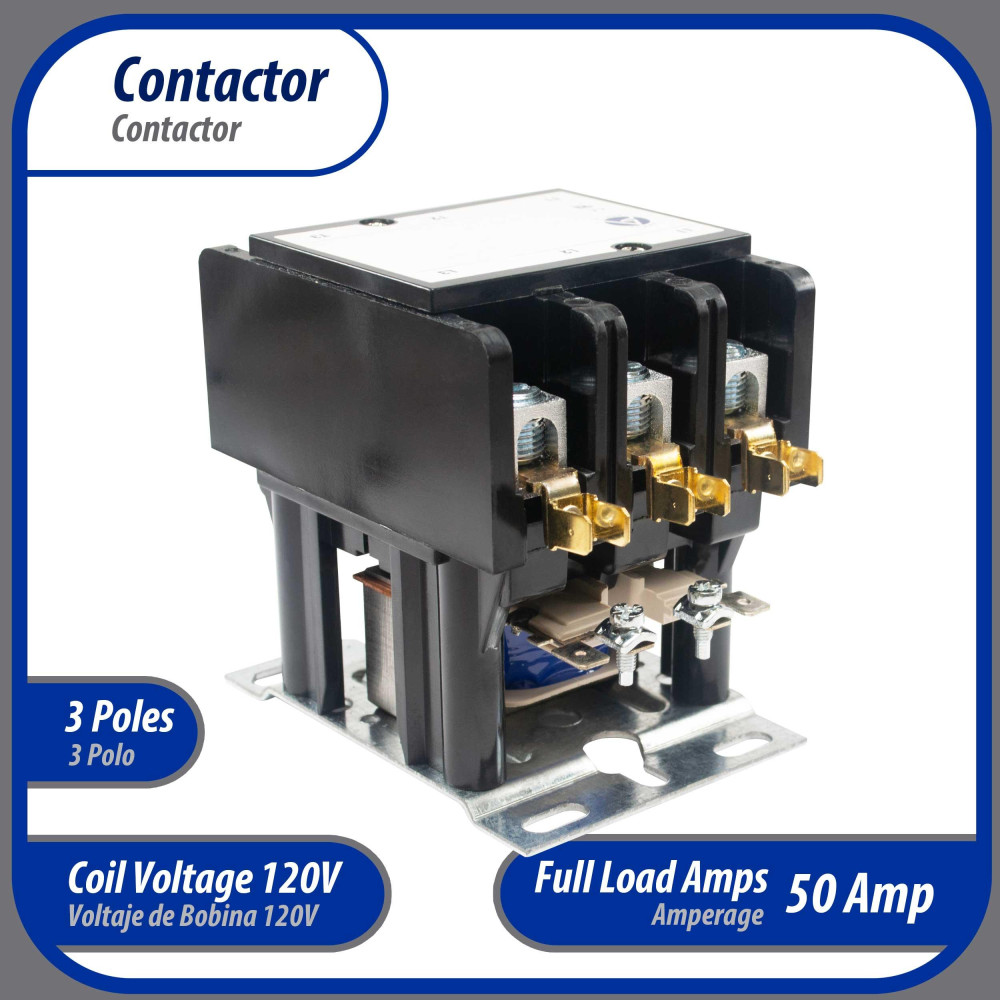

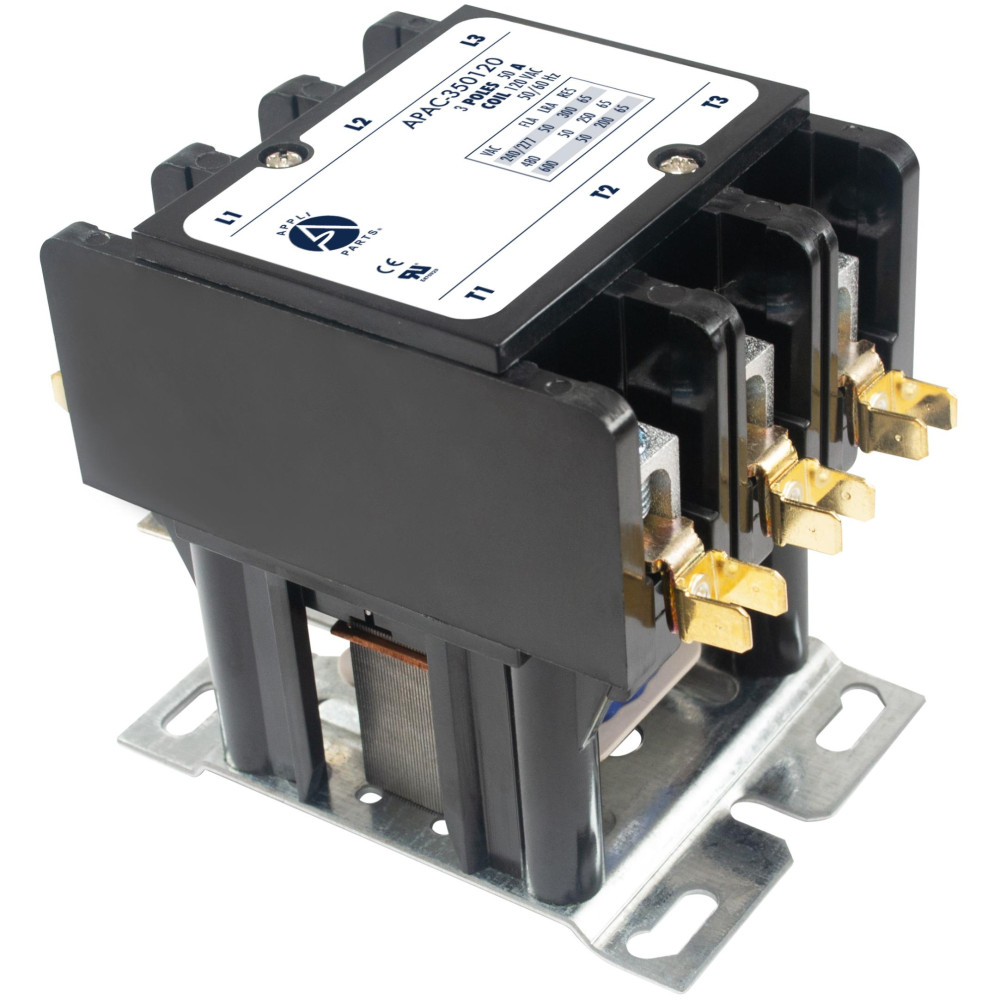

Appli Parts APAC-350120 Heavy Duty Contactor 3 Poles 50A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 3 Poles 50A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 50A full load (FLA). Locked rotor (LRA): 240/277V 300A, 480V 250A, 600V 200A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 45 Ohm (DC measurement, coil 120V). Switching capacity: 65A (resistive load: FLA 50A, LRA: 240/277V at 300A, 480V at 250A, 600V at 200A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C350B / 17536 / 42DF35AF / 42DF35AFBCF / C25DNJ350A / CR353FE3BA1 / GDP5031 / HCCY3XT05CJ303 Confirm cross-reference and specifications before replacement.

Weight : 1.9 LBR
Volume : 0.03111437 FTQ
Model : APAC-350120
UPC-EAN : 814245022051

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

01-0131, 6GNW8, 42DF35AF, 42DF35AFBCF, 49C088, 912-3050-01, 8910DPA53V02, 8910MO3, 13620, 17536, 61461, 61462, 91532, 100110093, 912305001, C3L50B, C25DNJ350A, C25FNF350A, C350B, CON-3/120/50, CR353FE3BA1, CTR2588, DP3050B1009, DP3050B5000, DP3050B5001, DP350120F, DP501203, DP503120, DPE503120, EC503120, GDP5031, HCCY3XT05CJ303, SE3711M, TMX350B2

SKU G0323.5031

Condition New

Data sheet

Product Feature: Application: Heavy-duty 3 Poles 50A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C350B / 17536 / 42DF35AF / 42DF35AFBCF / C25DNJ350A / CR353FE3BA1 / GDP5031 / HCCY3XT05CJ303 Confirm cross-reference and specifications be
Coil Data: Resistance 45 Ohm (DC measurement, coil 120V). Switching capacity: 65A (resistive load: FLA 50A, LRA: 240/277V at 300A, 480V at 250A, 600V at 200A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 3 Poles 50A full load (FLA). Locked rotor (LRA): 240/277V 300A, 480V 250A, 600V 200A, UL Certified E476929 for reliable operation and long service life.
Weight: 1.9 LBR
Volume: 0.03111437 FTQ
Model: APAC-350120
UPC-EAN: 814245022051
