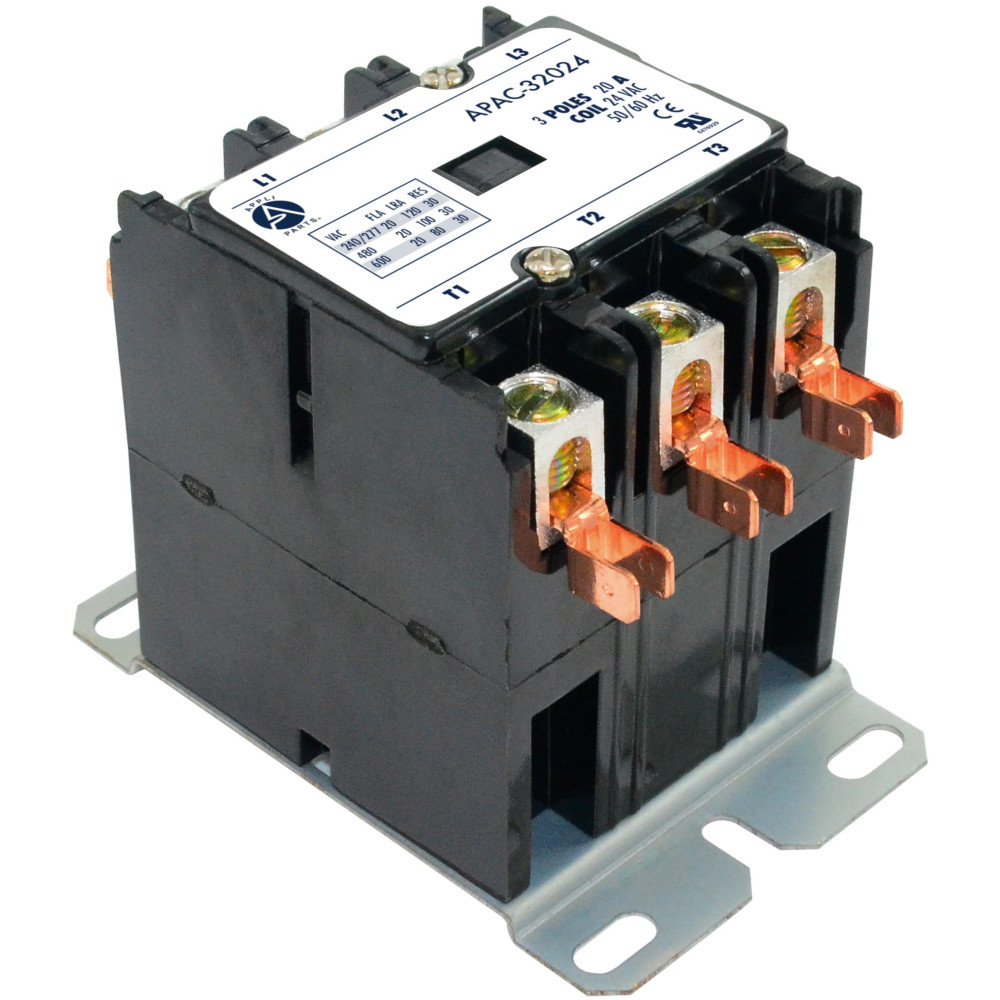

Appli Parts APAC-32024 Heavy Duty Contactor 3 Poles 20A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
$43.87
Price per Each
Price per Each
Appli Parts APAC-32024 Heavy Duty Contactor 3 Poles 20A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
SKU
G0323.0203
Appli Parts APAC-32024 Heavy Duty Contactor 3 Poles 20A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 3 Poles 20A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.

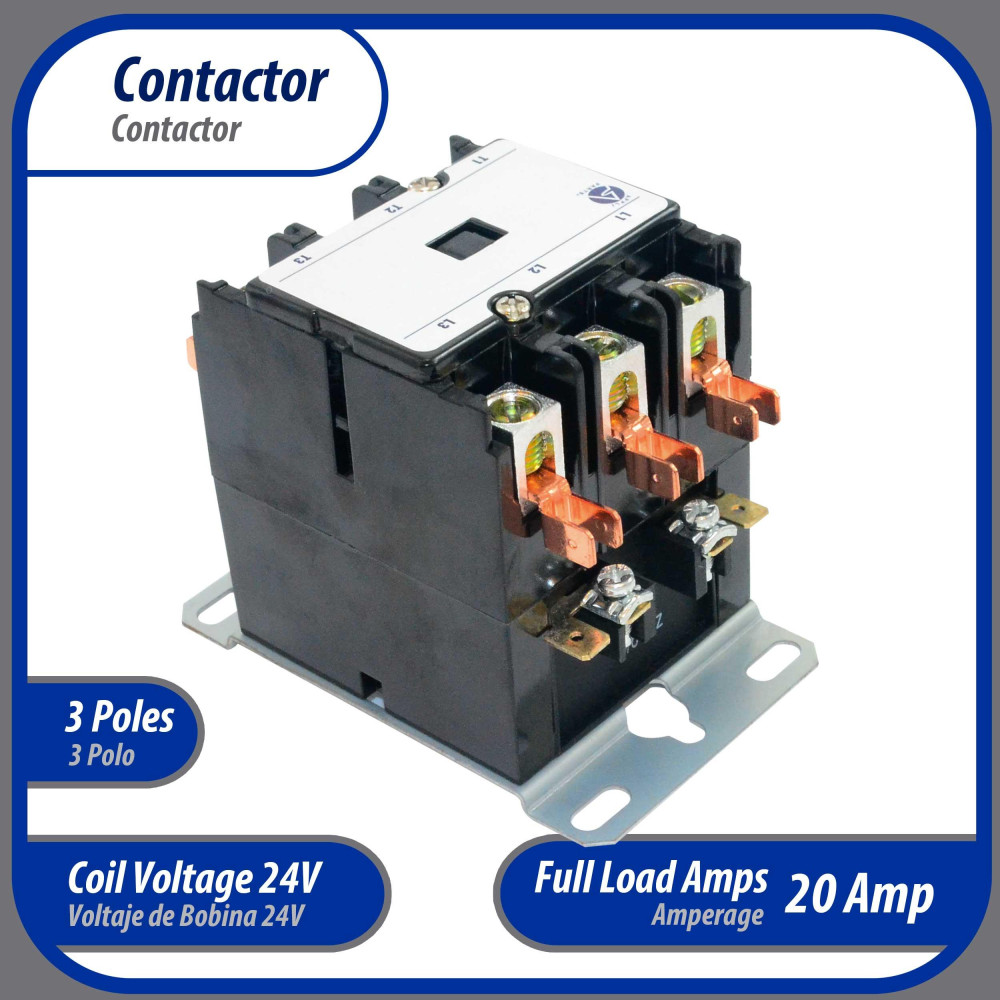

Ratings: 3 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 120A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 7 Ohm (DC measurement, coil 24V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 120A, 480V at 100A, 600V at 80A). Nominal Inrush 65VA at 50Hz / 60VA at 60Hz, Nominal Sealed 7.5VA at 50Hz / 6VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: 17335 / 17331 Confirm cross-reference and specifications before replacement.
Weight : 0.98 LBR
Volume : 0.01880787 FTQ
Model : APAC-32024
UPC-EAN : 814245021887
Application: Heavy-duty 3 Poles 20A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 120A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 7 Ohm (DC measurement, coil 24V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 120A, 480V at 100A, 600V at 80A). Nominal Inrush 65VA at 50Hz / 60VA at 60Hz, Nominal Sealed 7.5VA at 50Hz / 6VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: 17335 / 17331 Confirm cross-reference and specifications before replacement.
Weight : 0.98 LBR
Volume : 0.01880787 FTQ
Model : APAC-32024
UPC-EAN : 814245021887
G0323.0203
New
Data sheet
- Product Feature
- Application: Heavy-duty 3 Poles 20A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: 17335 / 17331 Confirm cross-reference and specifications before replacement.
- Coil Data: Resistance 7 Ohm (DC measurement, coil 24V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 120A, 480V at 100A, 600V at 80A). Nominal Inrush 65VA at 50Hz / 60VA at 60Hz, Nominal Sealed 7.5VA at 50Hz / 6VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 3 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 120A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 0.98 LBR
- Volume
- 0.01880787 FTQ
- Model
- APAC-32024
- UPC-EAN
- 814245021887
