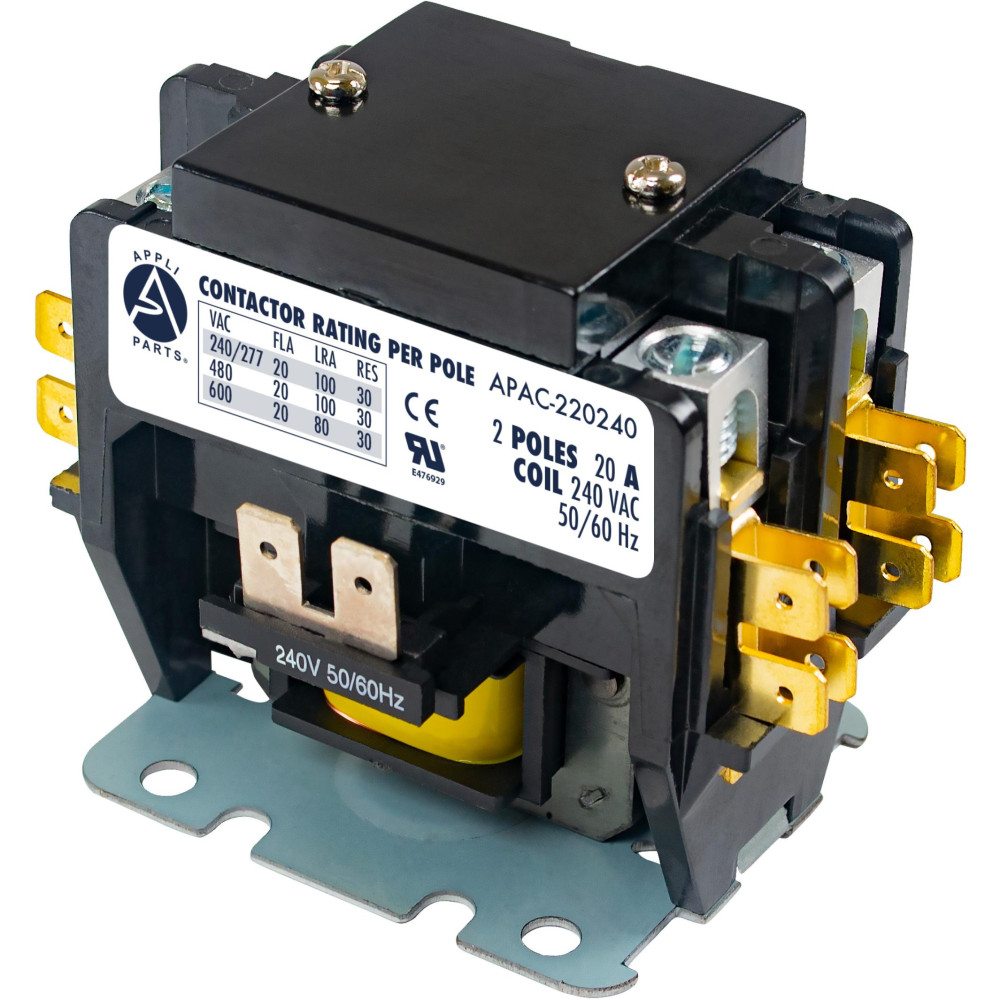

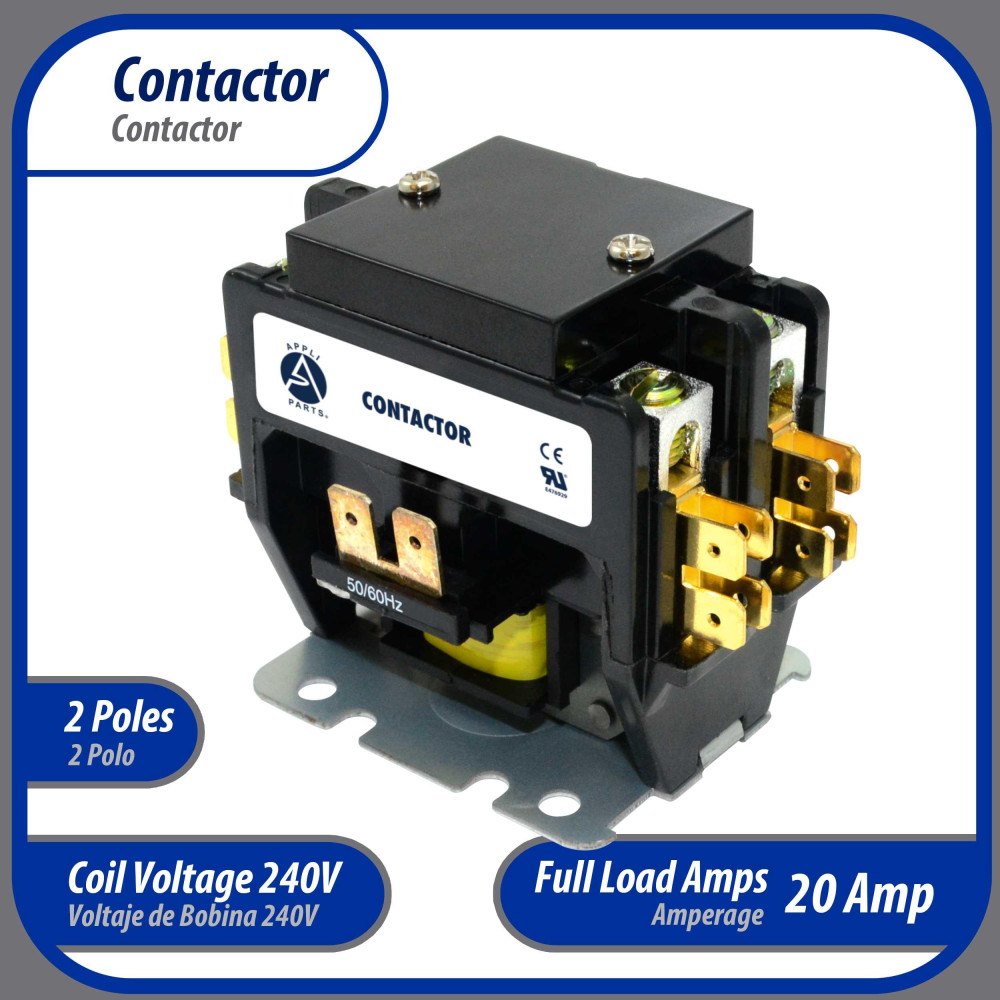

Appli Parts APAC-220240 Heavy Duty Contactor 2 Poles 20A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-220240 Heavy Duty Contactor 2 Poles 20A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$31.03
Price per Each

Appli Parts APAC-220240 Heavy Duty Contactor 2 Poles 20A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 2 Poles 20A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 1000 Ohm (DC measurement, coil 208/240V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230B / 17326 / 17322 / TJT30A120V2P / 17325 / PC230A / H230A / 90-244 Confirm cross-reference and specifications before replacement.

Weight : 0.83 LBR
Volume : 0.01208496 FTQ
Model : APAC-220240
UPC-EAN : 814245021870

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

2CF80, 5JGU8, 6GNR1, 6GNV2, 6GNV3, 45CG20AG, 49C068, 8910DP12V09, 8910DPA12V09, 17123, 17127, C25BNB220B, C220C, HCCY2XU00AA303, L41-432

SKU G0323.02022

Condition New

Data sheet

Product Feature: Application: Heavy-duty 2 Poles 20A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230B / 17326 / 17322 / TJT30A120V2P / 17325 / PC230A / H230A / 90-244 Confirm cross-reference and specifications before replacement.
Coil Data: Resistance 1000 Ohm (DC measurement, coil 208/240V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
Weight: 0.83 LBR
Volume: 0.01208496 FTQ
Model: APAC-220240
UPC-EAN: 814245021870
