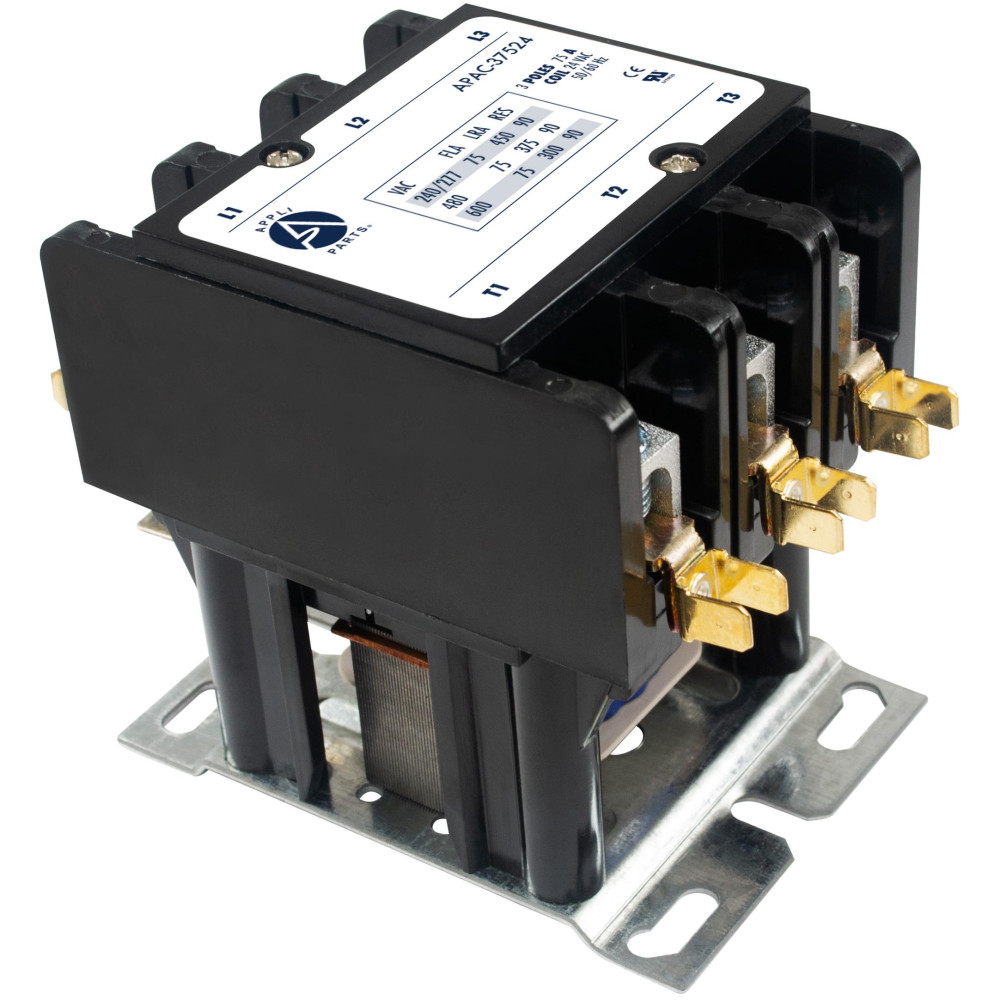

Appli Parts APAC-37524 Heavy Duty Contactor 3 Poles 75A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-37524 Heavy Duty Contactor 3 Poles 75A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$135.89
Price per Each

Appli Parts APAC-37524 Heavy Duty Contactor 3 Poles 75A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 3 Poles 75A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.

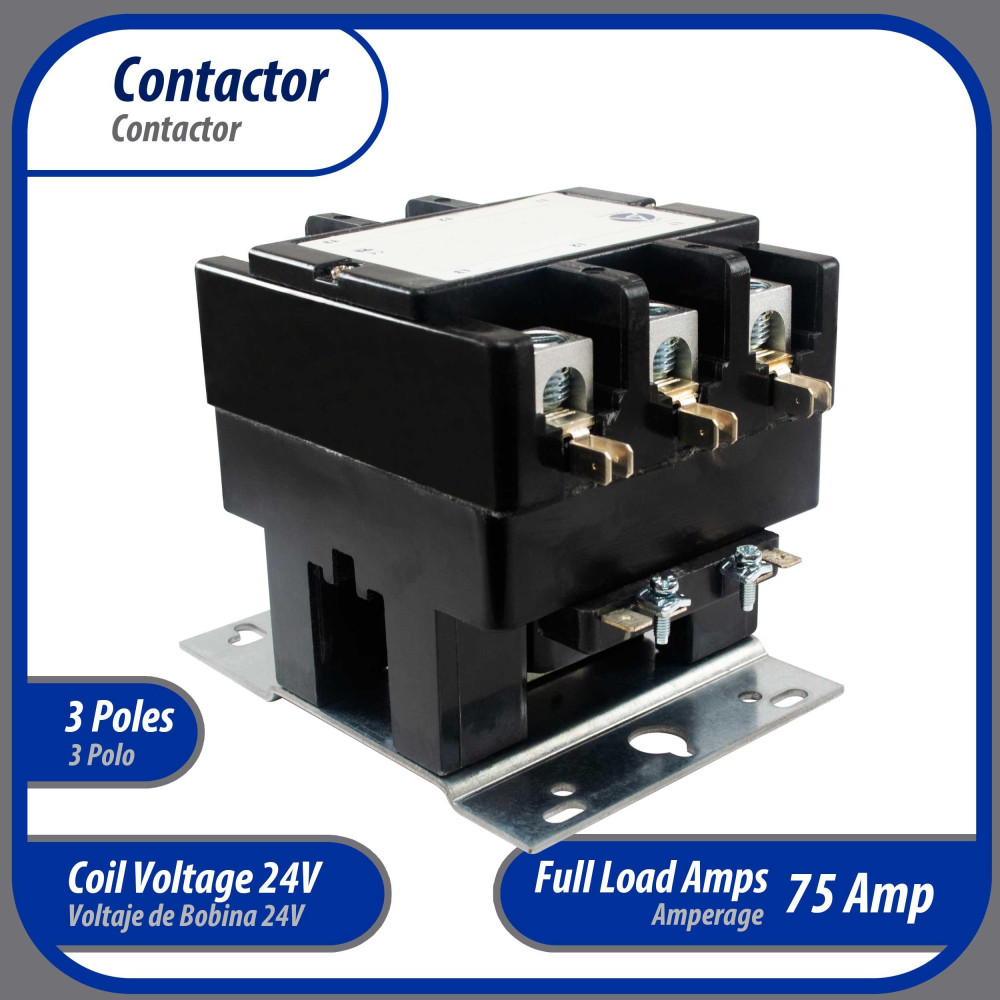

Ratings: 3 Poles 75A full load (FLA). Locked rotor (LRA): 240/277V 450A, 480V 375A, 600V 300A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 65 Ohm (DC measurement, coil 24V). Switching capacity: 90A (resistive load: FLA 75A, LRA: 240/277V at 450A, 480V at 375A, 600V at 300A). Nominal Inrush 285VA at 50Hz / 240VA at 60Hz, Nominal Sealed 42VA at 50Hz / 27VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C375A / 17735 Confirm cross-reference and specifications before replacement.

Weight : 3.73 LBR
Volume : 0.05570023 FTQ
Model : APAC-37524
UPC-EAN : 814245022082

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

912307500, C25FNF375T, EC75324, DPE75324, C25FNF375T, DPE75324, 42FE35AJ106, CON-3/24/75, DP3075A5008, DP3075A1007, DP37524F, 61480, 01-0135, C3L75A, C375A ,56JY11, 42FE35AJ, SE3717M, 8910DPA73V14, DP75243, TMX375A2

Fits: H1CE180A25D,H1CE180A25E,HA300C00A2AAA1A,HA300C00A2CAC2,HA300C00A2DAA2,HA300C00A4AAC2,HA300C00A4DAA2,HA300C00A5BAA2,HA300C00A7BAA2,HA300C00A7CAA2,HA300C00A7CAC2,HAHB-T180D,HAHB-T180E,HB480C00A4BAC2B,HB480C00A4DAA2B,HB480C00A5BAA2A,HB480C00A5BAA2B,HB480C00A7CAA2B,HB600C00A2AAA2B,HB600C00A2BAC2,HB600C00A2CAA2B,HB600C00A2DAC2,HB600C00A4CAA2B,HB600C00A4DAA2B,HB600C00A5CAA2A,HB600C00A5DAA2,HB600C00A7AAA2,HB600C00A7AAC2,HB600C00A7CAA2A,T22AW22R6KDEBG,T32AW22M3KBTBL0001,T32AW22Z5KBZCL0001

SKU G0323.753

Condition New

Data sheet

Product Feature: Application: Heavy-duty 3 Poles 75A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C375A / 17735 Confirm cross-reference and specifications before replacement.
Coil Data: Resistance 65 Ohm (DC measurement, coil 24V). Switching capacity: 90A (resistive load: FLA 75A, LRA: 240/277V at 450A, 480V at 375A, 600V at 300A). Nominal Inrush 285VA at 50Hz / 240VA at 60Hz, Nominal Sealed 42VA at 50Hz / 27VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 3 Poles 75A full load (FLA). Locked rotor (LRA): 240/277V 450A, 480V 375A, 600V 300A, UL Certified E476929 for reliable operation and long service life.
Weight: 3.73 LBR
Volume: 0.05570023 FTQ
Model: APAC-37524
UPC-EAN: 814245022082
