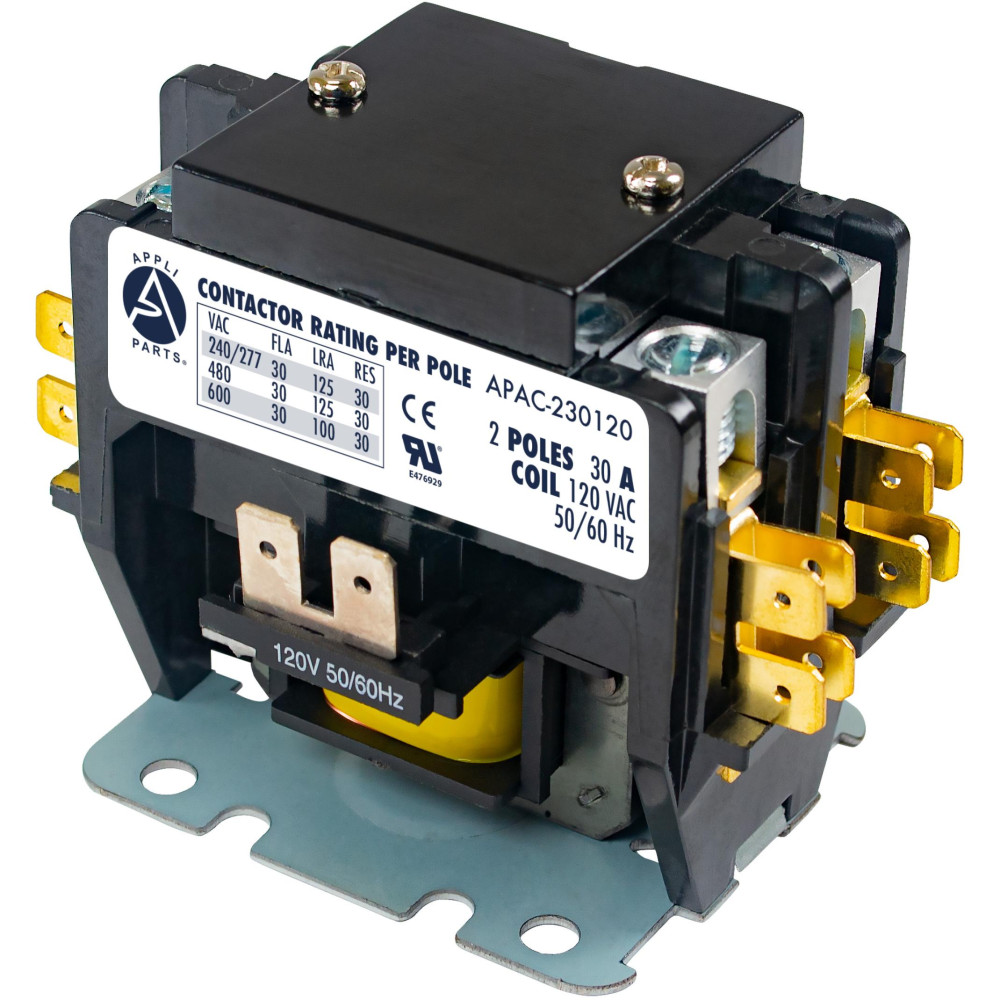

Appli Parts APAC-230120 Heavy Duty Contactor 2 Poles 30A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-230120 Heavy Duty Contactor 2 Poles 30A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$31.03
Price per Each

Appli Parts APAC-230120 Heavy Duty Contactor 2 Poles 30A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 2 Poles 30A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 30A full load (FLA). Locked rotor (LRA): 240/277V 125A, 480V 125A, 600V 100A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 30A (resistive load: FLA 30A, LRA: 240/277V at 125A, 480V at 125A, 600V at 100A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230B 17326 17322 TJT30A120V2P 17325 PC230A H230A 90-244 DP301202 Confirm cross-reference and specifications before replacement.

Weight : 0.83 LBR
Volume : 0.01443142 FTQ
Model : APAC-230120
UPC-EAN : 814245022013

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

912203001, C25BNB230A, 6GNY6, EC302120, 49C073, C2S30B, CR453CC2AAA, GDP3021, CON-2/120/30, HCC-2XT01AA, HCCY2XT02AA303, DP2030B5003, DP2030B1002, DP230120F, 17322, 17326, C230B, 45EG20AF, 45CG20AF, 45DG20AF, SE2735M, DP32VO2, 8910DP32V02, 5B126, 8910DPA32V02, 5KAJ5, 8910DP22V02, DP301202, TMX230B2, XMC0-252FBBC

Fits: B1SP090E01028B, B1SP090E01058B, B1SP090E02058B, B1SP090E03025B, B1SP090E04025B, B1SP120E01025B, B1SP120E02058B, B1SP120E04025B, B1SP120E04046B, B1SP120E04058B, D1CS090E01025A, D1CS090E01046A, D1CS090E02025A, D1CS090E02046A, D1CS090E03025A, D1CS090E03046A, D1CS090E04046A, D1CS120E01025A, D1CS120E01046A, D1CS120E02025A, D1CS120E02046A, D1CS120E03025A, D1CS120E03046A, D1CS120E04046A, H1CA240A25A, H1CA240A40A, H1CA240A46A, H1CA240A50A, H1CA240A58A, H1CA300A25A, H1CA300A40A, H1CA300A46A, H1CA300A50A, H1CA300A58A, H1CA360A25A, H1CA360A40A, H1CA360A46A, H1CA360A50A, H1CA360A58A, H1CA480A25A, H1CA480A46A, H1CA480A50A, H1CA600A25A, H1CA600A46A, H2CA300A25B, H2CA360A58B

SKU G0323.3021

Condition New

Data sheet

Product Feature: Application: Heavy-duty 2 Poles 30A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230B 17326 17322 TJT30A120V2P 17325 PC230A H230A 90-244 DP301202 Confirm cross-reference and specifications before replacement.
Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 30A (resistive load: FLA 30A, LRA: 240/277V at 125A, 480V at 125A, 600V at 100A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 2 Poles 30A full load (FLA). Locked rotor (LRA): 240/277V 125A, 480V 125A, 600V 100A, UL Certified E476929 for reliable operation and long service life.
Weight: 0.83 LBR
Volume: 0.01443142 FTQ
Model: APAC-230120
UPC-EAN: 814245022013
