Appli Parts APAC-350240 Heavy Duty Contactor 3 Poles 50A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-350240 Heavy Duty Contactor 3 Poles 50A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$84.53
Price per Each

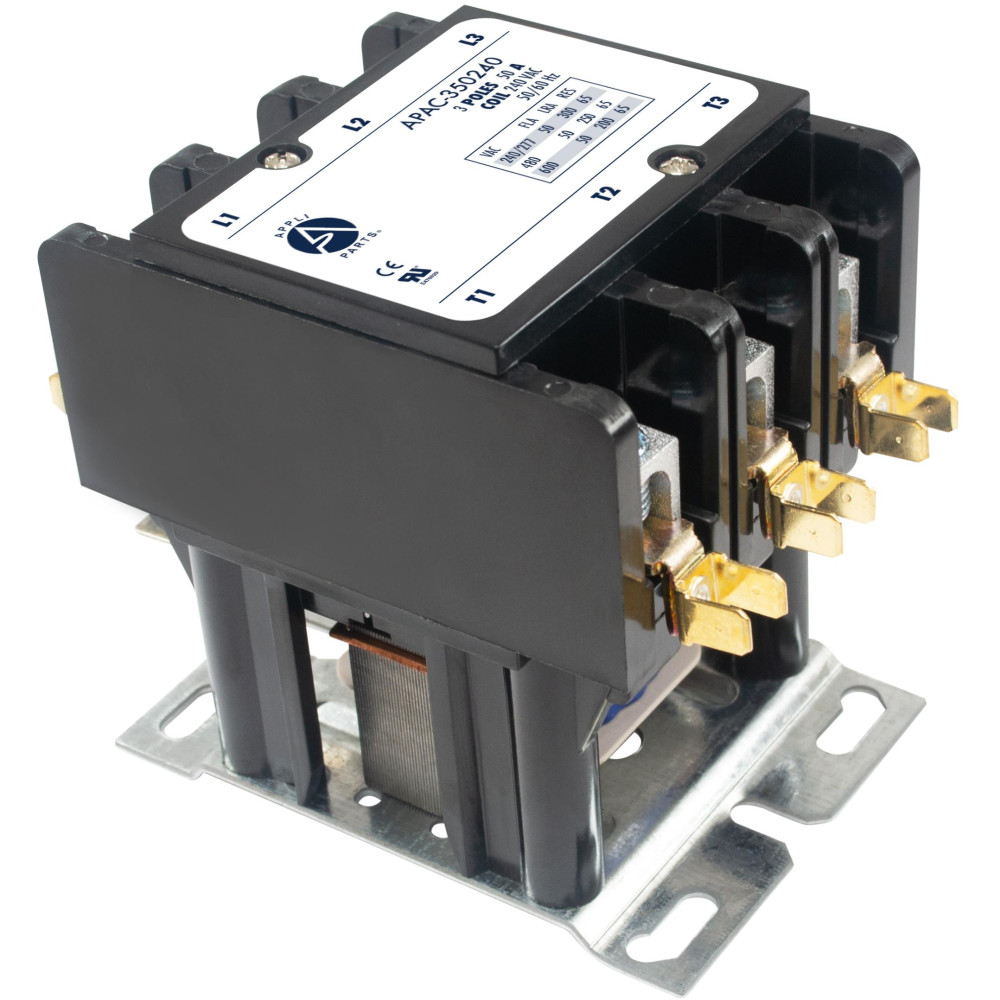

Appli Parts APAC-350240 Heavy Duty Contactor 3 Poles 50A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

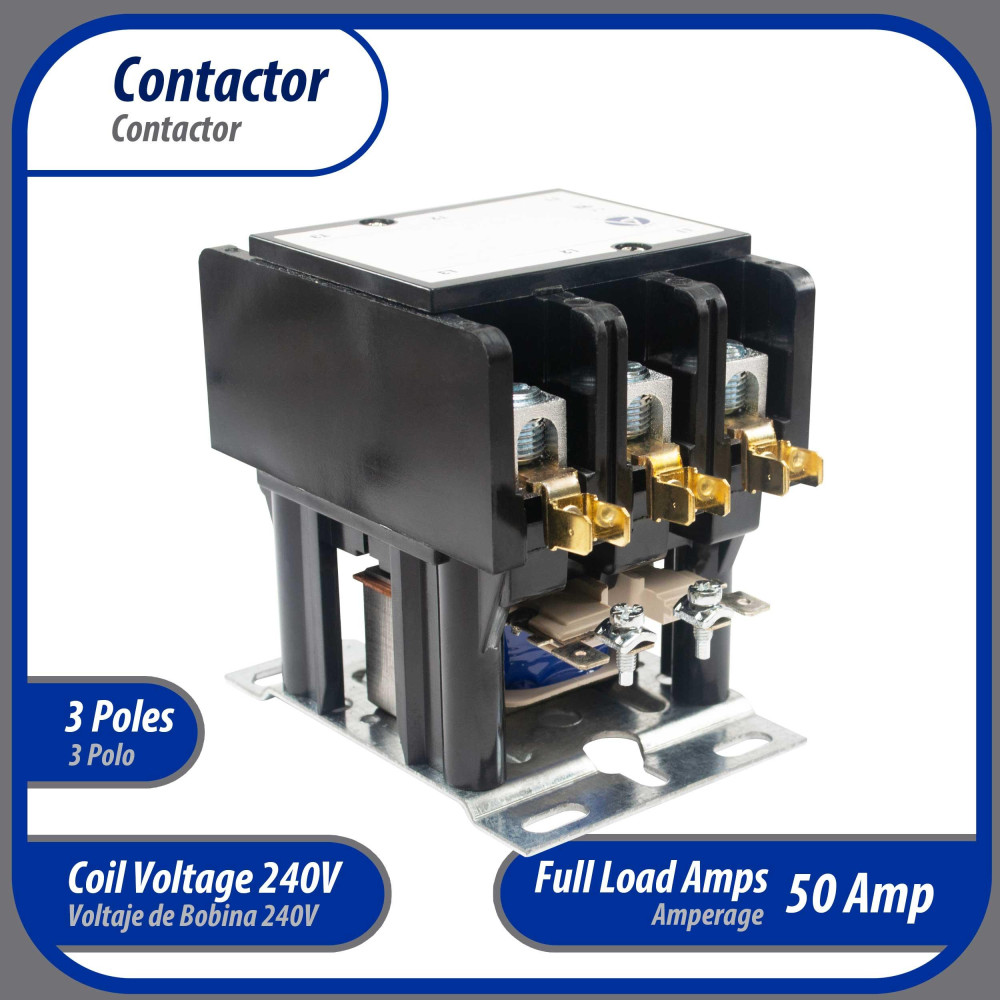

Application: Heavy-duty 3 Poles 50A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 50A full load (FLA). Locked rotor (LRA): 240/277V 300A, 480V 250A, 600V 200A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 180 Ohm (DC measurement, coil 208/240V). Switching capacity: 65A (resistive load: FLA 50A, LRA: 240/277V at 300A, 480V at 250A, 600V at 200A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C350C / 17537 / 42DF35AGBCG / C25DNJ350B / CR353FE3BB1 / GDP5032 / HCCY3XU05CJ303 Confirm cross-reference and specifications before replacement.

Weight : 1.63 LBR
Volume : 0.0311 FTQ
Model : APAC-350240
UPC-EAN : 814245021986

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

01-0132, 5B101, 6GNW7, 42DF35AG, 42DF35AGBCG, 49C089, 8910DPA53V09, 17537, 61462, 61463, 91533, 912305002, C3L50C, C25DNJ350B, C25FNF350B, C350C, CON-3/240/50, CR353FE3BB1, DP3050C1008, DP3050C5009, DP3050C5010, DP350240F, DP502403, DP503240, DPE503240, EC503240, GDP5032, HCCY3XU05CJ303, P282-0433, SE3712M, TMX350C2

SKU G0323.05032

Condition New

Data sheet

Product Feature: Application: Heavy-duty 3 Poles 50A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C350C / 17537 / 42DF35AGBCG / C25DNJ350B / CR353FE3BB1 / GDP5032 / HCCY3XU05CJ303 Confirm cross-reference and specifications before replac
Coil Data: Resistance 180 Ohm (DC measurement, coil 208/240V). Switching capacity: 65A (resistive load: FLA 50A, LRA: 240/277V at 300A, 480V at 250A, 600V at 200A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 3 Poles 50A full load (FLA). Locked rotor (LRA): 240/277V 300A, 480V 250A, 600V 200A, UL Certified E476929 for reliable operation and long service life.
Weight: 1.63 LBR
Volume: 0.0311 FTQ
Model: APAC-350240
UPC-EAN: 814245021986
