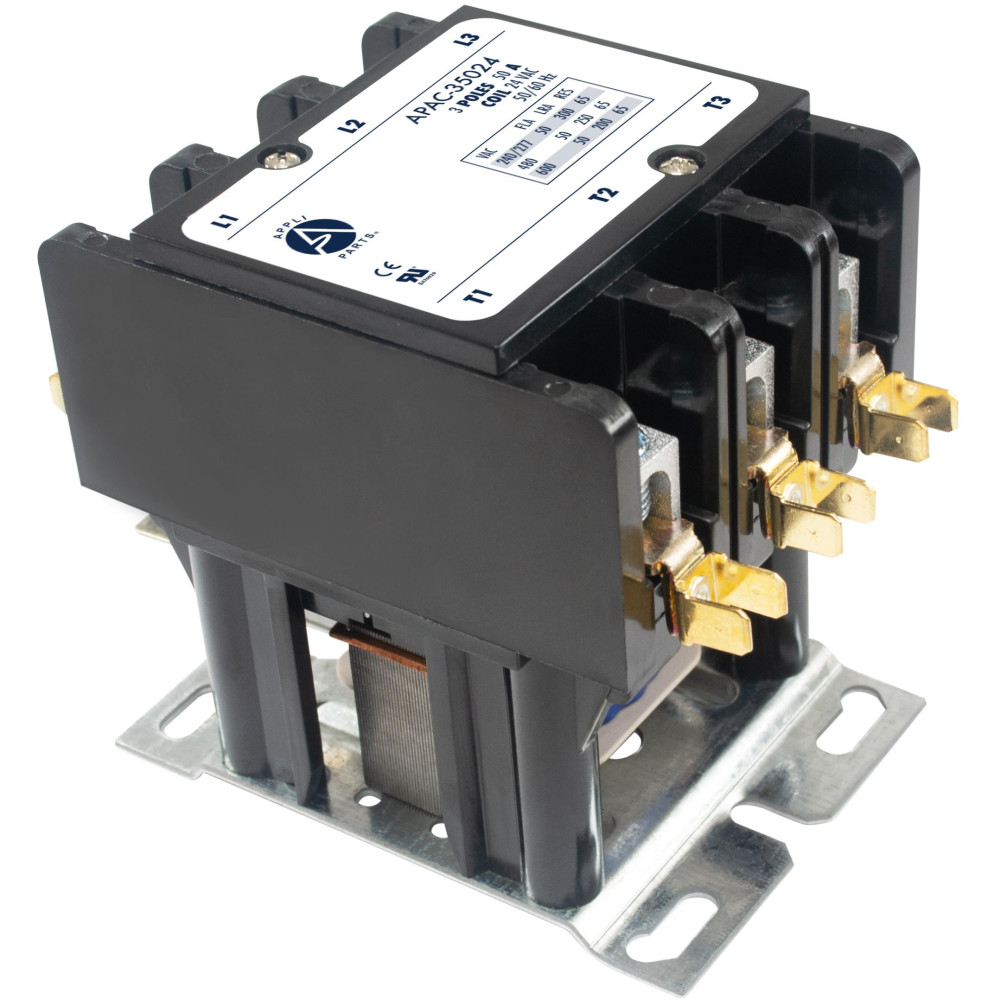

Appli Parts APAC-35024 Heavy Duty Contactor 3 Poles 50A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Price per Each
Appli Parts APAC-35024 Heavy Duty Contactor 3 Poles 50A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

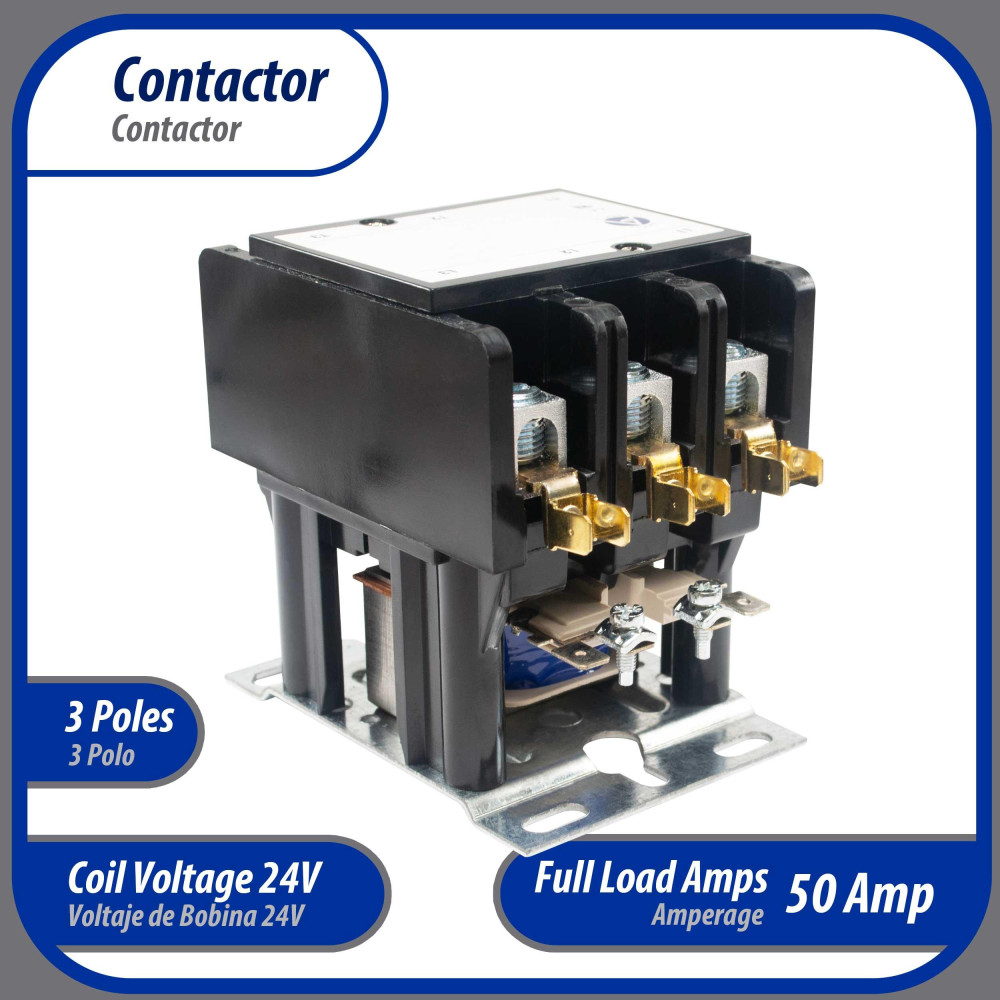

Application: Heavy-duty 3 Poles 50A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 50A full load (FLA). Locked rotor (LRA): 240/277V 300A, 480V 250A, 600V 200A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 2.4 Ohm (DC measurement, coil 24V). Switching capacity: 65A (resistive load: FLA 50A, LRA: 240/277V at 300A, 480V at 250A, 600V at 200A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C350A / 17535 / 42DF35AJBCH / C25DNJ350T / HCCY3XQ05CJ303 Confirm cross-reference and specifications before replacement.
Weight : 1.62 LBR
Volume : 0.0311 FTQ
Model : APAC-35024
UPC-EAN : 814245021979
Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929
This product replaces several part numbers, models and brands not limited to:
Fits: B1CH180A25A, B1CH180A25B, B1CH180E07225B, B1CH240A25A, B1CH240A25B, B2CH180A25A, BA-15C00ATAAA1A, BA-15C00BTAAA1A, BA-15C00BTBAA1A, BA-15E18ATAAA1A, BA-15E36ATAAA1A, BA-15E36BTAAA1A, BA-15E36NTAAA1A, BA-15E54ATAAA1A, BA-15E54ATBAA1A, BA-15E54NTAAA1A, BA-15E72ATAAA1A, BACB-T180AA, BACB-T180AB, BACB-T180E036AB, BACB-T240AA, BACB-T240AB, BACB-T240E036AB, BB-20C00ATAAA1A, BB-20C00ATDAA1A, BB-20E36ATAAA1A, BB-20E36NTAAA1A, BB-20E54BTAAA1A, BB-20E72ATAAA1A, BB-20E72ATBAA1A, BP180E18A2AAA1A, BP180E18P2AAC1, BP180E18P2ABB1A, BP180E18P2JAA1, BP180E36A2ATA1A, BP180E36B2HAA1A, BP180E36B2KAA1A, BP180E36H2EAA1A, BP180E36N2AAA1A, BP180E36N2BBA1A, BP180E36P2FAA1A, BP180E36Y2FAA1A, BP180E54A7AAA1, BP180E54C2FAB1A, BP180E54J2VAA1, BP180E54P5BAA1, BP180E72A2AAA1, BP180E72B2FAA1A, BP180E72P2EAA1A, BP180E72S2DZZ10001, BP240E36A2BAA1, BP240E54P4AAA1, BP240E72P4BBC1, BQ240C00B2ATS1A, BQ240C00C2AAA1A, BQ240E36A2AAA1A, BQ240E36A2AAA2, BQ240E36A2BAB1A, BQ240E36N2BBA1A, BQ240E54A7AAA2, BQ240E54N2AAA2, BQ240E72A2BAC1A, BQ240E72A7AAA1, BQ240E72B2AAA1A, BQ240E72N2AAA1A, BQ240E72P2AAA1A, CBBB-T180, CBBB-W180, D1CV300A25A, D1CV300A25B, D1CV300N24025A, D1CV300N24025B, D1CV300N24025C, D1CV300N24046A, D1CV300N24046B, D1CV300N24046C, D1CV300N24058A, D1CV300N24058B, D1CV300N24058C, D1CV300N24058D, D1CV300N32025A, D1CV300N32025B, D1CV300N32025C, D1EG150N16525B, D1EG180N24025C, D1EG180N24025D, D1EG240N24025B, D1HG180N24025A, D1HG180N32025A, D2CG180N24025A, D2CG180N32025A, D2CG240N24025A, D3CE150A25B, D3CE150E03625MCB, D3CE150E03625MHB, D3CE150E03625MSB, D3CE150E05425MFA, D3CE150E05425MSA, D3CE150E05425MTA, D3CG150N16525A, D3CG150N16525MCA, D3CG150N16525MFA, D3CG150N16525MFC, D3CG150N16525MSA, D3CG150N16525MSC, D3CG150N16525MTA, D3CG150N20025MFA, D3CG150N20025MGB, D3CG150N20025MGD, D3CG150N20025MSC, DBUC-T180N300A, DBUC-T180N300B, DBUC-T180N300C, DBUC-T180N300D, DBUC-T180N300E, DBUC-T180N400A, DBUC-T180N400B, DBUC-T180N400C, DBUC-T180N400D, DBUC-T180N400E, DBUC-T240N300A, DBUC-T240N300B, DBUC-T240N300C, DBUC-T240N300D, DBUC-T240N300E, DBUC-T240N400A, DBUC-T240N400B, DBUC-T240N400C, DBUC-T240N400D, DBUC-T240N400E, DH240E72G4DAA1, DM300E36A2AAA1A, DM300E54B2AAA1A, DM300E72A2AAA1A, DW-25C00ATAAA1A, DW-25E54NWAAA1A, DW-25N30ATAAA1A, DW-25N30BTAAA1A, DW-25N40ATAAA1A, DW-25N40BTAAA1A, E1FB090A25B, E1FB120A25B, E1RA090S25G, E2FB090A25B, EA090C00A2AAA1A, EA120C00A2AAA1A, EABA-T090SG, EABA-T090SH, EABA-W090SG, EABA-W090SH, EASE-T090A, EASE-T090B, EASE-T090C, EASE-T120A, EASE-T120B, EASE-T120C, EBSE-T090A, EBSE-T090B, EF-07C00ATAAA1A, EF-07C00ATAAC1A, EF-10C00ATAAA1A, EF-10C00ATAAC1A, H1CD060A25A, H1CE090A25A, H1CE120A25A, H1CE150A46, H1CE150A46TC, H1CE150A50A, H1CE150A58, H1CE150A58TC, H1CE180A46A, H1CE180A46B, H1CE180A46D, H1CE180A46E, H1CE240A25C, H1CE240A25D, H1CE240A25E, H1CE240A46D, H1CE240A46E, H1CE240A58A, H1CE240A58B, H1CE240A58D, H1CE240A58E, H1CS180A25A, H1CS240A25A, H1RA090S46A, H2CD060A06A, H2CE120A25A, H2CE120A25B, H2CE120A46C, H2CE120A58C, H2CE240A50E, H3CD060A25A, H3CE120A25TC, H3CE240A50B, H4CE180A25, H4CE240A25, HA120C00A2AAA1A, HA120C00A2AAC1A, HABA-T090SA, HABA-T090SA/09-1999, HABA-T090SG, HABA-W090SA, HABA-W090SA/09-1999, HABA-W090SG, HAHB-T090AA, HAHB-T120AA, HAHB-T240D, HAHB-T240E, HAHB-W180A, HAHB-W180B, HAHB-W180D, HAHB-W180E, HAHB-W240D, HAHB-W240E, HAHB-X240A, HAHB-X240B, HAHB-X240D, HAHB-X240E, HB180C00A2AAA1A, HB180C00A4AAA1A, HB180C00A4AAA1B, HB180C00A4BAA1A, HBHB-T120AA, HBHB-T120AB, HBHB-W120AC, HBHB-W120AD, HCHB-T180A, HCHB-T240A, HDHB-T090A, HDHB-T090B, HDHB-T090C, HDHB-T180A, HDHB-T240A, HF-07C00ATAAA1A, HF-07C00ATAAC1A, HF-07C00AWAAA1A, HF-07C00AWAAC1A, HF-07C00AXAAA1A, HF-07C00AXAAC1A, HF-10C00ATAAA1A, HF-10C00ATAAC1A, HL-15C00ATAAA1A, HL-15C00ATBAA1A, HL-20C00ATAAA1A, HL-20C00ATBAA1A, LA300C00A7AAA1A, PH-20C00ATTLD2, PH-20C00AWAAA2, S23AW24M7KDCBG, S32AW24N6KDZAG0001, S33AW24M6CCWAG0001, S33AW24P5CDVAG0001, S33AW24Q6KCVAG0001, S34AW24M5KDVCG0001, S34AW24T6CDWAG0001, SC060C00A7AAA1, T32AW14A1IANEH0001, T32AW14C2IBNBJ0001, T32AW14N1KDZBM0001, T32AW24A1ICPBM0001, T32AW24B1IANEH0001, T32AW24N1KDZBM0001, T32AW24O9CAYAG0001, T32AW24Q1CAPCL0001, T32AW24Q1CAPCM0001, T32AX14A1IANBJ0001, XA15C00ATAAB1, XA15C00ATGAA1, XA-15C00ATAAA1, XA-15C00ATAAB1, XA-15C00ATGAA1, XA-15C00NTAAA1, XA-15E18ATAAA1, XA-15E18ATBAA1, XA-15E18NTAAA1, XA-15E18NTBAA1, XA-15E18NTCZZ10001, XA-15E36ATAAA1, XA-15E36ATAAA3, XA-15E36ATCAA1, XA-15E36ATCZZ10001, XA-15E36ATSAA1, XA-15E36BTAAA1, XA-15E36DTAAA1, XA-15E36DTKZZ10001, XA-15E36DTKZZ10002, XA-15E36DTKZZ10003, XA-15E36HTAZZ10001, XA-15E36JTAAA1, XA-15E36NTAAA1, XA-15E54ATAAA1, XA-15E54ATAZZ10001, XA-15E54ATFAA1, XA-15E54AWAAA1, XA-15E54DTAAA1, XA-15E54DTFAA1, XA-15E54FWAAA1, XA-15E54JWKZZ10001, XA-15E54NTAAA1, XA-15E54NWDAA1, XA-15E54STAAA1, XA-15E54SWAAA1, XA-15E54TTAAA1, XA-15E72ATAAA1, XA-15E72HTKAA3, XA-15E72MWBZZ10001, XA-20C00ATAAA1, XA-20C00DTAAB1, XA-20C00NTAAA1, XA-20E18ATAAA1, XA-20E18ATAAA3, XA-20E18HTAAA1, XA-20E36ATAAA1, XA-20E36ATFAA1, XA-20E36ATHAA1, XA-20E36DTAAA1, XA-20E36DTAZZ10001, XA-20E36DTKBE1, XA-20E36DTKZZ10001, XA-20E36ETJBH1, XA-20E36ETLBH1, XA-20E36ETYZZ10001, XA-20E36FTFAA1, XA-20E36HTFAA3, XA-20E36NTAAA1, XA-20E36NTAZZ10001, XA-20E36NTDZZ10001, XA-20E36NTFZZ10001, XA-20E36RTAZZ10001, XA-20E36TTAZZ30001, XA-20E54ATAAA1, XA-20E54AWAAA1, XA-20E54AWFAA1, XA-20E54FWAAA1, XA-20E54KTAAA1, XA-20E54NTAAA1, XA-20E54NTAZZ10001, XA-20E54NWAAA1, XA-20E54RTAZZ10001, XA-20E54RTFAA1, XA-20E54STAAA1, XA-20E72ATAAA1, XA-20E72LTTZZ30001, XA-20E72NTAAA1, XA-20E72NTLZZ10001, XA-20E72SWAAA1, XA-20E72TTAAA1, Y13AC02M1KDBCF, Y13AN22A5IAABBA, Y13AN42E6KDABAA, Y13AN42E6KDFBAA, Y13BC02C5OBNBBA, Y13BN22A5IBKBBA, Y13BN42A6ICNAAA, Y13BS42A7MDEBEA, Y13EN42A5IDNBAA, Y13EN42A5MANABA, Y13EN42C5MANDAA, Y14AN72C6ODMBAA, Y14DX12A6EDNBAA, Y14EC02A6IBNBBA
Data sheet
- Product Feature
- Application: Heavy-duty 3 Poles 50A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C350A / 17535 / 42DF35AJBCH / C25DNJ350T / HCCY3XQ05CJ303 Confirm cross-reference and specifications before replacement.
- Coil Data: Resistance 2.4 Ohm (DC measurement, coil 24V). Switching capacity: 65A (resistive load: FLA 50A, LRA: 240/277V at 300A, 480V at 250A, 600V at 200A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 3 Poles 50A full load (FLA). Locked rotor (LRA): 240/277V 300A, 480V 250A, 600V 200A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 1.62 LBR
- Volume
- 0.0311 FTQ
- Model
- APAC-35024
- UPC-EAN
- 814245021979
