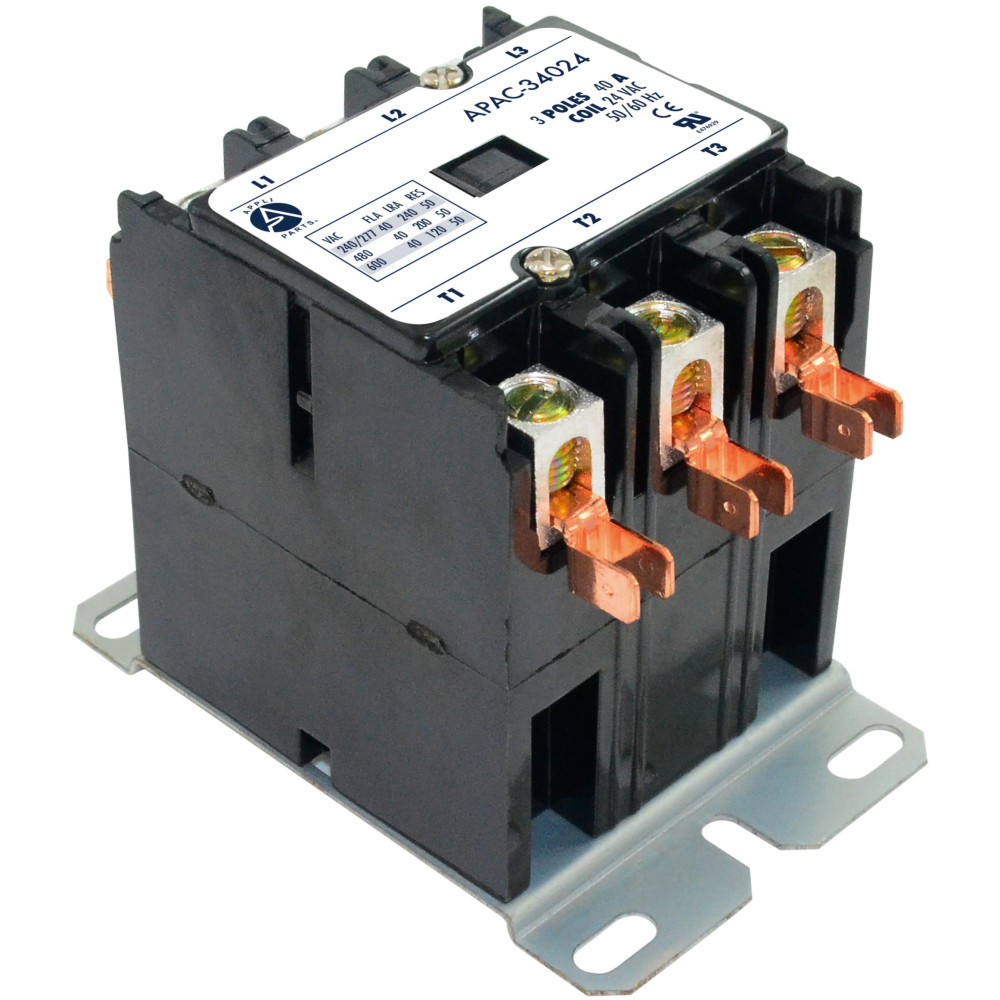

Appli Parts APAC-34024 Heavy Duty Contactor 3 Poles 40A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Price per Each
Appli Parts APAC-34024 Heavy Duty Contactor 3 Poles 40A 24V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 3 Poles 40A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.

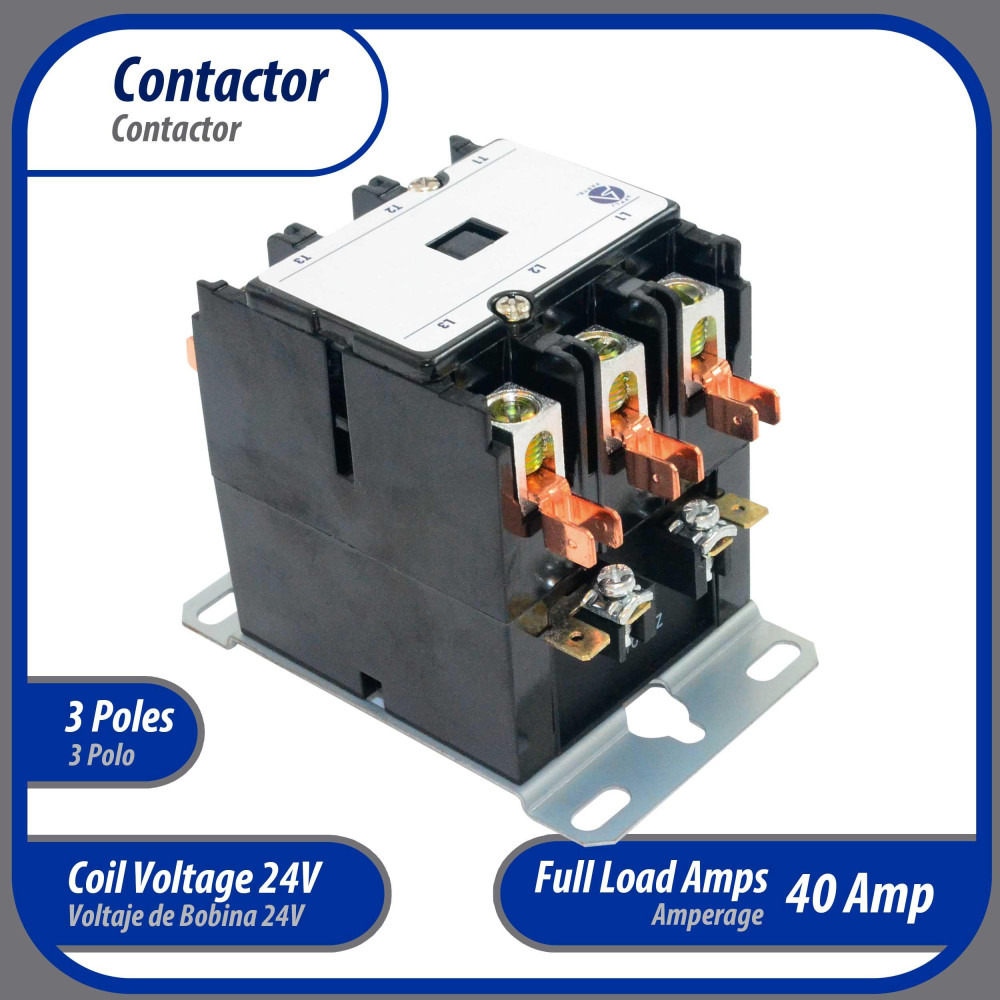

Ratings: 3 Poles 40A full load (FLA). Locked rotor (LRA): 240/277V 240A, 480V 200A, 600V 120A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 7 Ohm (DC measurement, coil 24V). Switching capacity: 50A (resistive load: FLA 40A, LRA: 240/277V at 240A, 480V at 200A, 600V at 120A). Nominal Inrush 65VA at 50Hz / 60VA at 60Hz, Nominal Sealed 7.5VA at 50Hz / 6VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C340A / 17435 / 42CF35AJBCE / 453AD3HBB / 91431 / C25DNF340T / GDP4030 / HCCY3XQ04CJ303 Confirm cross-reference and specifications before replacement.
Weight : 0.97 LBR
Volume : 0.01880787 FTQ
Model : APAC-34024
UPC-EAN : 814245021955
Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929
This product replaces several part numbers, models and brands not limited to:
01-0127, 3RT2035-1AC20, 5KAL9, 6GNX2, 42CF35AJ, 49C084, 90-170, 8910DPA43V14, 61445, 91431, C25DNF340T, C340A, CTR02577, CTR1349, DP3040A5003, DP40243, DP40324, DPE40324, EC40324, P282-0431A, TMX340A2
Fits: 2A6H8030A1000AA, 2A6H8030A1000AB, 2A6H8030B1000AA, 2A6H8036A1000AA, 2A6H8036A1000AB, 2A6H8036B1000AA, 2A6H8048A1000AA, 2A6H8048A1000AB, 2A6H8048B1000AA, 2A6H8060A1000AA, 2A6H8060A1000AB, 2A6H8060B1000AA, 2A7A8030A1000AA, 2A7A8030B1000AA, 2A7A8030C1000AA, 2A7A8036A1000AA, 2A7A8036B1000AA, 2A7A8036C1000AA, 2A7A8048A1000AA, 2A7A8048B1000AA, 2A7A8048C1000AA, 2A7A8060A1000AA, 2A7A8060B1000AA, 2A7A8060C1000AA, 2TTZ9030A1000AA, 2TTZ9030A1000AB, 2TTZ9030B1000AA, 2TTZ9030B1000BA, 2TTZ9030C1000AA, 2TTZ9036A1000AA, 2TTZ9036A1000AB, 2TTZ9036B1000AA, 2TTZ9036B1000BA, 2TTZ9036C1000AA, 2TTZ9048A1000AA, 2TTZ9048A1000AB, 2TTZ9048B1000AA, 2TTZ9048B1000BA, 2TTZ9048C1000AA, 2TTZ9060A1000AA, 2TTZ9060A1000AB, 2TTZ9060B1000AA, 2TTZ9060B1000BA, 2TTZ9060C1000AA, 2TWZ9030A1000AA, 2TWZ9030A1000AB, 2TWZ9030A1000AC, 2TWZ9030B1000AA, 2TWZ9030B1000BA, 2TWZ9030C1000AA, 2TWZ9036A1000AA, 2TWZ9036A1000AB, 2TWZ9036A1000AC, 2TWZ9036B1000AA, 2TWZ9036B1000BA, 2TWZ9036C1000AA, 2TWZ9048A1000AA, 2TWZ9048A1000AB, 2TWZ9048A1000AC, 2TWZ9048B1000AA, 2TWZ9048B1000BA, 2TWZ9048C1000AA, 2TWZ9060A1000AA, 2TWZ9060A1000AB, 2TWZ9060A1000AC, 2TWZ9060B1000AA, 2TWZ9060B1000BA, 2TWZ9060C1000AA, 4A6Z0024A1000BB, 4A6Z0048A1000BA, 4A6Z0060A1000CA, 4A7Z0048A1000BA, 4A7Z0048B1000AA, 4A7Z0060A1000AA, 4TTZ0024A1000AA, 4TTZ0024A1000AB, 4TTZ0024A1000CA, 4TTZ0036A1000AA, 4TTZ0036A1000AB, 4TTZ0036A1000CA, 4TTZ0036B1000AA, 4TTZ0048A1000AA, 4TTZ0048A1000CA, 4TTZ0048B1000AA, 4TTZ0060A1000AA, 4TTZ0060A1000CA, 4TWZ0024A1000AA, 4TWZ0024A1000AB, 4TWZ0024A1000AC, 4TWZ0024A1000CA, 4TWZ0036A1000AA, 4TWZ0036A1000AB, 4TWZ0036A1000AC, 4TWZ0036A1000CA, 4TWZ0036B1000AA, 4TWZ0048A1000AA, 4TWZ0048A1000CA, 4TWZ0048B1000AA, 4TWZ0060A1000AA, 4TWZ0060A1000CA, 6H6048A100A0, 40RUAA25AA5A, 40RUAA28AA5A, 50XCA06AAPD5AD0, 50XCA06AAPD6AE0, 50XCA06AAPE5AE0, 50XCA06AAPE6AE0, CGA120B10VFA, PA1HEA072000AAAA, PA1HEA072000ABAA, PA1HEA090000AAAA, PA1HEA090000ABAA, PA1HEA120000AAAA, PA1HEA120000ABAA, PA1HPA072000AAAA, PA1HPA072000ABAA, PA1HPA090000AAAA, PA1HPA090000ABAA, PA1HPA120000AAAA, PA1HPA120000ABAA, PA1SEA090000AAAA, PA1SEA102000AAAA/Serial:1801G, PA1SEA120000AAAA/Serial:1801G, PA1SPA090000AAAA/Serial:1801G, PA1SPA102000AAAA/Serial:1801G, PA1SPA120000AAAA/Serial:1801G, PF1AEB072000AAGC, PF1AEB072000ABGC, PF1AEB090000AAGC, PF1AEB090000ABGC, PF1AEB120000AAGC, PF1AEB120000ABGC, PF1AJB072000AAGC, PF1AJB072000ABGC, PF1AJB090000AAGC, PF1AJB090000ABGC, PF1APB072000AAGC, PF1APB072000ABGC, PF1APB090000AAGC, PF1APB090000ABGC, PF1APB120000AAGC, PF1APB120000ABGC, PF1BEH090090AAGC, PF1BEH090090ABGC, PF1BEH120120ABGC, PF1BJH090090AAGC, PF1BJH090090ABGC, PH1SEA090000AAAA, PH1SPA090000AAAA/Serial:1801G, TTA085AD00DL, TTA100AD0SDL, TTA100AD0TFA, TTA100AD0UFA, TTA100AD00EA, TTA100AD00FA, TTA120A40RFA, TTA120AK0SDL, TTA120AK00EA, TTA120AW0SDL, TTA120AW00DA, TTA180B30TFA, TTA180B30UFA, TTA180B300FA, TTA200BD0WFA, TTA200BD0WFB, TTA240B40RFA, TTA240B40UFB, TTA240B40WFB, TTA240BK0WFA, TTA240BW0TFA, TTA240FW0TAA, TWA090A30SDL, TWA090A30SEA, TWA090A30SFB, TWA090A300DL, TWA090A300EA, TWA100AD0SDL, TWA100AD0SFA, TWA100AD0SFB, TWA100AD00EA, TWA100AD00FA, TWA120A40SDL, TWA120A40SFB, TWA120A400DA, TWA120A400DL, TWA120A400EB, TWA120A400FA, TWA120A400FB, TWA120AW0SDA, TWA180B30SDA, TWA180B30SEA, TWA180B300DL, TWA180B300FA, TWA200BD00FA, TWA240B40SEA, TWA240B40SFA, TWA240B40SFB, TWA240B400EA, TWA240B400EB, TWA240B400FB, TWA240B400FC, TWA240BW0SEB, TWA240BW00DA, TWA240BW00FA, TWA240BW00FB, WCZ060F100BC, WCZ060F300BD
Data sheet
- Product Feature
- Application: Heavy-duty 3 Poles 40A 24V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C340A / 17435 / 42CF35AJBCE / 453AD3HBB / 91431 / C25DNF340T / GDP4030 / HCCY3XQ04CJ303 Confirm cross-reference and specifications before
- Coil Data: Resistance 7 Ohm (DC measurement, coil 24V). Switching capacity: 50A (resistive load: FLA 40A, LRA: 240/277V at 240A, 480V at 200A, 600V at 120A). Nominal Inrush 65VA at 50Hz / 60VA at 60Hz, Nominal Sealed 7.5VA at 50Hz / 6VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 18V, Minimum Drop-Out 6/15V, Maximum Voltage 30V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 3 Poles 40A full load (FLA). Locked rotor (LRA): 240/277V 240A, 480V 200A, 600V 120A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 0.97 LBR
- Volume
- 0.01880787 FTQ
- Model
- APAC-34024
- UPC-EAN
- 814245021955
