Appli Parts APAC-375120 Heavy Duty Contactor 3 Poles 75A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-375120 Heavy Duty Contactor 3 Poles 75A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$96.94
Price per Each

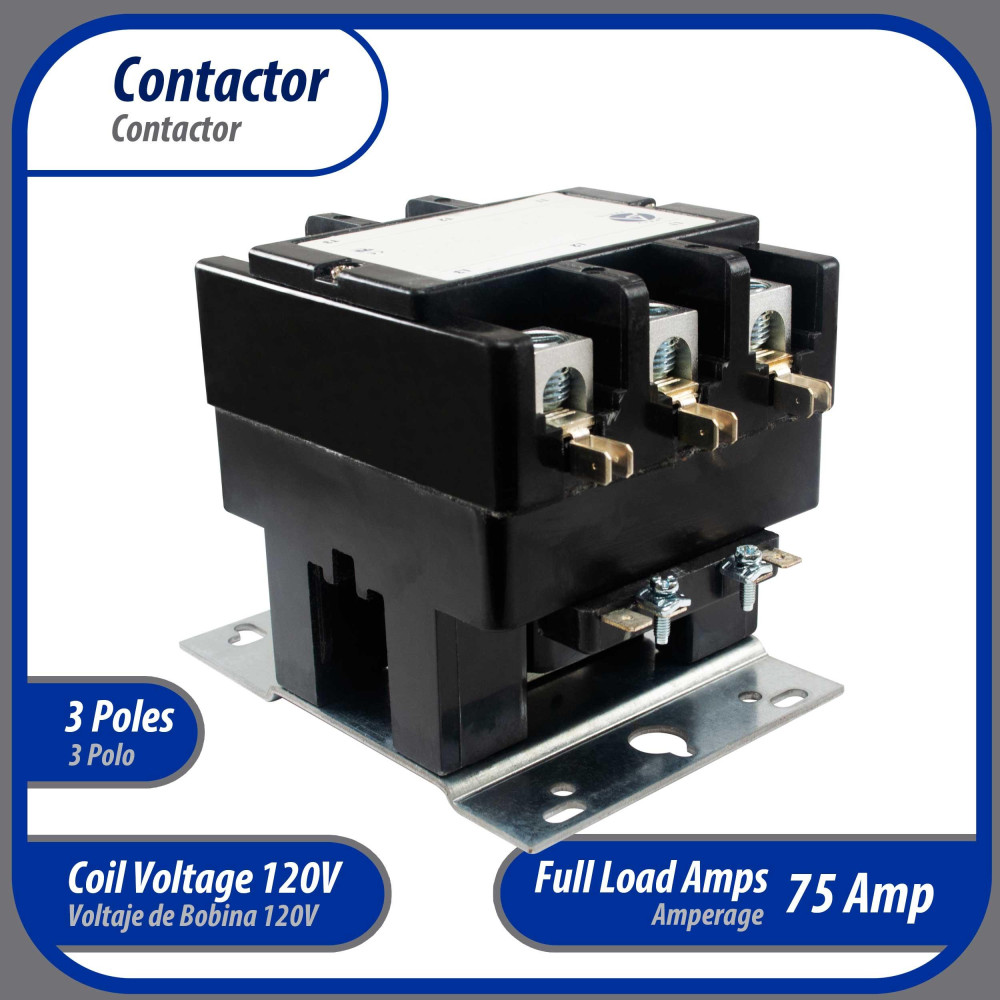

Appli Parts APAC-375120 Heavy Duty Contactor 3 Poles 75A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 3 Poles 75A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 75A full load (FLA). Locked rotor (LRA): 240/277V 450A, 480V 375A, 600V 300A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 16 Ohm (DC measurement, coil 120V). Switching capacity: 90A (resistive load: FLA 75A, LRA: 240/277V at 450A, 480V at 375A, 600V at 300A). Nominal Inrush 285VA at 50Hz / 240VA at 60Hz, Nominal Sealed 42VA at 50Hz / 27VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C375B / 17736 / 42FE35AF106 / C25FNF375A / CR353EG3BA1 / GDP7031 / HCCY3XT07CJ303 Confirm cross-reference and specifications before replacement.

Weight : 3.73 LBR
Volume : 0.05598958 FTQ
Model : APAC-375120
UPC-EAN : 814245022099

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

42FE35AF, 42FE35AF106, 56JY08, 8910DPA73V02, 8910PO3, 17736, 912307501, C3L75B, C25FNF375A, C375B, CON-3/120/75, CR353EG3BA1, CTR02583, DP3075B1006, DP3075B5007, DP3075B5016, DP375120F, DP751203, DPE753120, EC753120, GDP7031, HCCY3XT07CJ303, HN53HG120, SE3719M, TMX375B2

SKU G0323.7531

Condition New

Data sheet

Product Feature: Application: Heavy-duty 3 Poles 75A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C375B / 17736 / 42FE35AF106 / C25FNF375A / CR353EG3BA1 / GDP7031 / HCCY3XT07CJ303 Confirm cross-reference and specifications before replac
Coil Data: Resistance 16 Ohm (DC measurement, coil 120V). Switching capacity: 90A (resistive load: FLA 75A, LRA: 240/277V at 450A, 480V at 375A, 600V at 300A). Nominal Inrush 285VA at 50Hz / 240VA at 60Hz, Nominal Sealed 42VA at 50Hz / 27VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 3 Poles 75A full load (FLA). Locked rotor (LRA): 240/277V 450A, 480V 375A, 600V 300A, UL Certified E476929 for reliable operation and long service life.
Weight: 3.73 LBR
Volume: 0.05598958 FTQ
Model: APAC-375120
UPC-EAN: 814245022099
