Appli Parts APAC-360240 Heavy Duty Contactor 3 Poles 60A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-360240 Heavy Duty Contactor 3 Poles 60A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Reviews (0) Add a review

$84.53
Price per Each

Appli Parts APAC-360240 Heavy Duty Contactor 3 Poles 60A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

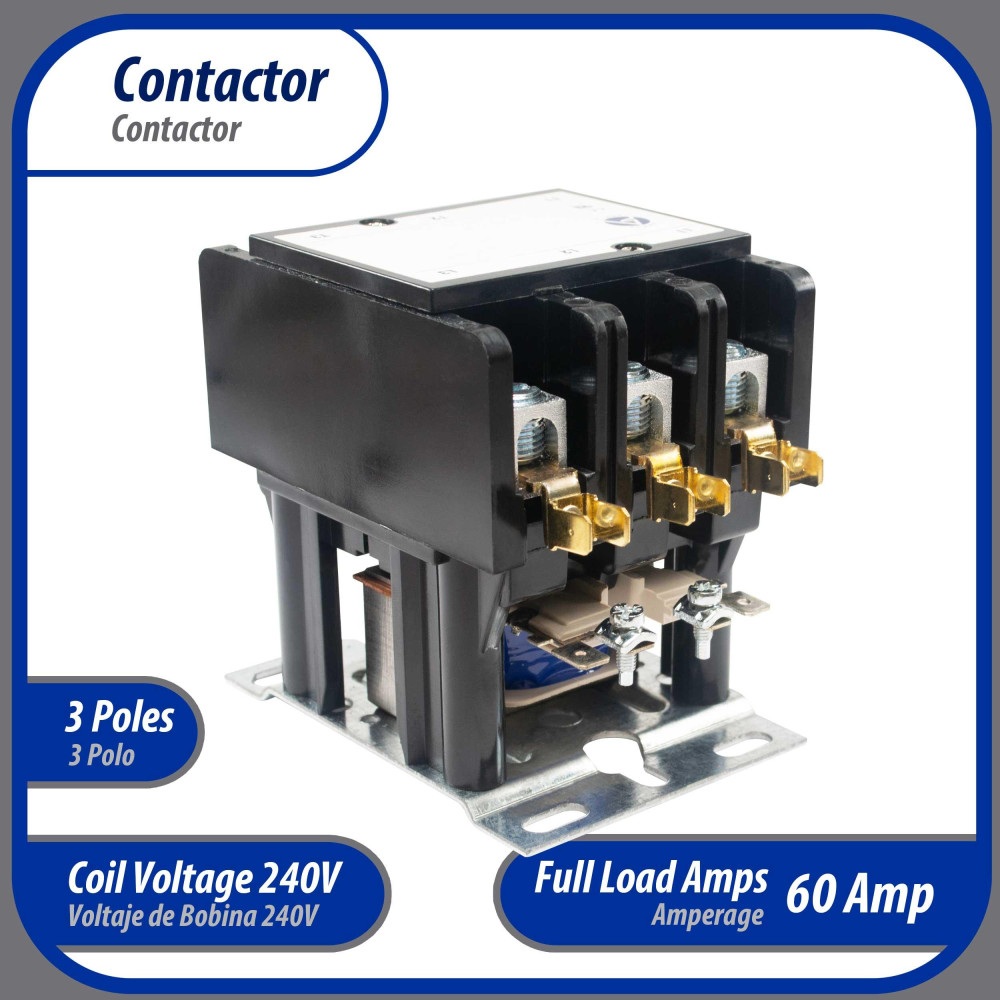

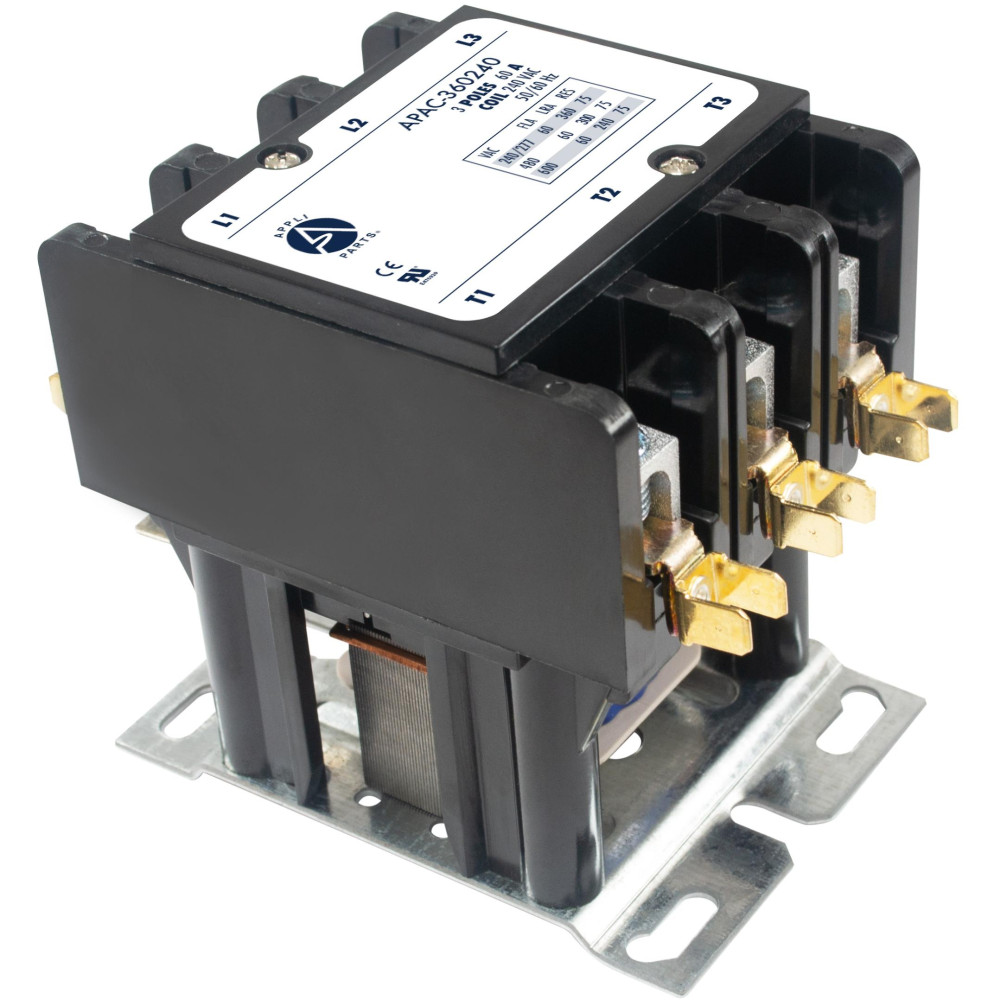

Application: Heavy-duty 3 Poles 60A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 60A full load (FLA). Locked rotor (LRA): 240/277V 360A, 480V 300A, 600V 240A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 180 Ohm (DC measurement, coil 208/240V). Switching capacity: 75A (resistive load: FLA 60A, LRA: 240/277V at 360A, 480V at 300A, 600V at 240A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C360C / 17637 / 42EF35AGBCJ / 91633 / C25FNF360B / CR353FF3BB1 / GDP6032 / HCCY3XU06CJ303 Confirm cross-reference and specifications before replacement.

Weight : 1.63 LBR
Volume : 0.0311 FTQ
Model : APAC-360240
UPC-EAN : 814245022075

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

01-0134, 2CF96, 42EF35AG, 42EF35AGBCJ, 49C092, 8910DPA63V09, 17637, 61472, 61473, 91633, 912306002, C3L60C, C25FNF360B, C360C, CON-3/240/60, CR353FF3BB1, DP3060C1007, DP3060C5008, DP3060C5009, DP360240F, DP602403, DPE603240, EC603240, GDP6032, HCCY3XU06CJ303, HN53HF212, SE3715M, TMX360C2

SKU G0323.6032

Condition New

Data sheet

Product Feature: Application: Heavy-duty 3 Poles 60A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C360C / 17637 / 42EF35AGBCJ / 91633 / C25FNF360B / CR353FF3BB1 / GDP6032 / HCCY3XU06CJ303 Confirm cross-reference and specifications befor
Coil Data: Resistance 180 Ohm (DC measurement, coil 208/240V). Switching capacity: 75A (resistive load: FLA 60A, LRA: 240/277V at 360A, 480V at 300A, 600V at 240A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Ratings: 3 Poles 60A full load (FLA). Locked rotor (LRA): 240/277V 360A, 480V 300A, 600V 240A, UL Certified E476929 for reliable operation and long service life.
Weight: 1.63 LBR
Volume: 0.0311 FTQ
Model: APAC-360240
UPC-EAN: 814245022075
